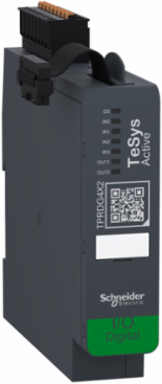

Schneider Electric TPRDG4X2 TeSys Island Digital IO Module, 4 Inputs, 2 Outputs, 24VDC
- MPN: TPRDG4X2
- PPN: SCH-TPRDG4X2
- UNSPSC: 39121521
CAD
$198.74
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
TeSys island digital IO module, 4 digital inputs 24V DC, 2 digital outputs 24V DC. Connected to a TPRBC bus coupler it is used for advanced control functions (TeSys avatars). It can be used to control external power switching devices when associated to a TPRPM power module. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC).
Features
- IO module providing 4 digital inputs and 2 digital outputs
- Operational only when connected to a bus coupler TPRBC
- Manages motors and other electrical loads up to 65 A (AC-3) / 37 kW/40 hp
- All adjustments and setting are digitized, no mechanical dials or dip switches
- Embedded Cybersecurity (Achilles Level 2)
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Indonesia |
|---|---|
| Depth | 114 mm |
| Weight | 244 g |
|---|
Complementary Attributes
| Uimp Rated Impulse Withstand Voltage | 0.5 kV IEC 61010-1 |
|---|
| Us Rated Supply Voltage | 24 V DC supplied by the bus coupler |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Electromagnetic Compatibility | electrostatic discharge immunity test, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2, radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3, fast transients immunity test, level 3, 2 kV, conforming to EN/IEC 61000-4-4, surge immunity test (common mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5 |
| Local Signalling | 1 LED (green/red) for DS (device status)1 LED (green) for I0 (input 1 status), 1 LED (green) for I1 (input 2 status), 1 LED (green) for I2 (input 3 status), 1 LED (green) for I3 (input 4 status), 1 LED (green) for Q0 (output 1 status), 1 LED (green) for Q1 (output 2 status) |
| Connections Terminals | input/output circuit removable spring terminal block 8 0.2-2.5 mm² 24 AWG...14 AWG)rigidinput/output circuit removable spring terminal block 8 0.2-2.5 mm² 24 AWG...14 AWG)flexible without cable end, input/output circuit removable spring terminal block 8 0.25-2.5 mm² 22 AWG...14 AWG)flexible with cable end |
| Carbon Footprint Of The Distribution Phase A4 | 0.02444654188720066, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.1 kg CO2 eq., 0.08896994264507745 |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 3 kg CO2 eq., 2.59927530667566 |
| Local Publishable Date | 2026-06-27 |
| Device Type | Relay, Control & Measurement - measuring, monitoring device |
| Traceability | No |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1904009EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1911 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Current Consumption | 10 mA |
| Energy Efficiency Optimized | False |
| Mounting Mode | horizontal and vertical 35 mm symmetrical rail) |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | digital IO module |
| Protective Treatment | TC |
| Returnability | Yes |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 6 kg CO2 eq. |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Data Source | extrapolated product |
| Width Nominal | 25 mm |
| Customs Code | 8538908180 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Pep End Of Validity Date Calculated | 0012-03-19 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Function Of Module | control of 4 sink/source digital inputs with common point, control of 2 sink/source digital outputs with common point |
| Response Time | 5 ms at 24 V digital input, 5 ms at 24 V digital output |
| Certificate Agency | UL, CSA, EAC (pending) |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.25161453069148004, 0.3 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 3 kg CO2 eq., 3.395861167700603 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | No |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Short Name | TPRDG |
| Fire Resistance | 960 °C UL 94 |
| Power Dissipation In W | 0.5 W maximum |
| Product Name | TeSys island |
| Protection Type | 1 external fuse, 0.5 A fast each output |
| Range | TeSys |
| Shock Resistance | 15 gn 11 ms) IEC 60068-2-27 |
| Sustainable Packaging | No |
| Vibration Resistance | 1.5 mm peak to peak 3-13 Hz) IEC 60068-2-61 gn 13-200 Hz) IEC 60068-2-6 |
| Database Version | 2024-01 |
| Height Nominal | 118 mm |
| Nbr. Of Units In Pkg. | 1 |
| Halogen Free Status | Halogen free plastic parts product |
| Functional Unit Description | Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.TeSys island is designed to switch, protect, and manage motors and other electrical loads up to 80 (AC3) in an electrical control panel for 10 years. |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 49 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Halogene Performance | Halogen free plastic parts product |
| Mercury Free | Yes |
| Ambient Air Temperature For Operation | -10-60 °C-10-60 °C |
| Circularity Profile | ENVEOLI1904009EN |
| Eu Rohs Directive | Compliant By Exemption |
| Ip Degree Of Protection | IP20 |
| Packaging Made With Recycled Cardboard | Yes |
| Product Compatibility | TPRBC bus couplerTPRPM power module |
| Relative Humidity | 5-95 % |
| Pep Verification Date | 0007-03-19 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 6.3601674896000215 |
| Ambient Air Temperature For Storage | -25-70 °C-25-70 °C |
| Environmental Disclosure | ENVPEP1904009_V3-EN |
| Halogen Content Performance | Halogen free plastic parts product |
| Operating Altitude | 0...6561.68 ft (0...2000 m) without derating |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1904009_V3-EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Product Or Component Type | digital IO module |
|---|
ETIM
| ETIM 8 | EC001599 |
|---|---|
| ETIM 10 | EC001599 |
| ETIM 9 | EC001599 |
|---|
Output Attributes
| Discrete Output Current | 0.5 A maximum |
|---|---|
| Discrete Output Number | 2 isolated with common point |
| Discrete Output Logic | source or sink |
|---|---|
| Discrete Output Voltage | 24 V DC 19.2...28.8 V) |
Input Attributes
| Discrete Input Current | 7 mA 24 V |
|---|---|
| Discrete Input Number | 4 isolated with common point conforming to IEC 61131-2 Type 1 |
| Input Impedance | 3.43 kOhm |
| Discrete Input Logic | positive or negative, 0...5 V, 15...28.8 V |
|---|---|
| Discrete Input Voltage | 24 V DC 19.2...28.8 V) |
Overview Attributes
| Device Presentation | IO module providing 4 digital inputs and 2 digital outputs, enabling advanced control functions in a TeSys island system, control of third parties power devices when associated to a TPRPM power module, operational only when connected to a bus coupler TPRBC |
|---|
