Schneider Electric TPRSM001 TeSys Island SIL Interface Module 24V DC, 2 Inputs, 1 Output
- MPN: TPRSM001
- PPN: SCH-TPRSM001
- UNSPSC: 39121521
CAD
$257.46
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

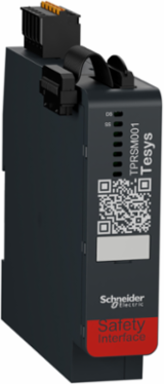

TeSys island SIL interface module, 2 inputs, 1 output. Connected to a TPRBC bus coupler, it allows integration into safety related systems conforming to ISO 13849-1. It is used in connection to one or several SIL motor starter TPRSS. Two isolated switching inputs with common point, 0-24V DC. One relay type output, 1NO, instantaneous opening, potential free. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC).
Features
- Monitoring of the mains voltage powering the island
- Reporting of the voltage to the bus coupler to enable power & energy monitoring
- Manages motors and other electrical loads up to 65 A (AC-3) / 37 kW/40 hp
- All adjustments and setting are digitized, no mechanical dials or dip switches
- Embedded Cybersecurity (Achilles Level 2)
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Indonesia |
|---|---|
| Depth | 114 mm |
| Weight | 270 g |
|---|
Complementary Attributes
| Ue Rated Operational Voltage | input/output circuit 24 V DC |
|---|---|
| Uimp Rated Impulse Withstand Voltage | 2 kV input/output circuit IEC 60947-1 |
| Ui Rated Insulation Voltage | input/output circuit 50 V |
|---|---|
| Us Rated Supply Voltage | 24 V DC supplied by the bus coupler |
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Electromagnetic Compatibility | electrostatic discharge, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2, radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3, fast transients immunity test, level 3, 2 kV, conforming to EN/IEC 61000-4-4, surge immunity test (common mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5 |
| Safety Function | safe stop: category 0 conforming to IEC 60204-1, safe stop: category 1 conforming to IEC 60204-1 |
| Connections Terminals | control circuit removable spring terminal block 5 0.2-2.5 mm² 24 AWG...14 AWG)rigidcontrol circuit removable spring terminal block 5 0.2-2.5 mm² 24 AWG...14 AWG)flexible without cable end, control circuit removable spring terminal block 5 0.25-2.5 mm² 22 AWG...14 AWG)flexible with cable end |
| Carbon Footprint Of The Distribution Phase A4 | 0.02705150126862368, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.1 kg CO2 eq., 0.09845034636955291 |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 4 kg CO2 eq., 3.623257069469412 |
| Local Publishable Date | 2026-06-27 |
| Device Type | Relay, Control & Measurement - measuring, monitoring device |
| Traceability | No |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1904009EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1910 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Current Consumption | 10 mA |
| Energy Efficiency Optimized | False |
| Function Of Module | safe stop with 1NC or 2NC contacts monitoring |
| Overvoltage Category | III |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | SIL interface module |
| Protective Treatment | TC |
| Returnability | Yes |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 8 kg CO2 eq. |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Data Source | extrapolated product |
| Width Nominal | 25 mm |
| Customs Code | 8536504000 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Pep End Of Validity Date Calculated | 0012-03-19 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Local Signalling | 1 LED (green/red) for DS (device status), 1 LED (green/red) for SS (safe stop status) |
| Safety Level | SIL 2 conforming to IEC 61508 in single channel system architectureSILCL 2 conforming to IEC 62061 in single channel system architecture, PL = d category 2 conforming to ISO 13849-1 in single channel system architecture |
| Certificate Agency | UL, CSA, EAC (pending) |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.27842591510942466, 0.3 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 4 kg CO2 eq., 3.757715226553946 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | No |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Short Name | TPRSM |
| Fire Resistance | 960 °C UL 94 |
| Mounting Mode | horizontal and vertical 35 mm symmetrical rail) |
| Power Dissipation In W | 0.7 W maximum |
| Product Name | TeSys island |
| Protection Type | external fuse, 8 A gG relay output |
| Range | TeSys |
| Shock Resistance | 15 gn 11 ms) IEC 60068-2-27 |
| Sustainable Packaging | No |
| Vibration Resistance | 1.5 mm peak to peak 3-13 Hz) IEC 60068-2-61 gn 13-200 Hz) IEC 60068-2-6 |
| Database Version | 2024-01 |
| Height Nominal | 118 mm |
| Nbr. Of Units In Pkg. | 1 |
| Halogen Free Status | Halogen free plastic parts product |
| Functional Unit Description | Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.TeSys island is designed to switch, protect, and manage motors and other electrical loads up to 80 (AC3) in an electrical control panel for 10 years. |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 49 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Halogene Performance | Halogen free plastic parts product |
| Mercury Free | Yes |
| Ambient Air Temperature For Operation | -10-60 °C-10-60 °C |
| Circularity Profile | ENVEOLI1904009EN |
| Eu Rohs Directive | Compliant By Exemption |
| Ip Degree Of Protection | IP20 |
| Packaging Made With Recycled Cardboard | Yes |
| Product Compatibility | TPRBC bus couplerTPRSS SIL motor starter |
| Relative Humidity | 5-95 % |
| Pep Verification Date | 0007-03-19 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 7.78490005877096 |
| Ambient Air Temperature For Storage | -25-70 °C-25-70 °C |
| Environmental Disclosure | ENVPEP1904009_V3-EN |
| Halogen Content Performance | Halogen free plastic parts product |
| Operating Altitude | 0...6561.68 ft (0...2000 m) without derating |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1904009_V3-EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Product Or Component Type | SIL interface module |
|---|
ETIM
| ETIM 8 | EC001601 |
|---|---|
| ETIM 10 | EC001601 |
| ETIM 9 | EC001601 |
|---|
Output Attributes
| Output Thermal Current | 8 A relay output |
|---|
| Output Type | relay instantaneous opening, 1 NO, potential free |
|---|
Input Attributes
| Input Protection Type | internal, electronic |
|---|---|
| Input Voltage | 15...28.8 V DC state 10...5 V DC state 0 |
| Input Type | isolated switching input safe stop |
|---|
Overview Attributes
| Device Presentation | implementation of a safe stop function for SIL motor starters TPRSS, safe stop operable for safety-related system conforming to ISO 13849-1, operational only when connected to a bus coupler TPRBC |
|---|
