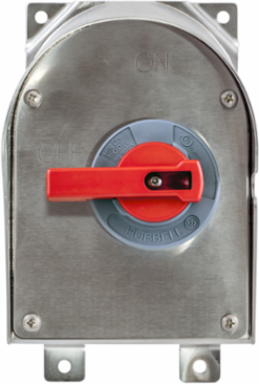

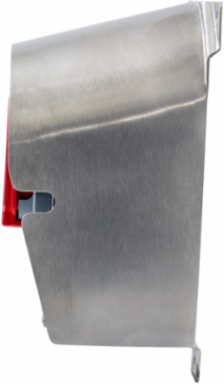

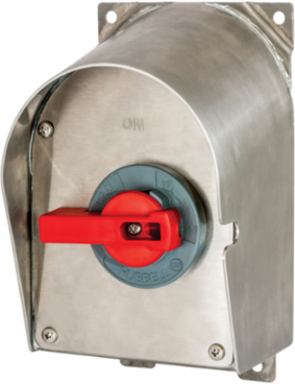

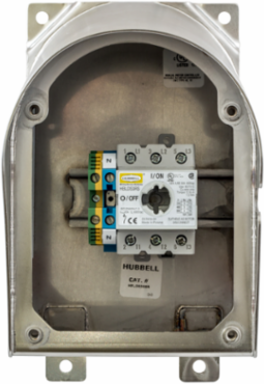

Hubbell Wiring Device-Kellems HBLDS3SSR Disconnect Switch 30A 600V AC Sloped Enclosure NEMA 4X Stainless Steel
- MPN: HBLDS3SSR
- UPC: 783585541549
- PPN: HBL-HBLDS3SSR
- UNSPSC: 39121521
CAD
$1624.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Disconnect Switches, Sloped Enclosure, 30A 600V AC, Non-Fused, NEMA 4X, Stainless Steel
Features
- Formed in nonporous 304 stainless steel
- IP69k and Type 4X,12K water ingress protection
- Certified by NSF for hygiene in food processing applications
- Highly visible red handle which meets OSHA Lockout/Tagout capabilities
- Accepts up to 2 Auxiliary contacts
Specifications
Key Specifications
- Country of Origin
- Poland
- Dimensions
- 8.6 in x 5.41 in x 4.92 in
- Length
- 8.6 in
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current & voltage;Electrical - Dielectric Voltage - Withstands 3000V AC minimum;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V0 Classification;Environmental - Operating Temperature - Max Continuous 75°C,Min Continuous -40°C w/o impact;Environmental - UV Resistance - All materials are UV stabilized;Mechanical - Impact Resistance - In accordance with UL 746C;Mechanical - Mounting - Stainless Steel - Feet are fixed;Mechanical - Product Identification - Identification and ratings are part of external label;Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions
- Current Rating
- 30
- Size
- 8.6 in x 5.41 in x 4.92 in
- Width
- 5.41 in
- General Literature Asset 1 Display Text
- Safety Product Guide
- General Literature Asset 3 Display Text
- Circuit-Lock® Motor Disconnects
- Dielectric Strength
- Withstands 3000V AC minimum
- Shape
- Sloped Top
- Class Code
- A16
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A16A260
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 4.967 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1
- Pallet - GTIN - Package
- 70783585541548
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Current / Amperage Rating30 A
Height4.92 in
Mounting MethodFeet are fixed
ApplicationLabelless
Enclosure TypeType 4X, IP69k
TypeDisconnect Switches
Engineering Drawing 1 Display TextHBLDS3SSR AutoCAD Drawing
General Literature Asset 2 Display TextIndustrial Solutions
Amperage Rating30 A
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
StyleHeavy Duty
Description - InvoiceSLOPED DISCONNECT, 30A UNFUSED, 4X, SS
Harmonization Code8536509025
MSDS FlagNo
SeriesNon-Fused
BOX SIZE8.500x10.000x9.700 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00783585541549
Case Weight4.916 lb.
Pallet Height42.500 in
Pallet Weight600.000 lb.
Certifications
- EU RoHS Indicator
- Contact Manufacturer
