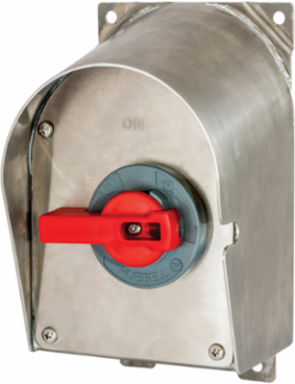

Hubbell Wiring Device-Kellems HBLDS3SSRVFD Disconnect Switch Sloped Enclosure 30A, NEMA 4X, 8.6 x 5.41 x 4.92 Inch
Hubbell Wiring Device-Kellems HBLDS3SSRVFD Disconnect Switch Sloped Enclosure 30A, NEMA 4X, 8.6 x 5.41 x 4.92 Inch
- MPN: HBLDS3SSRVFD
- UPC: 783585541563
- PPN: HBL-HBLDS3SSRVFD
- UNSPSC: 39121521
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1721.95/ EA
Description
Disconnect Switch Sloped Enclosure, 30A 600V AC, Non-Fused, NEMA 4X, with Aux Contact, Variable Frequency Drive
Features
- Formed in nonporous 304 stainless steel
- IP69k and Type 4X,12K water ingress protection
- Certified by NSF for hygiene in food processing applications
- Highly visible red handle which meets OSHA Lockout/Tagout capabilities
- Accepts up to 2 Auxiliary contacts
Specifications
- Amperage
- 30 A
- Short Circuit Current Rating
- 65kA RMS symmetrical
- Operating Temperature Range
- -40°C to 75°C
- Length
- 8.6 in
- Height
- 4.92 in
- Material
- 304 Stainless Steel
- Enclosure Rating
- NEMA 4X, IP69k, Type 4X, 12K
- Enclosure Screws Material
- Stainless Steel
- Handle Color
- Red
- Shaft Seal Material
- Molded Neoprene
- Compliance
- cULus Listed, NSF Certified
- UV Resistance
- UV stabilized
Voltage600 V AC
Dielectric Voltage Withstand3000 V AC minimum
Dimensions8.6 in x 5.41 in x 4.92 in
Width5.41 in
MountingFeet fixed
Enclosure TypeSloped
Enclosure Gasket MaterialNeoprene
Handle MaterialPBT
Shaft MaterialPBT
Auxiliary Contacts Capacity2
FlammabilityUL94-5VA, V0 Classification
Country of OriginPL
