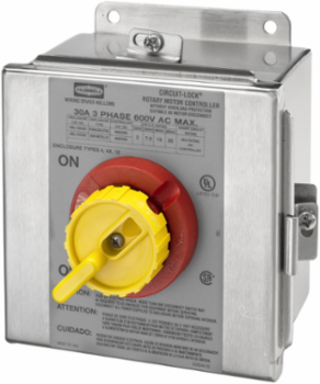

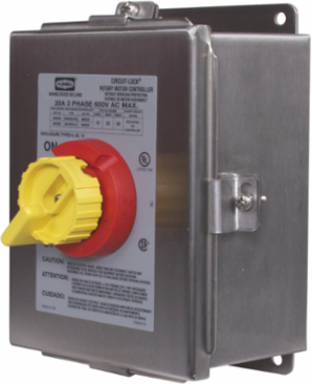

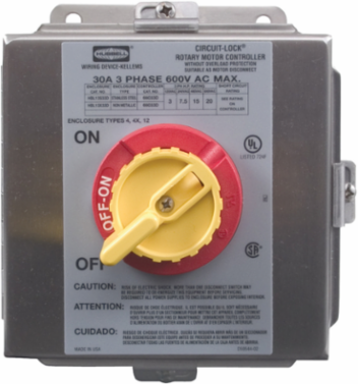

Hubbell Wiring Device-Kellems HBL13S33D Industrial Rotary Disconnect Switch, 30A 600V AC, NEMA 4X Enclosure, 6.75 x 6.96 x 4 Inch
- MPN: HBL13S33D
- UPC: 783585202723
- PPN: HBL-HBL13S33D
- UNSPSC: 39121521
CAD
$1156.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Switches and Lighting Controls, Industrial Grade, Rotary Switches, Motor Disconnects, Three Pole, 30A 600V AC, Back and Side Wired, Stainless, NEMA 4X Enclosure with Switch
Features
- Optional Side Guard for close wall applications
- Hinged Cover with removable continuous pin
- Stainless steel enclosure for chemical and corrosion resistant
- Rotary Operator
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 6.75 in x 6.96 in x 4 in
- Industry Standard(s)
- CSA-C22.2 No.14 Industrial Control File LR-46186;UL 508, Industrial Control File #E70402
- Performance
- Electrical - Dielectric Voltage - Min. 2,200V AC minimum for 1 minute;Electrical - Electrical Life - Min. 6,000 Cycles at rated switch load;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - UL94HB/VO;Environmental - Operating Temperature - Max. 75°C,Min. -40°C continuous w/o impact;Mechanical - Mechanical Life - Min. 10,000 minimum cycles;Mechanical - Switch Rating - 25 inch pounds;Mechanical - Terminal Accommodations - #10 AWG Max;Mechanical - Terminal Torque - 20 inch pounds;Mechanical - Wire Type - Solid and stranded copper wire only
- Current Rating
- 30
- Size
- 6.75 in x 6.96 in x 4 in
- Standard
- CSA-C22.2 No.14 Industrial Control File LR-46186;UL 508, Industrial Control File #E70402
- Weight
- 5.8 lb.
- Engineering Drawing 1 Display Text
- HBL13S33D AutoCAD Drawing
- General Literature Asset 2 Display Text
- Pulp & Paper Solutions
- Amperage Rating
- 30 A
- Dielectric Strength
- 2,200V AC minimum for 1 minute
- Environmental Conditions
- Indoor and Outdoor
- Operating Cycles
- 10,000 Cycles Minimum
- Phase
- Three Phase
- Wattage
- 18000
- Description - Invoice
- 30A 600V 3P RTRY DISC SW 4X SS
- Harmonization Code
- 8536509025
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 5.800 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585202722
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Current / Amperage Rating30 A
Height4 in
Length6.75 in
ApplicationRotary
Enclosure TypeNEMA 4X
Special FeaturesRotary Operator
TypeDisconnect Switches
Width6.96 in
General Literature Asset 1 Display TextCircuit-Lock® Motor Disconnects
General Literature Asset 3 Display TextPULP & PAPER SOLUTIONS
ConnectivityPressure Terminal Screws
Display SizeStandard Sized Product
Load CapacityInductive
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
StyleStandard Duty
Class CodeA16
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA16A260
SeriesNon-Fused
BOX SIZE7.000x9.900x8.700 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00783585202723
Case Weight5.800 lb.
Lowest Level UOMEach
Pallet Height42.000 in
Pallet Weight765.600 lb.
Certifications
- EU RoHS Indicator
- No
