Telemecanique Sensors SR3XT141BD Zelio Logic Discrete I/O Extension Module 14 I/O, 24V DC
- MPN: SR3XT141BD
- PPN: SCH-SR3XT141BD
CAD
$166.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description

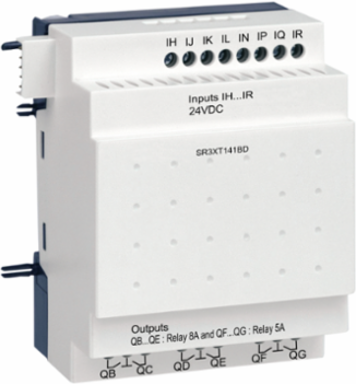

This Zelio Logic SR3 discrete I/O extension module smart relays uses a supply voltage of 24V direct current. It has 14 inputs / outputs contact with screw-clamp terminals. It enables simple ladder programming, adapted for non-specialists.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Zelio Logic
Product Or Component Typediscrete I/O extension module
Complementary
- Contacts Type And Composition
- NO relay output
- Discrete Input Type
- resistive
- Output Thermal Current
- 5 A for 2 outputs relay output || 8 A for 4 outputs relay output
- Number Or Control Scheme Lines
- 120-120 ladder
- Clock Drift
- 12 min/year 0-55 °C
- Current State 1 Guaranteed
- >= 1.2 mA IB...IG used as discrete input circuit) || >= 2.2 mA I1...IA and IH...IR discrete input circuit)
- Net Weight
- 0.22 kg
- Voltage State 0 Guaranteed
- <= 5 V I1...IA and IH...IR discrete input circuit || <= 5 V IB...IG used as discrete input circuit
- Electrical Durability
- AC-15 500000 cycles 230 V, 0.9 A relay output IEC 60947-5-1 || AC-12 500000 cycles 230 V, 1.5 A relay output IEC 60947-5-1 || DC-13 500000 cycles 24 V, 0.6 A relay output IEC 60947-5-1 || DC-12 500000 cycles 24 V, 1.5 A relay output IEC 60947-5-1
- Voltage State 1 Guaranteed
- >= 15 V I1...IA and IH...IR discrete input circuit || >= 15 V IB...IG used as discrete input circuit
- Current State 0 Guaranteed
- <= 0.5 mA IB...IG used as discrete input circuit) || <= 0.75 mA I1...IA and IH...IR discrete input circuit)
- Overvoltage Category
- III IEC 60664-1
- Tightening Torque
- 0.5 N.m
- Operating Rate In Hz
- 0.1 Hz at Ie)relay output || 10 Hz no load)relay output
- Discrete Input Number
- 8 IEC 61131-2 Type 1
- Reverse Polarity Protection
- with
- Checks
- program memory on each power up
Input Impedance12 kOhm IB...IG used as discrete input circuit || 7.4 kOhm I1...IA and IH...IR discrete input circuit
Number Of Outputs6 relay
Discrete Input Voltage24 V DC
Backup Time10 years 25 °C
Discrete Input Current4 mA
Response Time10 ms from state 0 to state 1)relay output || 5 ms from state 1 to state 0)relay output
[Uimp] Rated Impulse Withstand Voltage4 kV EN/IEC 60947-1 and EN/IEC 60664-1
Output Voltage Limits24...250 V AC relay output) || 5...30 V DC relay output)
Connections - Terminalsscrew terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end || screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) semi-solid || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) solid || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) solid
Input Compatibility3-wire proximity sensors PNP discrete input
Supply Voltage Limits19.2-30 V
Mechanical Durability10000000 cycles relay output
Switching Capacity In Ma>= 10 mA 12 V relay output)
Counting Frequency1 kHz discrete input
Cycle Time6-90 ms
[Us] Rated Supply Voltage24 V DC
Environment
- Product Certifications
- C-Tick || UL || GL || CSA || GOST
- Disturbance Radiated/Conducted
- class B EN 55022-11 group 1
- Environmental Characteristic
- EMC directive IEC 61000-6-2 || EMC directive IEC 61000-6-3 || EMC directive IEC 61000-6-4 || EMC directive IEC 61131-2 zone B || low voltage directive IEC 61131-2
- Pollution Degree
- 2 IEC 61131-2
- Relative Humidity
- 95-95 % without condensation or dripping water
- Operating Altitude
- 2000 m
StandardsIEC 61000-4-11 || IEC 61000-4-6 level 3 || IEC 60068-2-27 Ea || IEC 60068-2-6 Fc || IEC 61000-4-3 || IEC 61000-4-4 level 3 || IEC 61000-4-5 || IEC 61000-4-12 || IEC 61000-4-2 level 3
Ambient Air Temperature For Operation-20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2 || -20-55 °C IEC 60068-2-1 and IEC 60068-2-2
Ip Degree Of ProtectionIP20 IEC 60529 terminal block) || IP40 IEC 60529 front panel)
Ambient Air Temperature For Storage-40-70 °C
Maximum Altitude Transport3048 m
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2011013EN
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI2011013EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
