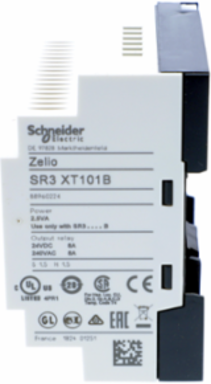

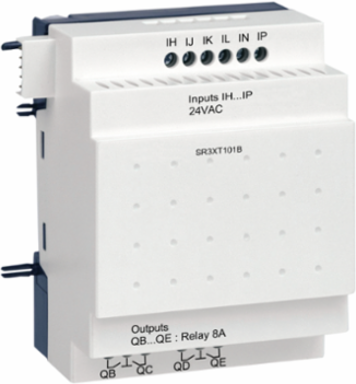

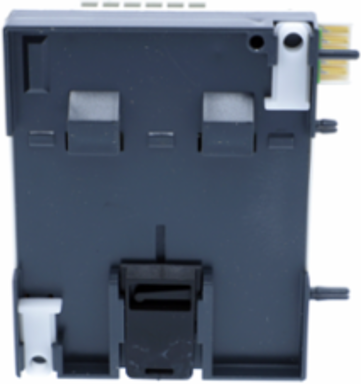

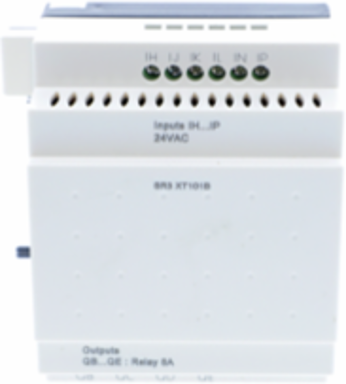

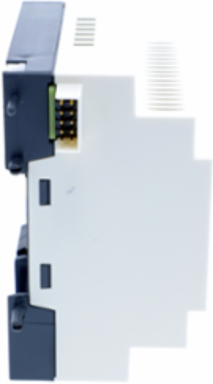

Telemecanique Sensors SR3XT101B Zelio Logic Discrete I/O Extension Module, 10 I/O, 24V AC, IP20/IP40
Telemecanique Sensors SR3XT101B Zelio Logic Discrete I/O Extension Module, 10 I/O, 24V AC, IP20/IP40
- MPN: SR3XT101B
- PPN: SCH-SR3XT101B
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$119.34/ EA
Description
This product is part of Zelio Logic SR2/SR3, an offer of smart relays for simple automation systems from 10 to 40 I/Os. This discrete I/O extension module offers 6 discrete inputs with 4 relay outputs. It is a module with discrete input voltage of 24V AC with discrete input frequency of 47Hz to 53Hz, 57Hz to 63Hz. It is an IP20 and IP40 rated product. It weighs 0.2kg. The main application of this module is industry and building/service sector. This product is certified by C-Tick, GL, UL, CSA and GOST. It meets EN/IEC 61000-4-2 L3, EN/IEC 61000-4-5, EN/IEC 61000-4-6 L3 and EN/IEC 60068-2-6 Fc standards. Easy to use, Zelio Logic provides a real alternative solutions based on cabled logic or specific cards.
Specifications
Environment
- Product Certifications
- GOST || GL || C-Tick || CSA || UL
- Disturbance Radiated/Conducted
- class B EN 55022-11 group 1
- Environmental Characteristic
- EMC directive IEC 61000-6-2 || EMC directive IEC 61000-6-3 || EMC directive IEC 61000-6-4 || EMC directive IEC 61131-2 zone B || low voltage directive IEC 61131-2
- Pollution Degree
- 2 IEC 61131-2
- Relative Humidity
- 95-95 % without condensation or dripping water
- Operating Altitude
- 2000 m
StandardsIEC 61000-4-2 level 3 || IEC 61000-4-5 || IEC 61000-4-6 level 3 || IEC 60068-2-6 Fc || IEC 60068-2-27 Ea || IEC 61000-4-11 || IEC 61000-4-3 || IEC 61000-4-12 || IEC 61000-4-4 level 3
Ambient Air Temperature For Operation-20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2 || -20-55 °C IEC 60068-2-1 and IEC 60068-2-2
Ip Degree Of ProtectionIP20 IEC 60529 terminal block) || IP40 IEC 60529 front panel)
Ambient Air Temperature For Storage-40-70 °C
Maximum Altitude Transport3048 m
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2011013EN
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI2011013EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Contacts Type And Composition
- NO relay output
- Discrete Input Frequency
- 47...53 Hz || 57...63 Hz
- Output Thermal Current
- 8 A for all 4 outputs relay output
- Number Or Control Scheme Lines
- 120-120 ladder
- Clock Drift
- 12 min/year 0-55 °C
- Current State 1 Guaranteed
- >= 2 mA discrete input)
- Net Weight
- 0.2 kg
- Voltage State 0 Guaranteed
- <= 5 V discrete input
- Electrical Durability
- AC-15 500000 cycles 230 V, 0.9 A relay output IEC 60947-5-1 || AC-12 500000 cycles 230 V, 1.5 A relay output IEC 60947-5-1 || DC-13 500000 cycles 24 V, 0.6 A relay output IEC 60947-5-1 || DC-12 500000 cycles 24 V, 1.5 A relay output IEC 60947-5-1
- Voltage State 1 Guaranteed
- >= 14 V discrete input
- Supply Voltage Limits
- 20.4-28.8 V
- Mechanical Durability
- 10000000 cycles relay output
- Switching Capacity In Ma
- >= 10 mA 12 V relay output)
- Discrete Input Number
- 6
- Reverse Polarity Protection
- with
- [Us] Rated Supply Voltage
- 24 V AC
Input Impedance4.6 kOhm discrete input
Number Of Outputs4 relay
Discrete Input Voltage24 V AC
Backup Time10 years 25 °C
Discrete Input Current4.4 mA
Response Time50 ms ladder from state 0 to state 1)discrete input || 50 ms ladder from state 1 to state 0)discrete input || 50...255 ms FBD from state 0 to state 1)discrete input || 50...255 ms FBD from state 1 to state 0)discrete input || 10 ms from state 0 to state 1)relay output || 5 ms from state 1 to state 0)relay output
[Uimp] Rated Impulse Withstand Voltage4 kV EN/IEC 60947-1 and EN/IEC 60664-1
Output Voltage Limits5...30 V DC relay output) || 24...250 V AC
Connections - Terminalsscrew terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end || screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) semi-solid || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) solid || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) solid
Current State 0 Guaranteed<= 0.5 mA discrete input)
Overvoltage CategoryIII IEC 60664-1
Tightening Torque0.5 N.m
Operating Rate In Hz0.1 Hz at Ie)relay output || 10 Hz no load)relay output
Cycle Time6-90 ms
Supply Frequency50/60 Hz
Checksprogram memory on each power up
Specifications
- Range Of Product
- Zelio Logic
Product Or Component Typediscrete I/O extension module
