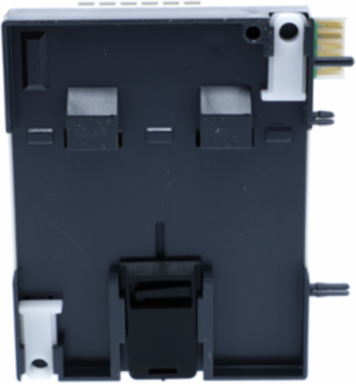

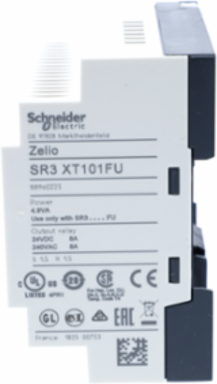

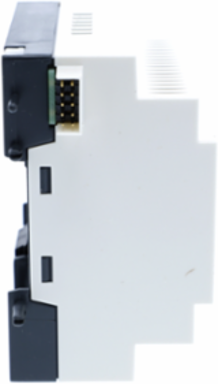

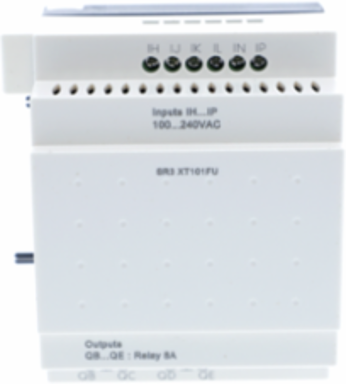

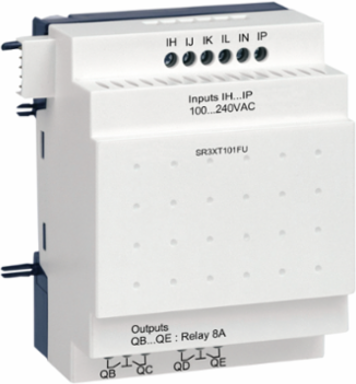

Telemecanique Sensors SR3XT101FU Zelio Logic Discrete I/O Extension Module, 10 Inputs, 100-240V AC
- MPN: SR3XT101FU
- PPN: SCH-SR3XT101FU
CAD
$119.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This product is part of the Zelio Logic range, an offer of smart relays for simple automation systems from 10 to 40 I/Os. The discrete I/O extension module provides 6 inputs and 4 relay outputs. It is an extension module with a rated supply voltage of 100 to 240V AC and a discrete input current of 0.6mA. It offers normally opened contacts for relay output, checks program memory on each power up and 120 with ladder programming number or control scheme lines. It is furnished with screw terminal for electrical connections. It offers long mechanical life, the mechanical durability is about 10 million cycles for relay output and 10 years of backup time at 25°C. It is an IP20 and IP40 rated product. It weighs 0.2kg. This product meets EN/IEC 60068-2-27 Ea, EN/IEC 61000-4-12, EN/IEC 61000-4-3, EN/IEC 61000-4-2 level 3, EN/IEC 61000-4-5, EN/IEC 61000-4-6 level 3, EN/IEC 60068-2-6 Fc, EN/IEC 61000-4-11 and EN/IEC 61000-4-4 level 3 standards. Simple to select, install and program, Zelio Logic is suitable for all your applications. Flexible, it offers you the choice of 2 ranges, compact or modular, extendable and 2 programming languages (FBD or LADDER). Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Zelio Logic
Product Or Component Typediscrete I/O extension module
Complementary
- Contacts Type And Composition
- NO relay output
- Discrete Input Frequency
- 47...53 Hz || 57...63 Hz
- Output Thermal Current
- 8 A for all 4 outputs relay output
- Number Or Control Scheme Lines
- 120-120 ladder
- Clock Drift
- 12 min/year 0-55 °C
- Current State 1 Guaranteed
- >= 0.17 mA discrete input)
- Net Weight
- 0.2 kg
- Voltage State 0 Guaranteed
- <= 40 V discrete input
- Electrical Durability
- AC-15 500000 cycles 230 V, 0.9 A relay output IEC 60947-5-1 || AC-12 500000 cycles 230 V, 1.5 A relay output IEC 60947-5-1 || DC-13 500000 cycles 24 V, 0.6 A relay output IEC 60947-5-1 || DC-12 500000 cycles 24 V, 1.5 A relay output IEC 60947-5-1
- Voltage State 1 Guaranteed
- >= 79 V discrete input
- Supply Voltage Limits
- 85-264 V
- Mechanical Durability
- 10000000 cycles relay output
- Switching Capacity In Ma
- >= 10 mA 12 V relay output)
- Discrete Input Number
- 6
- Reverse Polarity Protection
- with
- [Us] Rated Supply Voltage
- 100...240 V AC
Input Impedance350 kOhm discrete input
Number Of Outputs4 relay
Discrete Input Voltage100...240 V AC
Backup Time10 years 25 °C
Discrete Input Current0.6 mA
Response Time50 ms ladder from state 0 to state 1)discrete input || 50 ms ladder from state 1 to state 0)discrete input || 50...255 ms FBD from state 0 to state 1)discrete input || 50...255 ms FBD from state 1 to state 0)discrete input || 10 ms from state 0 to state 1)relay output || 5 ms from state 1 to state 0)relay output
[Uimp] Rated Impulse Withstand Voltage4 kV EN/IEC 60947-1 and EN/IEC 60664-1
Output Voltage Limits5...30 V DC relay output) || 24...250 V AC
Connections - Terminalsscrew terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end || screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) semi-solid || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) solid || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) solid
Current State 0 Guaranteed<= 0.5 mA discrete input)
Overvoltage CategoryIII IEC 60664-1
Tightening Torque0.5 N.m
Operating Rate In Hz0.1 Hz at Ie)relay output || 10 Hz no load)relay output
Cycle Time6-90 ms
Supply Frequency50/60 Hz
Checksprogram memory on each power up
Environment
- Product Certifications
- GOST || UL || CSA || C-Tick || GL
- Disturbance Radiated/Conducted
- class B EN 55022-11 group 1
- Environmental Characteristic
- EMC directive IEC 61000-6-2 || EMC directive IEC 61000-6-3 || EMC directive IEC 61000-6-4 || EMC directive IEC 61131-2 zone B || low voltage directive IEC 61131-2
- Pollution Degree
- 2 IEC 61131-2
- Relative Humidity
- 95-95 % without condensation or dripping water
- Operating Altitude
- 2000 m
StandardsIEC 60068-2-27 Ea || IEC 61000-4-12 || IEC 61000-4-3 || IEC 61000-4-2 level 3 || IEC 61000-4-5 || IEC 61000-4-6 level 3 || IEC 60068-2-6 Fc || IEC 61000-4-11 || IEC 61000-4-4 level 3
Ambient Air Temperature For Operation-20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2 || -20-55 °C IEC 60068-2-1 and IEC 60068-2-2
Ip Degree Of ProtectionIP20 IEC 60529 terminal block) || IP40 IEC 60529 front panel)
Ambient Air Temperature For Storage-40-70 °C
Maximum Altitude Transport3048 m
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2011013EN
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI2011013EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
