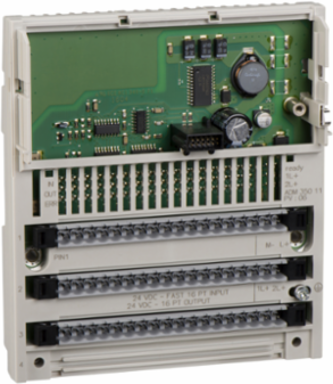

Schneider Electric 170ADM39030 Modicon Momentum Discrete I/O Module 10 Inputs 8 Outputs
Schneider Electric 170ADM39030 Modicon Momentum Discrete I/O Module 10 Inputs 8 Outputs
- MPN: 170ADM39030
- PPN: SCH-170ADM39030
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$768.94/ EA
Description
This I/O module is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This discrete relay I/O base DC module offers 1 group of 10 inputs and 2 groups of 4 outputs with positive discrete input logic. It is a module with discrete input voltage ranges from 20V AC to 115V AC and discrete output voltage ranges from 20V DC to 115V DC. There is an isolation between channels and bus at 500V AC. Its dimensions are 125mm (width) x 47.5mm (depth) x 141.5mm (height). It weighs 0.26kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, CSA and UL. It is suitable for wall mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.
Specifications
Environment
- Product Certifications
- UL || CSA
- Resistance To Electromagnetic Fields
- 10 V/m 80...1000 MHz IEC 801-3
- Relative Humidity
- 95-95 % without condensation
- Operating Altitude
- <= 5000 m
Ambient Air Temperature For Operation0-60 °C
Ambient Air Temperature For Storage-40-85 °C
Resistance To Electrostatic Discharge4 kV contact IEC 801-2 || 8 kV on air IEC 801-2
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1403005EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1403005EN
Complementary
- Network Frequency
- 47...63 Hz
- Height
- 141.5 mm
- Terminals Description Plc N°2
- (6)OUT_DIS#6 || (2L1)PW || (2)OUT_DIS#2 || TB_1 || (8)OUT_DIS#8 || (7)OUT_DIS#7 || (1L+)PW || (4)OUT_DIS#4 || (5)OUT_DIS#5 || (1)OUT_DIS#1 || (3)OUT_DIS#3
- Isolation Between Channels And Bus
- 500 V AC
- Current State 1 Guaranteed
- >= 2.5 mA
- Current State 0 Guaranteed
- <= 1.2 mA
- Response Time
- 10 ms 60 Hz from state 0 to state 1 on output || 10 ms 60 Hz from state 1 to state 0 on output || 2.2 ms from state 0 to state 1 on input || 3.3 ms from state 1 to state 0 on input
- Net Weight
- 0.26 kg
- Maximum Leakage Current
- 1 mA 230 V output circuit)
- Input Resistance
- 4 kOhm
- Protection Type
- without protection
- Depth
- 47.5 mm
- [Us] Rated Supply Voltage
- 24 V DC
Power Dissipation5.5 W || <= 8.5 W
Electrical Durability100000 cycles inductive
Terminals Description Plc N°1(1L+)PW_POS || (3)IN_DIS#3 || (9)IN_DIS#9 || (1)IN_DIS#1 || (8)IN_DIS#8 || (6)IN_DIS#6 || (2)IN_DIS#2 || (7)IN_DIS#7 || (4)IN_DIS#4 || (L+)PW_POS || (10)IN_DIS#10 || (5)IN_DIS#5 || (M-)PW_NEG || TB
Current Consumption250 mA 24 V DC
MarkingCE
Input Voltage Limits3...30 V
Associated Fuse Rating4 A fast blow input voltage || 8 A slow-blow output voltage per group || 375 mA fast blow operating voltage
Voltage State 0 Guaranteed-3...5 V
Voltage State 1 Guaranteed11...30 V
Mechanical Durability30000000 cycles
Width125 mm
Discrete Output Current<= 0.15 mA 115 V inductive || <= 0.5 mA 115 V resistive || <= 1 mA 24 V inductive || <= 2 mA 24 V resistive || >= 0.005 A 24 V
Specifications
- Discrete Output Type
- relay normally open
- Range Of Product
- Modicon Momentum automation platform
- Product Or Component Type
- discrete relay I/O base DC
- Discrete Output Number
- 8
- Discrete Input Number
- 10 IEC 1131-2 Type 1
Group Of Channels1 group of 10 inputs || 2 groups of 4 outputs
Discrete Input Voltage11...30 V DC
Discrete Output Voltage20...115 V DC || 24...230 V AC
Discrete Input Logicpositive
Protective TreatmentTC
