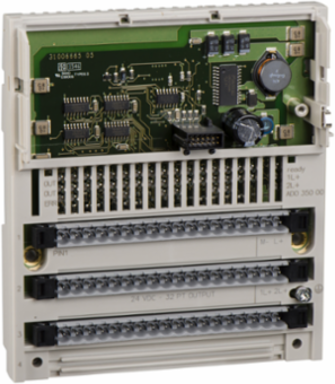

Schneider Electric 170ADI35000 Modicon Momentum Discrete Input Module - 32 Inputs, 24V DC, 125mm Width
- MPN: 170ADI35000
- PPN: SCH-170ADI35000
- UNSPSC: 32151601
CAD
$815.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This input base is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This discrete input base DC module offers 2 groups of 16 inputs, conforming to IEC 1131-2 type 1 with positive discrete input logic. It is a module with discrete input voltage of 24V DC. There is an isolation between channels and ground at 500V AC. It features 32 LEDs for channel status signaling. Its dimensions are 125mm (width) x 47.5mm (depth) x 141.5mm (height). It weighs 0.2kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, CSA and UL. It is suitable for wall mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.
Features
- 32 LEDs for channel status local signaling
- CE approved
- CSA and UL certified
- Wide range of operating temperature from 0°C to 60°C
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Indonesia, United States |
|---|---|
| Depth | 47.5 mm |
| Weight | 388 g |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM8, SI |
|---|---|
| Current State 1 Guaranteed | >= 2.5 mA, >= 2.5 mA |
| Certificate Agency | UL, CSA |
| Terminals Description Plc N°2 | (13)IN_DIS 29, (4)IN_DIS 20, (1L+)PW_POS, (11)IN_DIS 27, (8)IN_DIS 24, (6)IN_DIS 22, (16)IN_DIS 32, (1)IN_DIS 17, (2)IN_DIS 18, (2L+)PW_POS, (10)IN_DIS 26, (5)IN_DIS 21, (9)IN_DIS 25, (3)IN_DIS 19, (12)IN_DIS 28, (14)IN_DIS 30, (7)IN_DIS 23, (15)IN_DIS 31, TB_1, (13)IN_DIS 29, (4)IN_DIS 20, (1L+)PW_POS, (11)IN_DIS 27, (8)IN_DIS 24, (6)IN_DIS 22, (16)IN_DIS 32, (1)IN_DIS 17, (2)IN_DIS 18, (2L+)PW_POS, (10)IN_DIS 26, (5)IN_DIS 21, (9)IN_DIS 25, (3)IN_DIS 19, (12)IN_DIS 28, (14)IN_DIS 30, (7)IN_DIS 23, (15)IN_DIS 31 |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.5 kg CO2 eq., 0.47997280170199397 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 125 kg CO2 eq., 125.28115726256631 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1403005EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2438 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 4 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Group Of Channels | 2 groups of 16 inputs |
| Local Signalling | 32 LEDs for channel status |
| Product Availability | Stock - Normally stocked in distribution facility |
| Protective Treatment | TC |
| Returnability | Yes |
| Sustainable Packaging | No |
| Dc Supply Voltage | 24-24 V |
| Database Version | 2024-01 |
| Height Nominal | 141.5 mm |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Persona Type Names | End User, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Voltage Range | - 3...30 V, - 3...30 V |
| Terminals Description Plc N°1 | (5)IN_DIS 5, (L+)PW_POS, (12)IN_DIS 12, (9)IN_DIS 9, (14)IN_DIS 14, (7)IN_DIS 7, (4)IN_DIS 4, (6)IN_DIS 6, (10)IN_DIS 10, (2)IN_DIS 2, (8)IN_DIS 8, (M-)PW_NEG, (16)IN_DIS 16, (13)IN_DIS 13, (15)IN_DIS 15, (11)IN_DIS 11, (1)IN_DIS 1, (3)IN_DIS 3, (5)IN_DIS 5, (L+)PW_POS, (12)IN_DIS 12, (9)IN_DIS 9, (14)IN_DIS 14, (7)IN_DIS 7, (4)IN_DIS 4, (6)IN_DIS 6, (10)IN_DIS 10, (2)IN_DIS 2, (8)IN_DIS 8, (M-)PW_NEG, (16)IN_DIS 16, (13)IN_DIS 13, (15)IN_DIS 15, (11)IN_DIS 11, (1)IN_DIS 1, (3)IN_DIS 3, TB |
| Carbon Footprint Of The Distribution Phase A4 | 0.11587971779397588, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.2130896266524876, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 141 kg CO2 eq., 141.10219037035654 |
| Local Publishable Date | 2026-01-12 |
| Device Type | PLC System - PLC Component |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Tier Id | 4 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Isolation Between Channels And Bus | 500 V AC |
| Marking | CE |
| Product Or Component Type | discrete inputs base DC |
| Range Of Product | Modicon Momentum automation platform |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 267 kg CO2 eq. |
| Time Delay At Signal Change | 3.3-3.3 ms |
| Data Source | extrapolated product |
| Width Nominal | 125 mm |
| Customs Code | 8538908180 |
| Functional Unit Description | Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.Monitor digital & analog sensors input singal and provide Control singnal to field actuator by digial and analog output with an active power consumtion of 6W for 10 years |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 4 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Carbon Footprint | 267.1922897790713 |
| Environmental Disclosure | ENVPEP1403005EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2026-07-28 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1403005EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP1403005EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Product Or Component Type | discrete inputs base DC |
|---|
| Range Of Product | Modicon Momentum automation platform |
|---|
ETIM
| ETIM 8 | EC001599 |
|---|---|
| ETIM 10 | EC001599 |
| ETIM 9 | EC001599 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Discrete Input Logic | positive |
|---|---|
| Input Voltage Limits | 24 V |
| Discrete Input Number | 32 |
|---|
