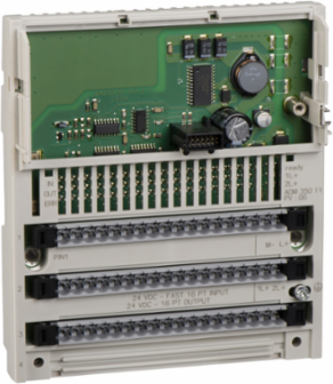

Schneider Electric 170ADM37010 Modicon Momentum Discrete I/O Module - 16 Inputs / 8 Outputs, 24V DC
- MPN: 170ADM37010
- PPN: SCH-170ADM37010
- UNSPSC: 32151601
CAD
$1189.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Modicon Momentum Discrete I/O Module from Schneider Electric is a robust solution designed for automation and control applications. Featuring 16 inputs and 8 outputs, all operating at 24V DC, this module offers seamless integration and reliable performance for a variety of discrete control tasks. Engineered to enhance the functionality of your control systems, it facilitates efficient data acquisition and monitoring, making it an essential component in any modular automation setup. With its high-quality design and proven reliability, this I/O module is an excellent choice for optimizing process efficiency and control.
Features
- Easy installation
- Modular product
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Indonesia, United States |
|---|---|
| Depth | 47.5 mm |
| Weight | 394 g |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM8, SI |
|---|---|
| Fault Type | short circuit on output, overload on output |
| Certificate Agency | UL, CSA |
| Terminals Description Plc N°2 | (5)OUT_DIS 5, (1)OUT_DIS 1, (2)OUT_DIS 2, (4)OUT_DIS 4, (6)OUT_DIS 6, (8)OUT_DIS 8, (7)OUT_DIS 7, (3)OUT_DIS 3, (1L+)PW_POS, (2L+)PW_POS, (5)OUT_DIS 5, (1)OUT_DIS 1, (2)OUT_DIS 2, (4)OUT_DIS 4, (6)OUT_DIS 6, (8)OUT_DIS 8, (7)OUT_DIS 7, (3)OUT_DIS 3, (1L+)PW_POS, (2L+)PW_POS, TB_1 |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.5 kg CO2 eq., 0.48739506152212786 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 127 kg CO2 eq., 127.21849474600805 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1403005EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2438 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 4 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Isolation Between Channels And Bus | 500 V AC |
| Product Availability | Stock - Normally stocked in distribution facility |
| Protective Treatment | TC |
| Returnability | Yes |
| Sustainable Packaging | No |
| Dc Supply Voltage | 24-24 V |
| Database Version | 2024-01 |
| Height Nominal | 141.5 mm |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Persona Type Names | End User, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Group Of Channels | 4 groups of 4 inputs, 2 groups of 4 outputs |
| Terminals Description Plc N°1 | (11)IN_DIS 11, (M-)PW_NEG, (L+)PW_POS, (7)IN_DIS 7, (15)IN_DIS 15, (16)IN_DIS 16, (1)IN_DIS 1, (4)IN_DIS 4, (6)IN_DIS 6, (14)IN_DIS 14, (13)IN_DIS 13, (5)IN_DIS 5, (12)IN_DIS 12, (10)IN_DIS 10, (8)IN_DIS 8, (2)IN_DIS 2, (3)IN_DIS 3, (9)IN_DIS 9, (11)IN_DIS 11, (M-)PW_NEG, (L+)PW_POS, (7)IN_DIS 7, (15)IN_DIS 15, (16)IN_DIS 16, (1)IN_DIS 1, (4)IN_DIS 4, (6)IN_DIS 6, (14)IN_DIS 14, (13)IN_DIS 13, (5)IN_DIS 5, TB, (12)IN_DIS 12, (10)IN_DIS 10, (8)IN_DIS 8, (2)IN_DIS 2, (3)IN_DIS 3, (9)IN_DIS 9 |
| Carbon Footprint Of The Distribution Phase A4 | 0.1176716721928518, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.21638482706463946, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 141 kg CO2 eq., 141.10219037035654 |
| Local Publishable Date | 2026-01-12 |
| Device Type | PLC System - PLC Component |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Tier Id | 4 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Marking | CE |
| Product Or Component Type | discrete solid state I/O base DC |
| Range Of Product | Modicon Momentum automation platform |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 269 kg CO2 eq. |
| Time Delay At Signal Change | 3.3-3.3 ms |
| Data Source | extrapolated product |
| Width Nominal | 125 mm |
| Customs Code | 8538908180 |
| Functional Unit Description | Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.Monitor digital & analog sensors input singal and provide Control singnal to field actuator by digial and analog output with an active power consumtion of 6W for 10 years |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 4 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Carbon Footprint | 269.1421366771442 |
| Environmental Disclosure | ENVPEP1403005EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2026-07-28 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1403005EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP1403005EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Product Or Component Type | discrete solid state I/O base DC |
|---|
| Range Of Product | Modicon Momentum automation platform |
|---|
ETIM
| ETIM 8 | EC001599 |
|---|---|
| ETIM 10 | EC001599 |
| ETIM 9 | EC001599 |
|---|
Output Attributes
| Discrete Output Logic | positive |
|---|---|
| Discrete Output Type | solid state switch |
| Discrete Output Number | 8 |
|---|---|
| Peak Output Current | 2.8 A |
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Input Voltage Limits | - 3...30 V, - 3...30 V |
|---|---|
| Discrete Input Number | 16 |
| Discrete Input Logic | positive |
|---|---|
| Input Resistance | 4 kOhm |
