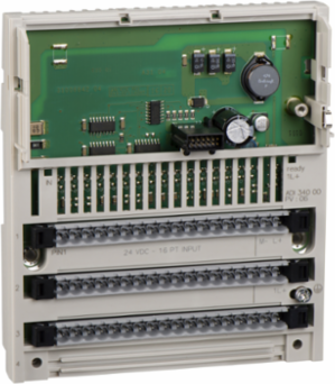

Schneider Electric 170ADI34000 discrete input module Modicon Momentum - 16 Input 24 V DC

discrete input module Modicon Momentum - 16 Input 24 V DC
  • MPN: 170ADI34000
  • PPN: SCH-170ADI34000

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$656.65/ EA

Description

discrete input module Modicon Momentum - 16 Input 24 V DC

Specifications

Environment

Product Certifications
FM Class 1 Division 2 || CSA || UL
Resistance To Electromagnetic Fields
10 V/m 80...1000 MHz IEC 801-3
Relative Humidity
95-95 % without condensation
Operating Altitude
<= 5000 m
Ambient Air Temperature For Operation0-60 °C
Ambient Air Temperature For Storage-40-85 °C
Resistance To Electrostatic Discharge4 kV contact IEC 801-2 || 8 kV on air IEC 801-2

Contractual warranty

Warranty
18 months

Offer Sustainability

Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP1403005EN
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
China Rohs Regulation
X
Eu Rohs Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1403005EN

Complementary

Power Dissipation
5 W maximum || 3 W typical
Terminals Description Plc N°1
(8)IN_DIS#8 || (5)IN_DIS#5 || (16)IN_DIS#16 || (4)IN_DIS#4 || (3)IN_DIS#3 || (13)IN_DIS#13 || (14)IN_DIS#14 || (10)IN_DIS#10 || (L+)PW_POS || (M-)PW_NEG || (6)IN_DIS#6 || (7)IN_DIS#7 || (1)IN_DIS#1 || (11)IN_DIS#11 || (9)IN_DIS#9 || (15)IN_DIS#15 || (12)IN_DIS#12 || TB || (2)IN_DIS#2
Current Consumption
<= 250 mA 24 V DC
Voltage Range
3...30 V
Input Voltage Limits
24 V
Net Weight
0.19 kg
Current State 1 Guaranteed
>= 2.5 mA
Local Signalling
channel status 16 LEDs
Width
125 mm
Voltage State 1 Guaranteed
11...30 V
Height141.5 mm
Isolation Between Channels And Bus500 V AC
MarkingCE
Current State 0 Guaranteed<= 1.2 mA
Response Time2.2 ms from state 0 to state 1 || 3.3 ms from state 1 to state 0
Voltage State 0 Guaranteed-3...5 V
Discrete Input Logicpositive
Input Resistance4 kOhm
Depth47.5 mm

Specifications

Group Of Channels
1 group of 16 inputs
Discrete Input Voltage
24 V DC
Discrete Input Number
16 IEC 1131-2 Type 1
Range Of ProductModicon Momentum automation platform
Product Or Component Typediscrete inputs base DC
Protective TreatmentTC

Downloads
