Schneider Electric 170ADO54050 Modicon Momentum Discrete Output Module, 16 Outputs, 120V AC
Schneider Electric 170ADO54050 Modicon Momentum Discrete Output Module, 16 Outputs, 120V AC
- MPN: 170ADO54050
- PPN: SCH-170ADO54050
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1449.00/ EA
Description

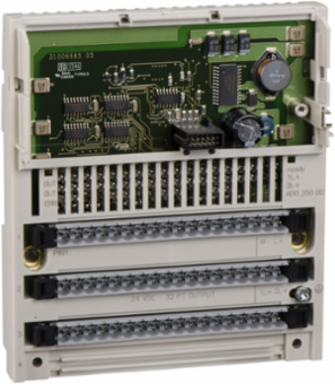

This output module is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This discrete output base AC module offers 2 groups of 8 outputs, 16 discrete outputs with triac type. It offers discrete output voltage of 120V AC. There is an isolation between channels and bus at 1780V AC. It features 16 LEDs for channel status signaling. Its dimensions are 125mm (width) x 47.5mm (depth) x 141.5mm (height). It weighs 0.284kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, FM Class 1 Division 2, CSA and UL. It is suitable for wall mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.
Specifications
Environment
- Product Certifications
- CSA || UL || FM Class 1 Division 2
- Resistance To Electromagnetic Fields
- 10 V/m 80...1000 MHz IEC 801-3
- Relative Humidity
- 95-95 % without condensation
- Operating Altitude
- <= 5000 m
Ambient Air Temperature For Operation0-60 °C
Ambient Air Temperature For Storage-40-85 °C
Resistance To Electrostatic Discharge4 kV contact IEC 801-2 || 8 kV on air IEC 801-2
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1403005EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1403005EN
Complementary
- Power Dissipation
- 7.5 W maximum || 6 W typical
- Minimum Output Current
- 30 mA
- Terminals Description Plc N°1
- (3)OUT_DIS#3 || (4)OUT_DIS#4 || (12)OUT_DIS#12 || (8)OUT_DIS#8 || TB || (10)OUT_DIS#10 || (1N)PW || (1)OUT_DIS#1 || (9)OUT_DIS#9 || (1L+)PW || (5)OUT_DIS#5 || (13)OUT_DIS#13 || (15)OUT_DIS#15 || (2)OUT_DIS#2 || (11)OUT_DIS#11 || (6)OUT_DIS#6 || (7)OUT_DIS#7 || (14)OUT_DIS#14 || (16)OUT_DIS#16
- Response Time
- 1/2 x 1/f (= 0.5 of one line cycle) from state 0 to state 1 || 1/2 x 1/f (= 0.5 of one line cycle) from state 1 to state 0
- Surge Current
- 10 A for 2 cycles || 15 A for 1 cycle || 5 A for 3 cycles
- Discrete Output Current
- 4 A per group || 8 A per module
- Maximum Leakage Current
- 1.9 mA 120 V AC
- Output Overload Protection
- internal fuse
- Depth
- 47.5 mm
Height141.5 mm
[Ue] Rated Operational Voltage120 V AC
Maximum Voltage Drop<1.5 V 0.5 A at state 1
Current Consumption125 mA 120 V AC
MarkingCE
Net Weight0.284 kg
Local Signallingchannel status 16 LEDs
Width125 mm
Isolation Between Channels And Bus1780 V AC for 1 minute
Specifications
- Discrete Output Type
- triac
- Range Of Product
- Modicon Momentum automation platform
- Product Or Component Type
- discrete output base AC
- Discrete Output Number
- 16
- Protective Treatment
- TC
Group Of Channels2 groups of 8 outputs
Current Per Channel0.5 A
Discrete Output Voltage120 V AC
Short-Circuit Protectioninternal fuse, 5 A slow-blow per group
