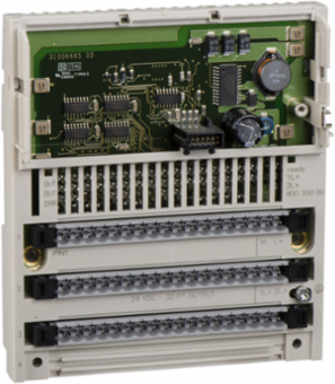

Schneider Electric 170ADO53050 Modicon Momentum 8-Channel Discrete Output Module, 120V AC, Triac
- MPN: 170ADO53050
- PPN: SCH-170ADO53050
- UNSPSC: 32151601
CAD
$1293.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Modicon Momentum 8-Channel Discrete Output Module from Schneider Electric is engineered for robust performance in automation and control applications. With its capability to handle 120V AC outputs via reliable triac technology, this module provides seamless integration into PLC systems, enhancing the efficiency of data acquisition processes. Ideal for various industrial environments, it supports the effective management of discrete signals, making it a crucial component for modern automation solutions.
Features
- Space-saving architecture for easy installation
- Seamless integration with existing Modbus networks
- Configurable I/O options for various applications
- Efficient solution for small to medium automation needs
- Simplified setup and programming for quick deployment
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Indonesia |
|---|---|
| Depth | 47.5 mm |
| Weight | 531 g |
|---|
Important Information Attributes
| Certificate Agency | CSA, FM Class 1 Division 2, UL |
|---|---|
| Carbon Footprint Of The Distribution Phase A4 | 0.15858796430051852, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.2916252364754405, 0.3 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 141 kg CO2 eq., 141.10219037035654 |
| Local Publishable Date | 2026-01-12 |
| Device Type | PLC System - PLC Component |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Group Of Channels | 2 groups of 4 outputs |
| Marking | CE |
| Product Or Component Type | discrete output base AC |
| Range Of Product | Modicon Momentum automation platform |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 314 kg CO2 eq. |
| Supply Voltage Ac 60 Hz | 120-120 V |
| Database Version | 2024-01 |
| Height Nominal | 141.5 mm |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Terminals Description Plc N°1 | (4)OUT_DIS 4, (2)OUT_DIS 2, (1)OUT_DIS 1, (3)OUT_DIS 3, (1L+)PW, (5)OUT_DIS 5, (6)OUT_DIS 6, (1N)PW, (7)OUT_DIS 7, (8)OUT_DIS 8, (4)OUT_DIS 4, (2)OUT_DIS 2, (1)OUT_DIS 1, (3)OUT_DIS 3, (1L+)PW, TB, (5)OUT_DIS 5, (6)OUT_DIS 6, (1N)PW, (7)OUT_DIS 7, (8)OUT_DIS 8 |
|---|---|
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.7 kg CO2 eq., 0.6568699940818525 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 171 kg CO2 eq., 171.4543672845946 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1403005EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2438 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Current Per Channel | 2 A |
| Local Signalling | 8 LEDs for channel status |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Protective Treatment | TC |
| Returnability | No |
| Sustainable Packaging | No |
| Supply Voltage Ac 50 Hz | 120-120 V |
| Time Delay At Signal Change | 0.1-0.1 ms |
| Data Source | extrapolated product |
| Width Nominal | 125 mm |
| Customs Code | 8538908160 |
| Functional Unit Description | Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.Monitor digital & analog sensors input singal and provide Control singnal to field actuator by digial and analog output with an active power consumtion of 6W for 10 years |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 4 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Carbon Footprint | 313.663640849809 |
| Environmental Disclosure | ENVPEP1403005EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2026-07-28 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1403005EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP1403005EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Product Or Component Type | discrete output base AC |
|---|
| Range Of Product | Modicon Momentum automation platform |
|---|
ETIM
| ETIM 8 | EC001599 |
|---|---|
| ETIM 10 | EC001599 |
| ETIM 9 | EC001599 |
|---|
Output Attributes
| Discrete Output Number | 8 |
|---|---|
| Output Overload Protection | internal fuse |
| Discrete Output Type | triac |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
