Schneider Electric 170ADO34000 Modicon Momentum Discrete Output Module - 16 Outputs, 24V DC
Schneider Electric 170ADO34000 Modicon Momentum Discrete Output Module - 16 Outputs, 24V DC
- MPN: 170ADO34000
- PPN: SCH-170ADO34000
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$753.48/ EA
Description

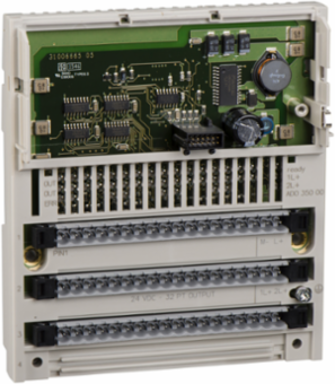

This output module is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This discrete output base DC module offers 2 groups of 8 outputs, 16 discrete outputs with solid state switch type. It offers discrete output voltage of 24V DC. There is an isolation between channels and bus at 500V AC. It features 16 LEDs for channel status signaling. Its dimensions are 125mm (width) x 47.5mm (depth) x 141.5mm (height). It weighs 0.21kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, FM Class 1 Division 2, CSA and UL. It is suitable for wall mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.
Specifications
Environment
- Product Certifications
- UL || FM Class 1 Division 2 || CSA
- Resistance To Electromagnetic Fields
- 10 V/m 80...1000 MHz IEC 801-3
- Relative Humidity
- 95-95 % without condensation
- Operating Altitude
- <= 5000 m
Ambient Air Temperature For Operation0-60 °C
Ambient Air Temperature For Storage-40-85 °C
Resistance To Electrostatic Discharge4 kV contact IEC 801-2 || 8 kV on air IEC 801-2
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1403005EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1403005EN
Complementary
- Power Dissipation
- 3.5 W typical || 4.5 W maximum
- [Ue] Rated Operational Voltage
- 24 V DC
- Maximum Voltage Drop
- <0.5 V 0.5 A at state 1
- Current Consumption
- 250 mA 24 V DC
- Marking
- CE
- Net Weight
- 0.21 kg
- Local Signalling
- channel status 16 LEDs
- Width
- 125 mm
- Isolation Between Channels And Bus
- 500 V AC
Height141.5 mm
Terminals Description Plc N°1(14)OUT_DIS#14 || (2L+)PW_POS || (L+)PW_POS || (5)OUT_DIS#5 || (1)OUT_DIS#1 || (15)OUT_DIS#15 || (M-)PW_NEG || (12)OUT_DIS#12 || (8)OUT_DIS#8 || (4)OUT_DIS#4 || (16)OUT_DIS#16 || (6)OUT_DIS#6 || (2)OUT_DIS#2 || (10)OUT_DIS#10 || (11)OUT_DIS#11 || TB || (13)OUT_DIS#13 || (7)OUT_DIS#7 || (9)OUT_DIS#9 || (3)OUT_DIS#3 || (1L+)PW_POS
Response Time0.1 ms from state 0 to state 1 || 0.1 ms from state 1 to state 0
Surge Current5 A 1 ms
Discrete Output Current4 A per group || 8 A per module
Maximum Leakage Current1 mA 24 V DC
Output Overload Protectionoutputs electronically protected
Depth47.5 mm
Specifications
- Discrete Output Type
- solid state switch
- Range Of Product
- Modicon Momentum automation platform
- Product Or Component Type
- discrete output base DC
- Discrete Output Number
- 16
- Protective Treatment
- TC
Group Of Channels2 groups of 8 outputs
Current Per Channel0.5 A
Discrete Output Voltage24 V DC
Short-Circuit Protectionoutputs electronically protected
