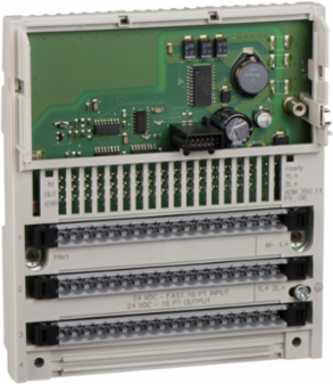

Schneider Electric 170ADM35011 discrete I/O module Modicon Momentum - 16 I/O solid state
Schneider Electric 170ADM35011 discrete I/O module Modicon Momentum - 16 I/O solid state
- MPN: 170ADM35011
- PPN: SCH-170ADM35011
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1094.42/ EA
Description
discrete I/O module Modicon Momentum - 16 I/O solid state
Specifications
Environment
- Product Certifications
- CSA || UL
- Resistance To Electromagnetic Fields
- 10 V/m 80...1000 MHz IEC 801-3
- Relative Humidity
- 95-95 % without condensation
- Operating Altitude
- <= 5000 m
Ambient Air Temperature For Operation0-60 °C
Ambient Air Temperature For Storage-40-85 °C
Resistance To Electrostatic Discharge4 kV contact IEC 801-2 || 8 kV on air IEC 801-2
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1403005EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1403005EN
Complementary
- Power Dissipation
- <= 8 W || 6 W
- Fault Type
- overload on output
- Terminals Description Plc N°1
- (6)IN_DIS#6 || (1)IN_DIS#1 || (4)IN_DIS#4 || (8)IN_DIS#8 || (14)IN_DIS#14 || (L+)PW_POS || (10)IN_DIS#10 || (3)IN_DIS#3 || (M-)PW_NEG || (12)IN_DIS#12 || (16)IN_DIS#16 || (9)IN_DIS#9 || (11)IN_DIS#11 || (5)IN_DIS#5 || TB || (2)IN_DIS#2 || (15)IN_DIS#15 || (7)IN_DIS#7 || (13)IN_DIS#13
- Isolation Between Channels And Bus
- 500 V AC
- Current State 1 Guaranteed
- >= 2.5 mA
- Current State 0 Guaranteed
- <= 1.2 mA
- Response Time
- < 0.1 ms from state 0 to state 1 on output || < 0.1 ms from state 1 to state 0 on output || 0.06 ms from state 0 to state 1 on input || 0.08 ms from state 1 to state 0 on input
- Voltage State 0 Guaranteed
- -3...5 V
- Voltage State 1 Guaranteed
- 11...30 V
- Peak Output Current
- 5 A
- Depth
- 47.5 mm
- [Us] Rated Supply Voltage
- 24 V DC
Height141.5 mm
Terminals Description Plc N°2(16)OUT_DIS#16 || TB_1 || (12)OUT_DIS#12 || (13)OUT_DIS#13 || (4)OUT_DIS#4 || (2)OUT_DIS#2 || (10)OUT_DIS#10 || (15)OUT_DIS#15 || (5)OUT_DIS#5 || (6)OUT_DIS#6 || (11)OUT_DIS#11 || (1L+)PW_POS || (9)OUT_DIS#9 || (1)OUT_DIS#1 || (14)OUT_DIS#14 || (2L+)PW_POS || (7)OUT_DIS#7 || (8)OUT_DIS#8 || (3)OUT_DIS#3
Maximum Voltage Drop<0.5 V 0.5 A at state 1 output circuit
Current Consumption250 mA 24 V DC
MarkingCE
Input Voltage Limits3...30 V
Net Weight0.2 kg
Maximum Leakage Current1 mA 24 V output circuit)
Input Resistance4 kOhm
Width125 mm
Discrete Output Current4 A per group || 8 A per module || 0.5 A per point
Specifications
- Discrete Output Type
- solid state switch
- Range Of Product
- Modicon Momentum automation platform
- Discrete Input Voltage
- 24 V DC
- Discrete Output Voltage
- <= 30 V DC || 24 V DC
- Discrete Input Logic
- positive
- Protective Treatment
- TC
Group Of Channels2 groups of 8 outputs || 1 group of 16 inputs
Discrete Output Logicpositive
Product Or Component Typediscrete solid state I/O base DC
Discrete Output Number16
Discrete Input Number16 IEC 1131-2 Type 1
