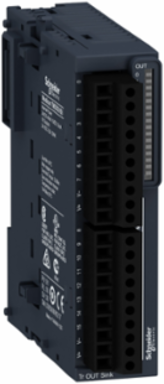

Schneider Electric TM3DQ16U Discrete Output Module, 16 Outputs Transistor NPN, 24V DC, IP20
Schneider Electric TM3DQ16U Discrete Output Module, 16 Outputs Transistor NPN, 24V DC, IP20
- MPN: TM3DQ16U
- PPN: SCH-TM3DQ16U
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$260.89/ EA
Description
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The discrete output module provides 16 transistor outputs with sink (negative)logic. It is an output module with an output voltage of 24V DC and a current consumption of 20mA at 24V DC via bus connector. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between output and supply at 1500V AC, output and internal logic at 500V AC. It is furnished with removable screw terminal for electrical connection with pitch 3.81mm adjustment for outputs. It is an IP20 rated product. Its dimensions are 21.4mm (Width) x 81.3mm (Depth) x 90mm (Height). It weighs 0.76kg. This product is certified by CE, CULus and C-Tick. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
Specifications
Environment
- Product Certifications
- cULus || CE || UKCA || RCM || EAC || cULus HazLoc
- Resistance To Electromagnetic Fields
- 10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2 GHz...3 GHz IEC 61000-4-3
- Ambient Air Temperature For Operation
- -10-35 °C vertical installation || -10-55 °C horizontal installation
- Pollution Degree
- 2
- Resistance To Magnetic Fields
- 30 A/m 50/60 Hz IEC 61000-4-8
- Ambient Air Temperature For Storage
- -25-70 °C
- Surge Withstand
- 1 kV I/O common mode IEC 61000-4-5 DC
- Resistance To Electrostatic Discharge
- 8 kV in air IEC 61000-4-2 || 4 kV on contact IEC 61000-4-2
- Resistance To Fast Transients
- 1 kV I/OIEC 61000-4-4
Resistance To Conducted Disturbances10 V 0.15...80 MHz IEC 61000-4-6 || 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
StandardsIEC 61131-2
Storage Altitude0-3000 m
Shock Resistance15 gn 11 ms
Vibration Resistance3.5 mm 5-8.4 Hz DIN rail || 3 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz panel || 3 gn 8.4-150 Hz panel
Relative Humidity10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
Ip Degree Of ProtectionIP20 with protective cover in place
Operating Altitude0...2000 m
Electromagnetic Emissionradiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz IEC 55011
Specifications
- Discrete Output Type
- transistor
- Discrete Output Logic
- negative logic (sink)
- Product Or Component Type
- discrete output module
- Discrete Output Voltage
- 24 V DC transistor output
Range Of ProductModicon TM3
Discrete Output Number16
Discrete Output Current300 mA transistor output
Range CompatibilityModicon M241 || Modicon M251 || Modicon M221 || Modicon M262
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1402009EN
- Pvc Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI1402009EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
Reach Free Of SvhcYes
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Maximum Cable Distance Between Devices
- unshielded cable <30 m transistor output
- Height
- 90 mm
- Response Time
- 450 µs turn-on) || 450 µs turn-off)
- Net Weight
- 0.76 kg
- Current Consumption
- 5 mA 5 V DC via bus connector at state off) || 0 mA 24 V DC via bus connector at state off) || 15 mA 5 V DC via bus connector at state on) || 20 mA 24 V DC via bus connector at state on)
- Local Signalling
- output status 1 LED per channel green)
- Depth
- 81.3 mm
- Insulation
- between output and internal logic 500 V AC || non-insulated between outputs
Electrical Connection10 x 1.5 mm² removable screw terminal block pitch 3.81 mm for outputs
MarkingCE
Discrete I/O Number16
Maximum Voltage Drop<0.4 V
Mounting Supporttop hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
Width21.4 mm
Maximum Leakage Current0.1 mA transistor output
