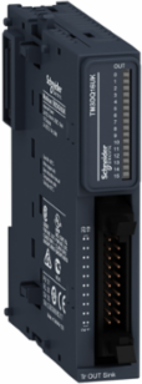

Schneider Electric TM3DQ16UK Modicon TM3 Discrete Output Module 16 Outputs 24V DC Transistor
- MPN: TM3DQ16UK
- PPN: SCH-TM3DQ16UK
CAD
$215.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The TM3DQ16UK Modicon discrete output module from Schneider Electric is a vital component for optimizing automation and control processes. This module features 16 outputs, each designed to operate at 24V DC using reliable transistor technology, ensuring efficient and robust performance in a wide range of applications. Ideal for integrating into PLC systems, it enhances data acquisition and I/O capabilities, enabling seamless interaction within industrial environments. The TM3DQ16UK is essential for enhancing your automation systems with high-quality, dependable output solutions.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, France, Singapore, Taiwan, United States
Depth81.3 mm
Physical Attributes
- Housing Color
- grey
Complementary Attributes
- Maximum Cable Distance Between Devices
- unshielded cable <5 m transistor output
- Maximum Voltage Drop
- <0.4 V<0.4 V
Maximum Leakage Current0.1 mA
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Mounting Support
- top hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit
- Vibration Resistance
- 3 gn 8.4-150 Hz) on panel mounting3.5 mm 5-8.4 Hz) on DIN rail3 gn 8.4-150 Hz) on DIN rail, 3.5 mm 5-8.4 Hz) on panel mounting
- Carbon Footprint Of The Distribution Phase [A4]
- 0.04259157217158444, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.005022818976504355
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 21 kg CO2 eq., 21.060045327723248
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1402009EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1901
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Industrial
- Bearing Track Assembly Possible
- true
- Electrical Connection
- HE-10 connector for outputs
- Isolation Between Channels And Bus
- 500 V AC
- Marking
- CE
- Optical Interface Present
- false
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Protective Treatment
- none
- Radio Standard Gprs
- false
- Radio Standard Umts
- false
- Returnability
- No
- Shock Resistance
- 15 gn 11 ms
- Supporting Protocol For Asi
- false
- Supporting Protocol For Devicenet
- false
- Supporting Protocol For Ethercat
- false
- Supporting Protocol For Interbus
- false
- Supporting Protocol For Lon
- false
- Supporting Protocol For Other Bus Systems
- false
- Supporting Protocol For Profinet Cba
- false
- Supporting Protocol For Profisafe
- false
- Supporting Protocol For Sercos
- false
- Sustainable Packaging
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Certified For Ul Hazardous Location Class Ii
- false
- Certified For Ul Hazardous Location Division 1
- false
- Dc Supply Voltage
- 24-24 V
- Fieldbus Connection Over Separate Bus Coupler Possible
- false
- System Accessory
- false
- Short Circuit Protection Outputs Present
- true
- Pep Code
- ENVPEP1402009EN
- Pep Verification Date
- 2024-06-01
- Psr Version
- PSR-0005-ed3-EN-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; China, CN
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; China, CN
- Height Nominal
- 90 mm
- Appendant Operation Agent (Ex Ia)
- false
- Certified For Ul Hazardous Location Group A (Acetylene)
- false
- Certified For Ul Hazardous Location Group C (Ethylene))
- false
- Certified For Ul Hazardous Location Group E (Metal Dusts)
- false
- Certified For Ul Hazardous Location Group G (Non Conductive Dust)
- false
- Performance Level According To En Iso 13849-1
- none
- Supporting Protocol For As-interface Safety At Work
- false
- Supporting Protocol For Ethernet/Ip
- false
- Wall Mounting/Direct Mounting Possible
- false
- Package Weight(Lbs)
- 180.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Typical Current Consumption5 mA 5 V DC0 mA 24 V DC, 20 mA 5 V DC, 10 mA 24 V DC
Certificate AgencyCE, cULus, UKCA, RCM, EAC, cULus HazLoc
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.456050146716863, 0.5 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]12 kg CO2 eq., 12.323531558416608
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Device ApplicationIndustrial Application
Front Installation Possiblefalse
Local Signalling1 LED per channel (green) for output status
Network TypeAC
Power Supply Typeelectronic powered by internal bus
Product Or Component Typediscrete output module
Radio Standard Bluetoothfalse
Radio Standard Gsmfalse
Range Of ProductModicon TM3
Safety Reliability DataMTBF = 110 years 40 °C
Software Versionv6.1
Supporting Protocol For Canfalse
Supporting Protocol For Devicenet Safetyfalse
Supporting Protocol For Foundation Fieldbusfalse
Supporting Protocol For Knxfalse
Supporting Protocol For Modbusfalse
Supporting Protocol For Profibusfalse
Supporting Protocol For Profinet Iofalse
Supporting Protocol For Safetybus Pfalse
Supporting Protocol For Suconetfalse
Total Lifecycle Carbon Footprint34 kg CO2 eq.
Certified For Ul Hazardous Location Class Ifalse
Certified For Ul Hazardous Location Class Iiifalse
Certified For Ul Hazardous Location Division 2false
Digital Outputs Configurablefalse
Housing Colorgrey
Digital Inputs Configurablefalse
Time Delay At Signal Change0.45-0.45 ms
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo enhance the capabilities of Modicon M221, M262, M241 and M251 logic controllers by creating configurations with up to 264 digital I/O and up to 114 analog I/O, 57.20% of the time for 10 years.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Taiwan, TW
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; China, CN
Recyclability Potential In %3
Width Nominal21.4 mm
Appendant Operation Agent (Ex Ib)false
Certified For Ul Hazardous Location Group B (Hydrogen)false
Certified For Ul Hazardous Location Group D (Propane))false
Certified For Ul Hazardous Location Group F (Carbonaceous Dust)false
Io-link Master Presentfalse
Rack-assembly Possiblefalse
Supporting Protocol For Data-highwayfalse
Supporting Protocol For Tcp/Ipfalse
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8538908180
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-35 °C vertical installation), -10-35 °C vertical installation), -10-55 °C horizontal installation), -10-55 °C horizontal installation)-10-35 °C vertical installation), -10-35 °C vertical installation), -10-55 °C horizontal installation)
- Take Back
- No
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Ambient Air Temperature For Storage
- -25-70 °C-25-70 °C
- Environmental Disclosure
- ENVPEP1402009EN
- Ip Degree Of Protection
- IP20
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-06-01
- Psr Version
- PSR-0005-ed3-EN-2023 06 06
Relative Humidity10-95 % without condensation for operation, 10-95 % without condensation for storage
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint33.887241424004806
Circularity ProfileENVEOLI1402009EN
Eu Rohs DirectiveCompliant
Operating Altitude0...6561.68 ft (0...2000 m)
Packaging Without Single Use PlasticYes
Pep CodeENVPEP1402009EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- discrete output module
Range Of ProductModicon TM3
ETIM
- ETIM 8
- EC001599
ETIM 9EC001599
Output Attributes
- Discrete Output Number
- transistor, 16
- Discrete Output Current
- 100 mA transistor output
- Discrete Output Type
- transistor
- Discrete Output Voltage Type
- AC/DC
Response Time On Output450 µs maximum (turn on), 450 µs maximum (turn off)
Discrete Output Logicnegative logic (sink)
Discrete Output Voltage24 V DCtransistor
