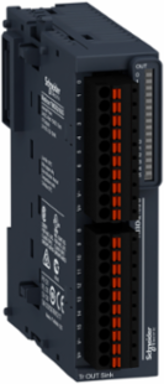

Schneider Electric TM3DQ16UG Modicon TM3 Discrete Output Module, 16 Outputs, 24V DC Transistor Output

MPN: TM3DQ16UG
PPN: SCH-TM3DQ16UG

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$268.69

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Modicon TM3 Discrete Output Module from Schneider Electric is designed to enhance automation and control systems with its 16 transistor outputs, each operating at 24V DC. This module provides reliable and efficient control over various devices, making it an essential component for PLC, HMI, and data acquisition applications. With its robust construction, it ensures stable performance in demanding environments, facilitating seamless integration into complex automation setups. Whether you're looking to upgrade your existing system or implement new solutions, this output module delivers the precision and functionality needed for modern industrial applications.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	China, France, Singapore, Taiwan, United States

Depth	81.3 mm

Physical Attributes

Housing Color	grey

Complementary Attributes

Maximum Cable Distance Between Devices	unshielded cable <30 m transistor output
Maximum Voltage Drop	<0.4 V<0.4 V

Maximum Leakage Current	0.1 mA

Important Information Attributes

Persona Type Ids	EU, OM, OM8
Electrical Connection	10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for outputs, 10 x 1.5 mm² removable spring terminal block with pitch 3.81 mm adjustment for outputs
Typical Current Consumption	5 mA 5 V DC0 mA 24 V DC, 20 mA 5 V DC, 10 mA 24 V DC
Certificate Agency	CE, cULus, UKCA, RCM, EAC, cULus HazLoc
Carbon Footprint Of The End-of-life Phase [C1 To C4]	1.6025538372393264, 2 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	43 kg CO2 eq., 43.30471753919123
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	No
Field Service Division	IDIBS
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Bearing Track Assembly Possible	true
Front Installation Possible	false
Local Signalling	1 LED per channel (green) for output status
Network Type	DC
Power Supply Type	electronic powered by internal bus
Product Or Component Type	discrete output module
Radio Standard Bluetooth	false
Radio Standard Gsm	false
Range Of Product	Modicon TM3
Safety Reliability Data	MTBF = 99 years 40 °C
Software Version	v6.1
Supporting Protocol For Can	false
Supporting Protocol For Devicenet Safety	false
Supporting Protocol For Foundation Fieldbus	false
Supporting Protocol For Knx	false
Supporting Protocol For Modbus	false
Supporting Protocol For Profibus	false
Supporting Protocol For Profinet Io	false
Supporting Protocol For Safetybus P	false
Supporting Protocol For Suconet	false
Total Lifecycle Carbon Footprint	66 kg CO2 eq.
Certified For Ul Hazardous Location Class I	false
Certified For Ul Hazardous Location Class Iii	false
Certified For Ul Hazardous Location Division 2	false
Digital Outputs Configurable	false
Housing Color	grey
Digital Inputs Configurable	false
Time Delay At Signal Change	0.45-0.45 ms
Database Version	2023-02
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	To enhance the capabilities of Modicon M221, M262, M241 and M251 logic controllers by creating configurations with up to 264 digital I/O and up to 114 analog I/O, 57.20% of the time for 10 years.
Functional-unit Unit	unit
Energy Model - Manufacturing [A1-a3]	Taiwan, TW
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2018; China, CN
Recyclability Potential In %	3
Width Nominal	21.4 mm
Appendant Operation Agent (Ex Ib)	false
Certified For Ul Hazardous Location Group B (Hydrogen)	false
Certified For Ul Hazardous Location Group D (Propane))	false
Certified For Ul Hazardous Location Group F (Carbonaceous Dust)	false
Io-link Master Present	false
Rack-assembly Possible	false
Supporting Protocol For Data-highway	false
Supporting Protocol For Tcp/Ip	false
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8538908180

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Mounting Support	top hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit
Vibration Resistance	3 gn 8.4-150 Hz) on panel mounting3.5 mm 5-8.4 Hz) on DIN rail3 gn 8.4-150 Hz) on DIN rail, 3.5 mm 5-8.4 Hz) on panel mounting
Carbon Footprint Of The Distribution Phase [A4]	0.14966618892462366, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0 kg CO2 eq., 0.01765011563421985
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	21 kg CO2 eq., 21.060045327723248
Local Publishable Date	2026-01-12
Stocking Flag	N
Device Type	PLC System - PLC Component
Traceability	Yes
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1402009EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1901
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Market Segmentation	Industrial
Awg Gauge	26 AWG...16 AWG
Device Application	Industrial Application
Isolation Between Channels And Bus	500 V AC
Marking	CE
Optical Interface Present	false
Product Availability	Stock - Normally stocked in distribution facility
Protective Treatment	none
Radio Standard Gprs	false
Radio Standard Umts	false
Returnability	Yes
Shock Resistance	15 gn 11 ms
Supporting Protocol For Asi	false
Supporting Protocol For Devicenet	false
Supporting Protocol For Ethercat	false
Supporting Protocol For Interbus	false
Supporting Protocol For Lon	false
Supporting Protocol For Other Bus Systems	false
Supporting Protocol For Profinet Cba	false
Supporting Protocol For Profisafe	false
Supporting Protocol For Sercos	false
Sustainable Packaging	Yes
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Certified For Ul Hazardous Location Class Ii	false
Certified For Ul Hazardous Location Division 1	false
Dc Supply Voltage	24-24 V
Fieldbus Connection Over Separate Bus Coupler Possible	false
System Accessory	false
Short Circuit Protection Outputs Present	true
Pep Code	ENVPEP1402009EN
Pep Verification Date	2024-06-01
Psr Version	PSR-0005-ed3-EN-2023 06 06
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Installation [A5]	Electricity Mix; Low voltage; 2018; China, CN
Energy Model - End Of Life [C1-c4]	Electricity Mix; Low voltage; 2018; China, CN
Height Nominal	90 mm
Appendant Operation Agent (Ex Ia)	false
Certified For Ul Hazardous Location Group A (Acetylene)	false
Certified For Ul Hazardous Location Group C (Ethylene))	false
Certified For Ul Hazardous Location Group E (Metal Dusts)	false
Certified For Ul Hazardous Location Group G (Non Conductive Dust)	false
Performance Level According To En Iso 13849-1	none
Supporting Protocol For As-interface Safety At Work	false
Supporting Protocol For Ethernet/Ip	false
Wall Mounting/Direct Mounting Possible	false
Package Weight(Lbs)	200.000 g
Warranty (In Months)	18

Environment Attributes Main

Ambient Air Temperature For Operation	-10-35 °C vertical installation), -10-35 °C vertical installation), -10-55 °C horizontal installation), -10-55 °C horizontal installation)-10-35 °C vertical installation), -10-35 °C vertical installation), -10-55 °C horizontal installation)
Take Back	No
China Rohs Regulation	X
Mercury Free	Yes
Ambient Air Temperature For Storage	-25-70 °C-25-70 °C
Environmental Disclosure	ENVPEP1402009EN
Ip Degree Of Protection	IP20
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2024-06-01
Psr Version	PSR-0005-ed3-EN-2023 06 06

Relative Humidity	10-95 % without condensation for operation, 10-95 % without condensation for storage
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	66.13463300871265
Circularity Profile	ENVEOLI1402009EN
Eu Rohs Directive	Compliant
Operating Altitude	0...6561.68 ft (0...2000 m)
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP1402009EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review

General Attributes

Product Or Component Type	discrete output module

Range Of Product	Modicon TM3

ETIM

ETIM 8	EC001599

ETIM 9	EC001599

Output Attributes

Discrete Output Number	transistor, 16
Discrete Output Current	300 mA transistor output
Discrete Output Type	transistor
Discrete Output Voltage Type	AC/DC

Response Time On Output	450 µs maximum (turn on), 450 µs maximum (turn off)
Discrete Output Logic	negative logic (sink)
Discrete Output Voltage	24 V DCtransistor
