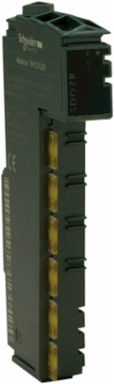

Schneider Electric TM5SDO2R Modicon TM5 Discrete Output Module 2 C/O, 5 A, 30 V DC/230 V AC
- MPN: TM5SDO2R
- PPN: SCH-TM5SDO2R
CAD
$146.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This discrete output module provides 2 discrete outputs with relay discrete output. Its output voltage limits are 184 to 276V AC, 24 to 36V DC, and provides a maximum power dissipation of 2.3W. This product is part of a flexible and scalable I/O configuration for automation solutions. There is an isolation between channel and bus at 500V AC. It is equipped with NO/NC contact. It is an IP20 rated product. Its housing colour is black.It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
Documentation & Downloads
Specifications
Key Specifications
- Discrete Output Type
- relay
- Product Or Component Type
- discrete output module
Range Of ProductModicon TM5
Discrete Output Number2
Complementary
- Discrete Output Function
- 2 C/O
- Output Voltage
- 230 V AC || 30 V DC
- Response Time
- <= 10 ms from state 0 to state 1 output || <= 10 ms from state 1 to state 0 output
- Net Weight
- 0.025 kg
- Current Consumption
- 90 mA 5 V DC bus
- Colour
- black
- Protection Type
- reverse polarity protection || without overload protection || without short-circuit protection
- Product Compatibility
- logic controller || PacDrive LMC Pro || motion controller || PacDrive LMC Pro 2 || PacDrive LMC Eco
Current Per Channel5 A
Maximum Current Per Output Common10 A
MarkingCE
Output Voltage Limits184...276 V AC || 24...36 V DC
Maximum Power Dissipation In W2.45 W
Isolationno insulation between channels || 500 Vrms AC insulation between channel and bus
Range CompatibilityPacDrive LMC motion controller || Modicon LMC058 || Modicon M258
Environment
- Product Certifications
- GOST-R || CSA || C-Tick || cULus
- Storage Altitude
- 0-3000 m
- Ambient Air Temperature For Operation
- -10-55 °C without derating horizontal installation) || -10-60 °C with derating factor horizontal installation) || -10-50 °C vertical installation)
- Vibration Resistance
- 1 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz DIN rail
- Pollution Degree
- 2 IEC 60664
- Relative Humidity
- 5-95 % without condensation
StandardsIEC 61131-2 || UL 508 || CSA C22.2 No 213 || CSA C22.2 No 142
Electromagnetic Compatibilityelectrostatic discharge immunity test, 4 kV on contact IEC 61000-4-2 || electrostatic discharge immunity test, 8 kV in air IEC 61000-4-2 || susceptibility to electromagnetic fields, 1 V/m 2...2.7 GHz IEC 61000-4-3 || susceptibility to electromagnetic fields, 10 V/m 80...2000 MHz IEC 61000-4-3 || electrical fast transient/burst immunity test, 1 kV I/O IEC 61000-4-4 || electrical fast transient/burst immunity test, 1 kV shielded cable IEC 61000-4-4 || electrical fast transient/burst immunity test, 2 kV power lines IEC 61000-4-4 || 1.2/50 µs shock waves immunity test, 0.5 kV differential mode IEC 61000-4-5 || 1.2/50 µs shock waves immunity test, 1 kV common mode IEC 61000-4-5 || conducted RF disturbances IEC 61000-4-6 || conducted and radiated emissions CISPR 11
Ip Degree Of ProtectionIP20IEC 61131-2
Shock Resistance15 gn 11 ms
Ambient Air Temperature For Storage-40-70 °C
Operating Altitude0...2000 m
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1511026EN
- Pvc Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI1511026EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
Reach Free Of SvhcYes
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
