Schneider Electric 170AMM09000 Modicon Momentum Distributed I/O Module, 24V DC, 0.24kg, 141.5mm x 47.5mm x 125mm
Schneider Electric 170AMM09000 Modicon Momentum Distributed I/O Module, 24V DC, 0.24kg, 141.5mm x 47.5mm x 125mm
- MPN: 170AMM09000
- PPN: SCH-170AMM09000
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$2685.48/ EA
Description

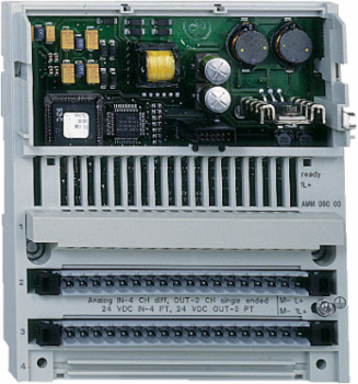

This product is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This distributed analogue/discrete module has 1 group of 2 discrete outputs, 4 discrete inputs, 4 analogue differential inputs and 2 analogue output with positive discrete input logic. It is an analogue/discrete module with a rated supply voltage of 24V DC, a discrete output current of 1A per point, 2A per group, 2A per module and a maximum power dissipation of 6W. It is furnished with 2 connectors for removable terminal blocks. Analogue input range of this product is ±10V, ±20mA, ±5V, 1V to 5V, 4mA to 20mA and analogue output range is ±10V 12bit and 0mA to 20mA 12bit. Its dimensions are 141.5mm (width) x 47.5mm (depth) x 125mm (height) and weighs 0.24kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, FM Class 1 Division 2, CSA and UL. Momentum is a flexible, modular family of fundamental components that easily snap together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.
Specifications
Environment
- Product Certifications
- UL || CSA || FM Class 1 Division 2
- Resistance To Electromagnetic Fields
- 10 V/m 80...1000 MHz IEC 801-3
- Relative Humidity
- 95-95 % without condensation
- Protective Treatment
- TC
Ambient Air Temperature For Operation0-60 °C
Ambient Air Temperature For Storage-40-85 °C
Resistance To Electrostatic Discharge4 kV contact IEC 801-2 || 8 kV on air IEC 801-2
Operating Altitude<= 5000 m
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1403005EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1403005EN
Complementary
- Electrical Connection
- 2 connectors for removable terminal blocks
- Height
- 125 mm
- Operating Rate
- 100 cyc/s resistive 1 A discrete output || 1000 cyc/h inductive 1 A discrete output || 8 cyc/s tungsten <2.4 W discrete output
- [Us] Rated Supply Voltage
- 24 VDC
- Maximum Voltage Drop
- <0.5 V 1 A at state on discrete output
- Response Time
- < 0.1 ms from state 0 to state 1 discrete output || < 0.1 ms from state 1 to state 0 discrete output || 2.2 ms from state 0 to state 1 discrete input || 3.3 ms from state 1 to state 0 discrete input
- Current State 1 Guaranteed
- >= 2.5 mA discrete input)
- Input Voltage Limits
- < 30 V
- Net Weight
- 0.24 kg
- Maximum Leakage Current
- 1 mA DC 24 V discrete output
- Isolation Voltage
- 500 V 1 min) between analogue I/O and operating voltage || 500 V 1 min) between operating voltage and I/O from ground
- Maximum Power Dissipation In W
- 6 W
- Input Overvoltage Protection
- -50-50 V <= 100 s analogue input circuit || -30-30 V 24 V analogue input circuit
- Input Resistance
- 1 MOhm analogue input circuit || 4 kOhm discrete input
- Conversion Time
- 1 ms analogue output || 10 ms analogue input circuit
- Width
- 141.5 mm
- Discrete Input Number
- 4 IEC 1131-2 Type 1
Discrete Output Typetransistor
Output Load<= 600 Ohm 0...20 mA analogue output || >= 3 kOhm +/- 10 V analogue output
Discrete Output Logicpositive
Conversion Error+/- 0.35 % +/- 10 V 25 °C analogue output || 0,0016 4...20 mA 25 °C analogue input circuit || 0,003 +/- 20 mA 60 °C analogue input circuit || 0,003 +/- 5 V 60 °C analogue input circuit || 0,003 1...5 V 60 °C analogue input circuit || 0,003 4...20 mA 60 °C analogue input circuit || +/- 0.35 % 0...20 mA 25 °C analogue output || +/- 0.70 % +/- 10 V 60 °C analogue output || +/- 0.70 % 0...20 mA 60 °C analogue output || 0,0008 +/- 10 V 25 °C analogue input circuit || 0,0015 +/- 10 V 60 °C analogue input circuit || 0,0016 +/- 20 mA 25 °C analogue input circuit || 0,0016 +/- 5 V 25 °C analogue input circuit || 0,0016 1...5 V 25 °C analogue input circuit
Conversion Consistency+/- 0.02 % +/- 10 V analogue input circuit || +/- 0.04 % +/- 20 mA analogue input circuit || +/- 0.04 % +/- 5 V analogue input circuit || +/- 0.04 % 1...5 V analogue input circuit || +/- 0.04 % 4...20 mA analogue input circuit
Current Consumption<= 350 mA 24 V DC || 200 mA 24 V DC
MarkingCE
Discrete Output Current1 A per point || 2 A per group || 2 A per module
Voltage State 0 Guaranteed-3...5 V discrete input
Voltage State 1 Guaranteed11...30 V discrete input
Current State 0 Guaranteed<= 1.2 mA discrete input)
Discrete Input Logicpositive
Fail Stateanalogue input circuit hold || analogue input circuit reset to zero
Local Signallingchannel status 8 LEDs
Common Mode Rejection> 54 dB analogue input circuit
Depth47.5 mm
Specifications
- Group Of Channels
- 1 group of 2 discrete outputs || 1 group of 4 discrete inputs || 1 group of 4 analog differential inputs || 1 group of 2 analog outputs
- Discrete Input Voltage
- 24 V DC
- Analogue Input Type
- differential
- Product Or Component Type
- analogue,discrete I/O base
- Analogue Output Range
- +/- 10 V 12 bits || 0...20 mA 12 bits
- Discrete Output Voltage
- <= 30 V
Range Of ProductModicon Momentum automation platform
Analogue Input Range+/- 10 V || +/- 20 mA || +/- 5 V || 1...5 V || 4...20 mA
Output Overload Protectionwith discrete output
Analogue Input Resolution12 bits 1...5 V || 12 bits 4...20 mA || 13 bits +/- 20 mA || 13 bits +/- 5 V || 14 bits +/- 10 V
Output Short-Circuit Protectionwith discrete output
