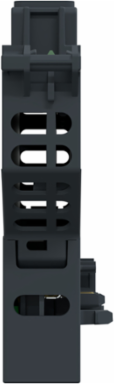

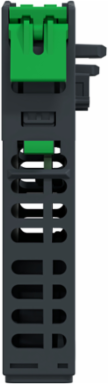

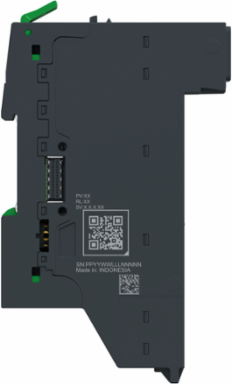

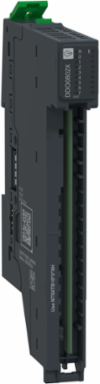

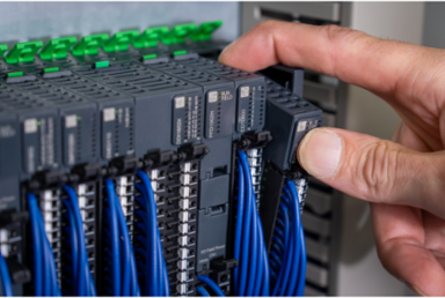

Schneider Electric NTSDDO0802XK Discrete Output Module + Base, 8 Out, 24V DC, 500mA, Source, Protected, 1/2 Wires, Modicon Edge I/O NTS
- MPN: NTSDDO0802XK
- PPN: SCH-NTSDDO0802XK
CAD
$272.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

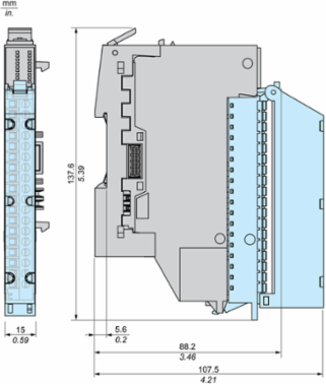

This discrete output kit is part of the Modicon Edge I/O NTS range. This kit is a preassembly of a base and a discrete output module. It features 8 discrete outputs that operate at 24VDC, with a current capacity of 500mA, with a source logic, with a 1-2-wire connection. It is used to send control signals to various devices based on the system's logic. It functions within a temperature range of minus 40 to 70 degrees Celsius. It measures 137.6mm high, 15mm wide, 88mm deep, and weighs 0.078kg. It is compatible with Modicon M262 and Modicon M580 Automation controller ranges and mounting accessories. The package contains the module already assembled at its base. The kit installs on a DIN rail, with a Mechanical locking clip. Modicon Edge I/O NTS is a future-ready I/O system for data aggregation. Modicon Edge I/O NTS is a robust distributed IP20 I/O system with wide choice of modules.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, United States
Depth80 mm
Physical Attributes
- Housing Color
- grey
Complementary Attributes
- Maximum Voltage Drop
- <0.1 V per channel DC, <0.1 V per channel DC, <0.1 V per channel DC<0.1 V per channel DC, <0.1 V per channel DC, <0.1 V per channel DC
- Maximum Tungsten Load
- <12 W<12 W
Maximum Leakage Current0.001 mA per channel
Rated Operational Voltage Limits20.4...28.8 V DC
Important Information Attributes
- Kit Composition
- NTSDDO0802X module, NTSXBA0200H base
- Mounting Support
- top hat type TH35-7.5 rail IEC 60715, top hat type TH35-15 rail IEC 60715
- Certificate Agency
- CE, UKCA, cULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending)
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.21008077453241944, 0.2 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 9 kg CO2 eq., 9.171576625878515
- Local Data Status
- Publishable
- Pre Comm Date
- 2025-01-31
- Stocking Flag
- N
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2410003EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2439
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Bearing Track Assembly Possible
- false
- Electrical Connection
- screw/spring terminal block
- Front Installation Possible
- false
- Isolation Between Channels And Bus
- 1500 V AC
- Local Signalling
- 1 LED (green) for module operating (RUN)1 LED per channel (green) for channel diagnostic1 LED (red) for module error (ERR)
- Network Type
- DC
- Optical Interface Present
- false
- Product Availability
- Stock - Normally stocked in distribution facility
- Radio Standard Bluetooth
- false
- Radio Standard Gsm
- false
- Range Of Product
- Modicon Edge I/O NTS
- Shock Resistance
- 15 g 11 ms with and without accessory)
- Supporting Protocol For Asi
- false
- Supporting Protocol For Devicenet
- false
- Supporting Protocol For Ethercat
- false
- Supporting Protocol For Interbus
- false
- Supporting Protocol For Lon
- false
- Supporting Protocol For Other Bus Systems
- false
- Supporting Protocol For Profinet Cba
- false
- Supporting Protocol For Profisafe
- false
- Supporting Protocol For Sercos
- false
- Sustainable Packaging
- Yes
- Typical Current Consumption
- 33.6 mA 24 V DC on the Bus current3.6 mA 24 V DC on the internal field current minimum4004.3 mA 24 V DC on the internal field current maximum
- Certified For Ul Hazardous Location Class I
- false
- Certified For Ul Hazardous Location Class Iii
- false
- Certified For Ul Hazardous Location Division 2
- false
- Digital Outputs Configurable
- false
- Housing Color
- grey
- Short Circuit Protection Outputs Present
- false
- Discrete Output Voltage 11
- 24 V DC
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To enable the control system to send control signals to actuate in Modicon Edge I/O System during 10 years with a 100% use rate. Typical power consumption is 0,79W (33mA at 24 VDC).To enable the control system to send control signals to actuate in Modicon Edge I/O System during 10 years with a 100% use rate. Typical power consumption is 0,79W (33mA at 24 VDC).
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Indonesia, ID
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Height Nominal
- 121 mm
- Appendant Operation Agent (Ex Ia)
- false
- Certified For Ul Hazardous Location Group A (Acetylene)
- false
- Certified For Ul Hazardous Location Group C (Ethylene))
- false
- Certified For Ul Hazardous Location Group E (Metal Dusts)
- false
- Certified For Ul Hazardous Location Group G (Non Conductive Dust)
- false
- Rack-assembly Possible
- false
- Supporting Protocol For As-interface Safety At Work
- false
- Supporting Protocol For Ethernet/Ip
- false
- Wall Mounting/Direct Mounting Possible
- false
- Package Weight(Lbs)
- 110.000 g
- Warranty (In Months)
- 18
MarkingCE, UKCA, cULus, RCM
Power Supply Typebus power from power supply bus (24 Vdc), field power from power supply field (24 Vdc)
Carbon Footprint Of The Distribution Phase [A4]0.11542000197901542, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.00018634603156437676
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]18 kg CO2 eq., 18.189977740468116
Local Publishable Date2026-01-12
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Product Kit IdentifierN
Device ApplicationIndustrial Application
Environmental Characteristicgas resistant C3 and G2standard environment
Hot Swapping Fallbackyes
Isolation Between Channels And Ground1500 V AC
Mandatory AccessoryNTSXTB18_0_H terminal block
Operating ModeSynchronous/Isochronous
Power Dissipation In W1.83 W maximum at 24 V DC
Product Or Component Typediscrete output module kit
Radio Standard Gprsfalse
Radio Standard Umtsfalse
ReturnabilityYes
Software Versionv6.1
Supporting Protocol For Canfalse
Supporting Protocol For Devicenet Safetyfalse
Supporting Protocol For Foundation Fieldbusfalse
Supporting Protocol For Knxfalse
Supporting Protocol For Modbusfalse
Supporting Protocol For Profibusfalse
Supporting Protocol For Profinet Iofalse
Supporting Protocol For Safetybus Pfalse
Supporting Protocol For Suconetfalse
Total Lifecycle Carbon Footprint28 kg CO2 eq.
Vibration Resistance1 g without accessory2 g with accessory
Certified For Ul Hazardous Location Class Iifalse
Certified For Ul Hazardous Location Division 1false
Dc Supply Voltage20.4-28.8 V
Fieldbus Connection Over Separate Bus Coupler Possiblefalse
System Accessoryfalse
Discrete Output Number 21 Discrete Output Typetransistor
Pep CodeENVPEP2410003EN
Pep Verification Date2024-11-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Europe, EU-27
Width Nominal15 mm
Appendant Operation Agent (Ex Ib)false
Certified For Ul Hazardous Location Group B (Hydrogen)false
Certified For Ul Hazardous Location Group D (Propane))false
Certified For Ul Hazardous Location Group F (Carbonaceous Dust)false
Io-link Master Presentfalse
Silcl Acc. To En 62061false
Supporting Protocol For Data-highwayfalse
Supporting Protocol For Tcp/Ipfalse
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8538908180
Environment Attributes Main
- Directives
- 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -20-60 °C-20-60 °C
- Circularity Profile
- ENVEOLI2410003EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 0...6561.68 ft (0...2000 m) without derating2000...5000 m with derating
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2410003EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
China Rohs RegulationX
Carbon Footprint27.68724148888963
Ambient Air Temperature For Storage-40-85 °C-40-85 °C
Environmental DisclosureENVPEP2410003EN
Ip Degree Of ProtectionIP20
Packaging Made With Recycled CardboardYes
Product CompatibilityNTSN.....
Relative Humidity5-95 % without condensation
Pep Verification Date2024-11-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- discrete output module kit
Range Of ProductModicon Edge I/O NTS
ETIM
- ETIM 8
- EC001599
ETIM 9EC001599
Output Attributes
- Output Diagnostic
- power supply error per channel, over current error per channel
- Paralleling Of Outputs
- yes for redundancy, yes for double current (maximum 2)
- Discrete Output Frequency
- 1 kHz for resistive load0.5/LI² Hz for inductive load
- Discrete Output Number
- transistor8
- Discrete Output Voltage
- 24 V DC
- Group Of Output Channels
- 1 group

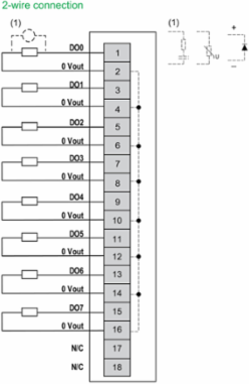

- Output Wiring Mode
- 1 or 2 wires
Output Protection Typetransient voltage suppression per channel, short circuit protection per channel, overload/thermal protection per channel, reverse polarity protection per module
Discrete Output Current8 A0.5 A per channel4 A per module
Discrete Output Logicpositive logic (source)
Discrete Output Typetransistor
Discrete Output Voltage TypeDC
Output Voltage Limits24 V
Response Time On Output90 µs maximum (turn on)110 µs maximum (turn off)
