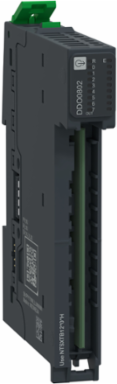

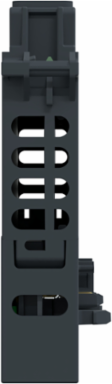

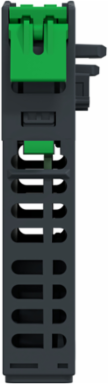

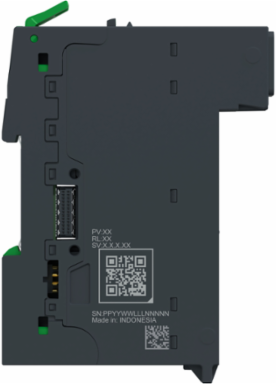

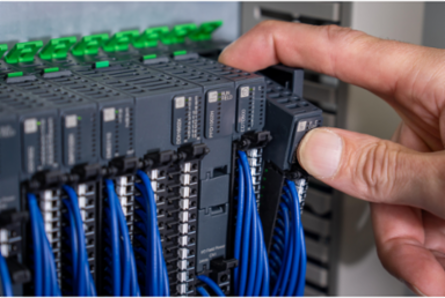

Schneider Electric NTSDDO0802K Discrete Output Module + Base, 8 Out, 24V DC, 2A, Source, Protected, External Supply, 1 Wire, Modicon Edge I/O NTS

MPN: NTSDDO0802K
PPN: SCH-NTSDDO0802K

$289.58

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

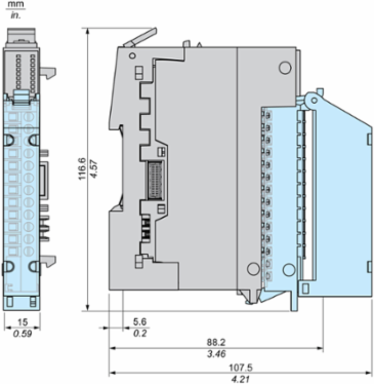

This discrete output kit is part of the Modicon Edge I/O NTS range. This kit is a preassembly of a base and a discrete output module. It features 8 discrete outputs that operate at 24VDC, with a current capacity of 2A, with a source logic, with a 1-wire connection. It is used to send control signals to various devices based on the system's logic. It functions within a temperature range of minus 40 to 70 degrees Celsius. It measures 116mm high, 15mm wide, 88mm deep, and weighs 0.072kg. It is compatible with Modicon M262 and Modicon M580 Automation controller ranges and mounting accessories. The package contains the module already assembled at its base. The kit installs on a DIN rail, with a Mechanical locking clip. Modicon Edge I/O NTS is a future-ready I/O system for data aggregation. Modicon Edge I/O NTS is a robust distributed IP20 I/O system with wide choice of modules.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, France, Indonesia, Philippines, United States

Depth	80 mm

Physical Attributes

Housing Color	grey

Complementary Attributes

Maximum Voltage Drop	<0.25 V per channel DC, <0.25 V per channel DC, <0.25 V per channel DC<0.25 V per channel DC, <0.25 V per channel DC, <0.25 V per channel DC
Maximum Tungsten Load	<12 W<12 W

Maximum Leakage Current	0.001 mA per channel
Rated Operational Voltage Limits	20.4...28.8 V DC

Important Information Attributes

Kit Composition	NTSDDO0802 module, NTSXBA0100H base
Mounting Support	top hat type TH35-7.5 rail IEC 60715, top hat type TH35-15 rail IEC 60715
Certificate Agency	CE, UKCA, cULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending)
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.20738743126918327, 0.2 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	9 kg CO2 eq., 9.053992310162123
Local Data Status	Publishable
Pre Comm Date	2024-12-19
Stocking Flag	N
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2410003EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2439
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Bearing Track Assembly Possible	false
Electrical Connection	screw/spring terminal block
Front Installation Possible	false
Isolation Between Channels And Bus	1500 V AC
Local Signalling	1 LED (green) for module operating (RUN)1 LED per channel (green) for channel diagnostic1 LED (red) for module error (ERR)
Network Type	DC
Optical Interface Present	false
Product Availability	Stock - Normally stocked in distribution facility
Radio Standard Bluetooth	false
Radio Standard Gsm	false
Range Of Product	Modicon Edge I/O NTS
Shock Resistance	15 g 11 ms with and without accessory)
Supporting Protocol For Asi	false
Supporting Protocol For Devicenet	false
Supporting Protocol For Ethercat	false
Supporting Protocol For Interbus	false
Supporting Protocol For Lon	false
Supporting Protocol For Other Bus Systems	false
Supporting Protocol For Profinet Cba	false
Supporting Protocol For Profisafe	false
Supporting Protocol For Sercos	false
Sustainable Packaging	No
Typical Current Consumption	33.6 mA 24 V DC on the Bus current0 mA 24 V DC on the internal field current
Certified For Ul Hazardous Location Class I	false
Certified For Ul Hazardous Location Class Iii	false
Certified For Ul Hazardous Location Division 2	false
Digital Outputs Configurable	false
Housing Color	grey
Short Circuit Protection Outputs Present	false
Discrete Output Voltage 11	24 V DC
Database Version	2023-02
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	To enable the control system to send control signals to actuate in Modicon Edge I/O System during 10 years with a 100% use rate. Typical power consumption is 0,79W (33mA at 24 VDC).To enable the control system to send control signals to actuate in Modicon Edge I/O System during 10 years with a 100% use rate. Typical power consumption is 0,79W (33mA at 24 VDC).
Functional-unit Unit	unit
Energy Model - Manufacturing [A1-a3]	Indonesia, ID
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2018; Europe, EU-27
Height Nominal	100 mm
Appendant Operation Agent (Ex Ia)	false
Certified For Ul Hazardous Location Group A (Acetylene)	false
Certified For Ul Hazardous Location Group C (Ethylene))	false
Certified For Ul Hazardous Location Group E (Metal Dusts)	false
Certified For Ul Hazardous Location Group G (Non Conductive Dust)	false
Rack-assembly Possible	false
Supporting Protocol For As-interface Safety At Work	false
Supporting Protocol For Ethernet/Ip	false
Wall Mounting/Direct Mounting Possible	false
Package Weight(Lbs)	101.000 g
Warranty (In Months)	18

Marking	CE, UKCA, cULus, RCM
Power Supply Type	bus power from power supply bus (24 Vdc), field power from external power supply (24 Vdc)
Carbon Footprint Of The Distribution Phase [A4]	0.11394025836389983, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0 kg CO2 eq., 0.00018395697987765396
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	18 kg CO2 eq., 18.189977740468116
Local Publishable Date	2026-01-12
Return Indicator	Y
Stock Policy	2
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Product Kit Identifier	N
Device Application	Industrial Application
Environmental Characteristic	standard environment
Hot Swapping Fallback	yes
Isolation Between Channels And Ground	1500 V AC
Mandatory Accessory	NTSXTB12_0_H terminal block
Operating Mode	Synchronous/Isochronous
Power Dissipation In W	1.68 W maximum at 24 V DC
Product Or Component Type	discrete output module kit
Radio Standard Gprs	false
Radio Standard Umts	false
Returnability	Yes
Software Version	v6.1
Supporting Protocol For Can	false
Supporting Protocol For Devicenet Safety	false
Supporting Protocol For Foundation Fieldbus	false
Supporting Protocol For Knx	false
Supporting Protocol For Modbus	false
Supporting Protocol For Profibus	false
Supporting Protocol For Profinet Io	false
Supporting Protocol For Safetybus P	false
Supporting Protocol For Suconet	false
Total Lifecycle Carbon Footprint	28 kg CO2 eq.
Vibration Resistance	1 g without accessory2 g with accessory
Certified For Ul Hazardous Location Class Ii	false
Certified For Ul Hazardous Location Division 1	false
Dc Supply Voltage	20.4-28.8 V
Fieldbus Connection Over Separate Bus Coupler Possible	false
System Accessory	false
Discrete Output Number 21 Discrete Output Type	transistor
Pep Code	ENVPEP2410003EN
Pep Verification Date	2024-11-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Installation [A5]	Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]	Electricity Mix; Low voltage; 2018; Europe, EU-27
Width Nominal	15 mm
Appendant Operation Agent (Ex Ib)	false
Certified For Ul Hazardous Location Group B (Hydrogen)	false
Certified For Ul Hazardous Location Group D (Propane))	false
Certified For Ul Hazardous Location Group F (Carbonaceous Dust)	false
Io-link Master Present	false
Silcl Acc. To En 62061	false
Supporting Protocol For Data-highway	false
Supporting Protocol For Tcp/Ip	false
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8538908180

Environment Attributes Main

Directives	2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Ambient Air Temperature For Operation	-20-60 °C-20-60 °C
Circularity Profile	ENVEOLI2410003EN
Eu Rohs Directive	Compliant By Exemption
Operating Altitude	0...6561.68 ft (0...2000 m) without derating2000...5000 m with derating
Packaging Without Single Use Plastic	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP2410003EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review

Take Back	No
China Rohs Regulation	X
Carbon Footprint	27.5654816972432
Ambient Air Temperature For Storage	-40-85 °C-40-85 °C
Environmental Disclosure	ENVPEP2410003EN
Ip Degree Of Protection	IP20
Packaging Made With Recycled Cardboard	No
Product Compatibility	NTSN.....
Relative Humidity	5-95 % without condensation
Pep Verification Date	2024-11-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

General Attributes

Product Or Component Type	discrete output module kit

Range Of Product	Modicon Edge I/O NTS

ETIM

ETIM 8	EC001599

ETIM 9	EC001599

Output Attributes

Output Diagnostic	external power supply error per channel, over current error per channel
Discrete Output Current	8 A2 A per channel4 A per group8 A per module
Discrete Output Logic	positive logic (source)
Discrete Output Type	transistor
Discrete Output Voltage Type	DC
Output Voltage Limits	24 V
Response Time On Output	90 µs maximum (turn on)110 µs maximum (turn off)

Output Protection Type	transient voltage suppression per channel, short circuit protection per channel, overload/thermal protection per channel
Discrete Output Frequency	1 kHz for resistive load0.5/LI² Hz for inductive load
Discrete Output Number	transistor8
Discrete Output Voltage	24 V DC
Group Of Output Channels	2 groups of 4 channels

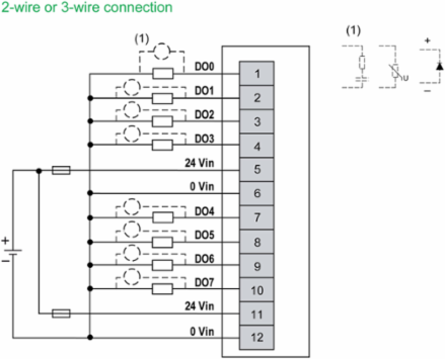

Output Wiring Mode	1 wire
