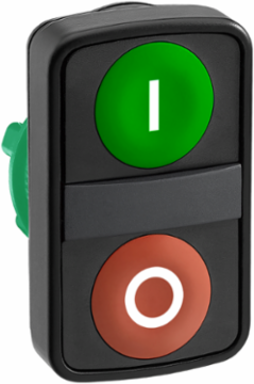

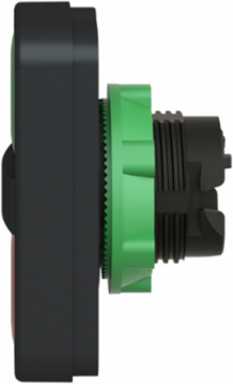

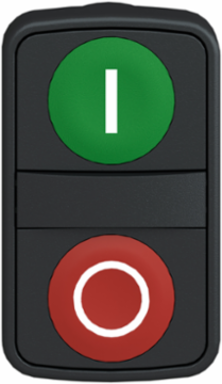

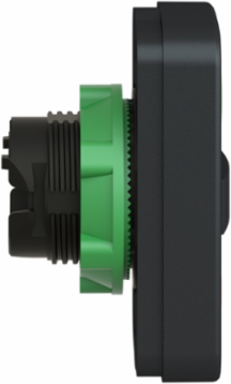

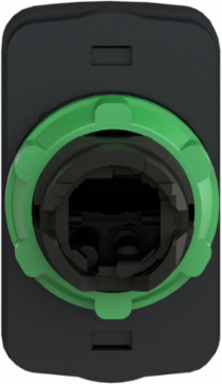

Schneider Electric ZB5AA7341 Harmony XB5 Double Head Push Button 22mm, IP66, Green I & Red O
Schneider Electric ZB5AA7341 Harmony XB5 Double Head Push Button 22mm, IP66, Green I & Red O
- MPN: ZB5AA7341
- PPN: SCH-ZB5AA7341
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$41.69/ EA
Description
This double head provides a versatile interface for controlling your machines, it has 1 red and 1 green buttons. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear colors. It is also distinguishable by touch due to flush elements, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Specifications
Environment
- Product Certifications
- CSA || LROS (Lloyds register of shipping) || UL listed || DNV || BV || GL
- Ambient Air Temperature For Operation
- -25-70 °C
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ip Degree Of Protection
- IP66 IEC 60529 || IP69K IEC 60529
- Ambient Air Temperature For Storage
- -40-70 °C
- Electrical Shock Protection Class
- class II IEC 60536
Ik Degree Of ProtectionIK03 conforming to IEC 50102
StandardsJIS C8201-5-1 || CSA C22.2 No 14 || IEC 60947-1 || IEC 60947-5-1 || UL 508 || IEC 60947-5-4 || JIS C8201-1
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Nema Degree Of ProtectionNEMA 13 || NEMA 4X
Protective TreatmentTH
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710010EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- ENVEOLI1710010EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Electrical Composition Code
- C3 6 single front mounting || C4 6 single and double front mounting || C14 2 single front mounting || SF2 2 single front mounting || SR2 2 single rear mounting
- Net Weight
- 0.023 kg
- Device Presentation
- basic element
- Mechanical Durability
- 1000000 cycles
- Cad Overall Width
- 30 mm
Colour Of Markingblack marking when white caps || white marking when green, red or black caps
Cad Overall Height50 mm
Operator Profilegreen flush, I white) || red flush, O white)
Station NameXALD 1 cut-out
Cad Overall Depth30 mm
Specifications
- Range Of Product
- Harmony XB5
- Type Of Operator
- spring return
- Product Or Component Type
- head for double-headed push-button
- Operator Profile
- 2 flush push-buttons
- Sale Per Indivisible Quantity
- 1
- Device Short Name
- ZB5
Mounting Diameter22 mm
Operators Descriptiongreen ''I'' - red ''O''
Shape Of Signaling Unit Headrectangular
Head Typestandard
Bezel Materialdark grey plastic
