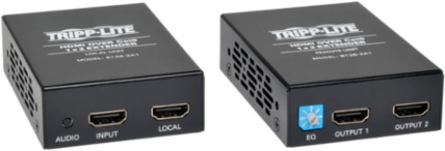

Tripp Lite B126-2A1 1 x 2 HDMI over Cat5/6 Extender Kit, Box-Style Transmitter/Receiver for Video/Audio, Up to 150 ft., TAA

1 x 2 HDMI over Cat5/6 Extender Kit, Box-Style Transmitter/Receiver for Video/Audio, Up to 150 ft., TAA - https://media.province-electric.com/tripplite/2020q1/fde9f3f376439985d8d23e2b0d0a73850ab2488f-medium.png

1 x 2 HDMI over Cat5/6 Extender Kit, Box-Style Transmitter/Receiver for Video/Audio, Up to 150 ft., TAA - https://media.province-electric.com/tripplite/2020q1/5652f34a514de56001d52c61ecd9d926c6227257-medium.png

1 x 2 HDMI over Cat5/6 Extender Kit, Box-Style Transmitter/Receiver for Video/Audio, Up to 150 ft., TAA

1 x 2 HDMI over Cat5/6 Extender Kit, Box-Style Transmitter/Receiver for Video/Audio, Up to 150 ft., TAA

1 x 2 HDMI over Cat5/6 Extender Kit, Box-Style Transmitter/Receiver for Video/Audio, Up to 150 ft., TAA

Tripp Lite B126-2A1 1 x 2 HDMI over Cat5/6 Extender Kit, Box-Style Transmitter/Receiver for Video/Audio, Up to 150 ft., TAA

MPN: B126-2A1
UPC: 037332180735
PPN: TRP-B126-2A1

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$539.67/ EA

Loading add to cart quantity...

Description

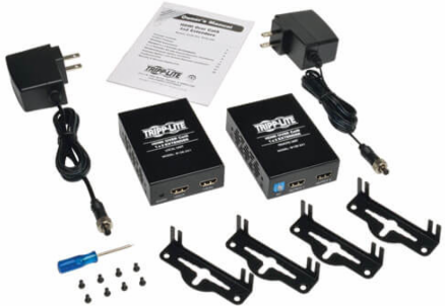

Transmitter and receiver work in tandem to extend an HDMI signal via a single Cat5e/6 cable to 2 projectors, monitors or televisions. Ideal for digital signs, schools and trade show presentations.

Features

Supports high-definition video resolutions up to 1080p (60 Hz)
Supports stereo and 7.1-channel surround sound audio
Works with all operating systems and HDMI video sources
Plug and play—no software or drivers to install
Built-in equalization control lets you adjust monitor image
1-year limited warranty

Specifications

Features & Specifications

Technology: HDMI

Connections

Ports: 2

Side A - Connector 2: RJ45 (FEMALE)

Side B - Connector 2: RJ45 (FEMALE)

Side A - Connector 1(2) HDMI (FEMALE)

Side B - Connector 1(2) HDMI (FEMALE)

Physical

Color: Black

Shipping Dimensions (hwd / in.): 8.40 x 6.50 x 2.20

Included Mounting AccessoriesYes

Shipping Weight (lbs.)1.80

Communications

Max 1024 x 768 Range (ft): 200

Max 1440 x 900 Range (ft): 200

Max 1080P Range (ft): 150

Max 640 x 480 Range (ft): 200

Max 1600 x 1200 Range (ft): 200

Max 480P Range (ft)200

Max 1080i Range (ft)200

Max 480i Range (ft)200

Max 800 x 600 Range (ft)200

Max 720P Range (ft)200

Environmental

Operating Temperature Range: 0 to 40 C (32 to 104 F)

Relative Humidity: 20% to 90% RH, Non-Condensing

Storage Temperature Range-20 to 60 C (-4 to 140 F)

Overview

UPC Code: 037332180735

AC AdapterInput: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 5 ft.

Warranty

Product Warranty Period (Worldwide): 1-year limited warranty
