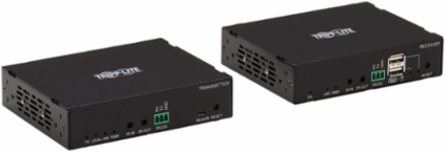

Tripp Lite B127E-1A1-HH HDMI Extender Kit 4K @ 60 Hz, 328 ft, Power over Cable, 7.1 Audio
- MPN: B127E-1A1-HH
- UPC: 037332239136
- PPN: TRP-B127E-1A1-HH
CAD
$930.39
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

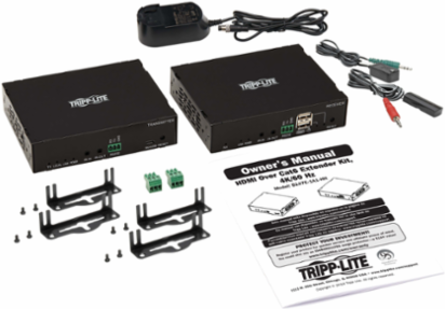

HDMI Extender Kit 4K @ 60 Hz, 328 ft, Power over Cable, 7.1 Audio
Features
- Delivers UHD picture quality at resolutions up to 3840 x 2160 (4K x 2K) @ 60 Hz
- Power over Cable (PoC) technology provides power to the receiver via Cat6 cable
- Transmitter’s local HDMI port feature multi-resolution support and allows you to see the Ultra HD image being displayed 328 ft away.
- Compatible with latest HDMI standards, including 4:4:4 subsampling
- USB, IR and RS-232 ports let you control the source device
- 1-year limited warranty
- HDMI Extender Ideal for Digital Signage or Displaying Video in Schools or Trade Show Booths
- Transmits Crystal-Clear 4K HDMI Video with Multi-Channel Audio and 4:4:4 Color
- Built-In PoC Technology Provides Receiver Power to Avoid Bulky External Power Bricks
- Start, Stop, Fast Forward, Pause, Rewind Video from More Than 300 ft. Away
- Plug-and-Play Operation for Quick Setup and Immediate Use
Documentation & Downloads
Specifications
Additional
- Max Supported Video Resolution
- 3840 x 2160 (4K x 2K) @ 60 Hz
- Power Over Cable (PoC) Support
- Yes
- Chroma Sub Sampling
- 4:4:4
- HDCP Specification
- 2.2
- External Power Supply Output
- 24V 1A
- Receiver Unit Dimensions
- 5.04 x 3.94 x 1.17 in
- Receiver Unit Weight
- 0.77 lbs
- Operating Temperature Range
- 32 to 104 F (0 to 40 C)
- Relative Humidity
- 0% to 85% RH, Non-Condensing
- Color
- Black
- Rackmountable
- Yes
Signal Range328 ft (100 m)
Audio Specification7.1 Channel Surround Sound, DTS-HD, Dolby-TrueHD
HDMI Specification2.0
Input Voltage Compatibility100-240V~ 50/60 Hz, 0.6A
External Power Supply Plug(s)AS/NZS 3112 Australia; BS 1363 UK; CEE 7/16 Schuko; NEMA 1-15P North America
Transmitter Unit Dimensions5.04 x 3.94 x 1.17 in
Transmitter Unit Weight0.77 lbs
Storage Temperature Range5 to 122 F (-15 to 50 C)
MaterialMetal
ComplianceCE, FCC, RoHS, REACH
