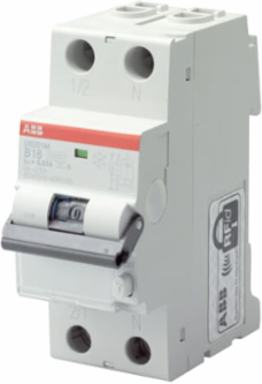

ABB 2CSR275140R0164 DS201 M C16 A10 - RCBO
- MPN: 2CSR275140R0164
- UPC: 888614241596
- PPN: ABB-2CSR275140R0164
CAD
$767.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The DS201 series RCBO is a 1P+N in two-modules device for the protection of end user single-phase circuits against overload and short-circuit currents; protection against the effects of sinusoidal alternating and direct pulsating earth fault currents; protection against indirect contacts and additional protection against direct contacts (with sensitivity = 30 mA).
Specifications
Dimensions
- Product Net Width
- 0.035 m
- Product Net Depth / Length
- 0.069 m
Product Net Height0.085 m
Product Net Weight0.239 kg
Technical
- Standards
- IEC 61009-1IEC 61009-2-1EN 61009-1EN 61009-2-1
- Number of Poles
- 1+N
- Rated Current (In)
- 16 A
- Rated Insulation Voltage (Ui)
- 500 V
- Pollution Degree
- 2
- Rated Short-Circuit Capacity (Icn)
- (230 / 400 V AC) 10 kA
- Tripping Characteristic
- C
- Electrical Endurance
- 10000 cycle
- Degree of Protection
- IP2X
- Power Supply Connection
- Arbitrary
- Power Loss
- 3.4 W
Type of Residual CurrentA type
Number of Protected Poles1
Rated Voltage (Ur)230-240 V AC
Overvoltage CategoryIII
Rated Frequency (f)50...60 Hz
Rated Ultimate Short-Circuit Breaking Capacity (Icu)10 kA
Energy Limiting Class3
Mechanical Endurance (Nendu)20000 cycle
Connecting CapacityBusbar 10 mm²Rigid 25 …25 mm²Flexible 25 …25 mm²
Position of Neutral TerminalsRight
Container Information
- Package Level 1 Units
- 1 piece
- Package Level 1 Height
- 0.106 m
- Package Level 1 Gross Weight
- 0.225 kg
- Package Level 2 Units
- 5 piece
- Package Level 2 Height
- 0.106 m
- Package Level 2 Gross Weight
- 1.125 kg
Package Level 1 Width0.040 m
Package Level 1 Depth / Length0.080 m
Package Level 1 EAN8012542124757
Package Level 2 Width0.200 m
Package Level 2 Depth / Length0.080 m
Package Level 2 EAN8012542124764
Classifications
- Object Classification Code
- Q
- ETIM 5
- EC000905 - Earth leakage circuit breaker
- ETIM 7
- EC000905 - Earth leakage circuit breaker
ETIM 4EC000905 - Earth leakage circuit breaker
ETIM 6EC000905 - Earth leakage circuit breaker
Environmental
- Ambient Air Temperature
- Operation -25...55 °C
RoHS StatusFollowing EU Directive 2011/65/EU
Technical UL/CSA
- Short-Circuit Current Rating (SCCR)
- 0.01 A
Ordering
- Minimum Order Quantity
- 1 piece
- Replacement Product ID (NEW)
- 2CSR275180R0164
Customs Tariff Number85363010
