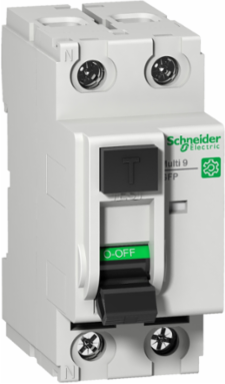

Schneider Electric M9R41225 Multi9 GFP Residual Current Circuit Breaker 2P 25A 30mA IP20/IP40
- MPN: M9R41225
- PPN: SCH-M9R41225
CAD
$763.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Multi GFP product is a residual current circuit breaker (RCCB). It is a 2P circuit breaker with 25A In rated current, 26mA earth leakage sensitivity and A-SI type protection class. It protects persons against electric shock by direct contact. It also protects installations against fire risks. The tripping upon fault is indicated by a red mechanical status indicator on the front panel. The A-SI type offers enhanced immunity to electrical disturbances. This product is dedicated to original equipment manufacturers (OEM) and control panel builders in indisutrial and tertiary buildings. It is compliant with IEC/EN 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 1500A. The (Inc/IΔc) conditional rated short circuit current is 10kA. It has a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz or 60Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 81mm x (D) 60mm. The weight is 0.22kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 70°C.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Spain, France, Mexico, United States
Depth60 mm
Physical Attributes
- Color
- Gray
Wire Stripping Length14 mm for top or bottom connection
Complementary Attributes
- Line Rated Current
- 25 A 40 °C EN/IEC 61008-1
Rated Breaking And Making CapacityIdm 1500 A EN/IEC 61008-1
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Poles Description
- 2P
- Connections - Terminals
- tunnel type terminals (top or bottom)1-25 mm² (18 AWG...3 AWG) - flexibletunnel type terminals (top or bottom)1-35 mm² (18 AWG...2 AWG) - rigid, tunnel type terminals (top or bottom)1-25 mm² (18 AWG...3 AWG) - flexible with ferrule
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.679389575001311, 0.7 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 3 kg CO2 eq., 2.65180023010561
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 3
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Market Segmentation Id
- COMMERCIAL
- Product Kit Identifier
- N
- Contact Position Indicator
- yes
- Device Application
- distribution
- Electromagnetic Compatibility
- 8/20 µs impulse withstand, 3000 A EN/IEC 61008-1
- Local Signalling
- ON, OFF, fault trip
- Mechanical Durability
- 20000 cycles
- Mounting Support
- DIN rail
- Network Type
- AC
- Number Of Poles
- 2P
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- residual current circuit breaker (RCCB)
- Range Of Product
- Multi9
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 18 kg CO2 eq.
- Tropicalisation
- 2 IEC 60068-1
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Earth Leakage Sensitivity 1
- 30 mA
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect during 20 years the installation against overloads and short-circuits and people and premises at risk of fire or explosion against insulation defects in circuit with assigned voltage 400V and rated current 40A. This protection is ensured in accordance with the following parameters:& 10- Number of poles 4& 10- Sensitivity 300mA& 10- Type of differential protection AC
- Functional-unit Unit
- Unit
- Energy Consumption On Product Lifetime In Kwh
- 36.792
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27
- Height Nominal
- 81 mm
- [Ue] Rated Operational Voltage
- 480Y/277 V AC 60 Hz240/415 V AC 50 Hz
- [Uimp] Rated Impulse Withstand Voltage
- 6 kVEN/IEC 61008-1
- Rated Conditional Short-circuit Current
- Inc 10 kA 100 A gG
- Earth-leakage Protection Time Delay
- instantaneous
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536200040
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Certificate AgencyIEC, UL
Carbon Footprint Of The Distribution Phase [A4]0.0364069023692282, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.0163089293723848
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]15 kg CO2 eq., 15.0798148148148
Local Publishable Date2026-07-13
Stocking FlagN
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityNo
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date0627
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Market SegmentationCommercial
Connection Pitch18 mm between phases
Control Typetoggle
Device Short NameGFP
Energy Efficiency OptimizedFalse
Locking Options Descriptionpadlocking in OFF position
Mounting Modeclip-on
Network Frequency50/60 Hz
Neutral Positionleft
Power Losses Per Pole1.4 W
Product NameMulti9 GFP
RangeMulti9
Residual Current Tripping Technologyvoltage independent
Software Versionv5.9.4
Tightening Torque3.5-3.5 N.m top or bottom
Total Power Losses2.8 W
Utilisation CategoryAC-23A EN/IEC 61008-1
Rated Current 325 A
Pep CodeENVPEP2301023EN
Pep Verification Date2025-04-20
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2018; Spain, SP
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential In %59
Width Nominal36 mm
[Ui] Rated Insulation Voltage440 V AC 50/60 Hz
Earth-leakage Sensitivity26 mA UL 105330 mA EN/IEC 61008-1
Earth-leakage Protection Classtype A-SI (Super Immunised)
Halogen-free StatusProduct contains halogen above thresholds
Package Weight(Lbs)212.000 g
Warranty (In Months)18
Tsca RegulationDoes not contain Section 6H Chemical
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-70 °C, -40-70 °C
- Halogene Performance
- Product contains halogen above thresholds
- China Rohs Regulation
- X
- Carbon Footprint
- 18.4637204516633
- Ambient Air Temperature For Operation
- -25-60 °C-25-60 °C
- Eu Rohs Directive
- Compliant By Exemption
- Ip Degree Of Protection
- IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 95-95 % 55-55 °C
- Pep Verification Date
- 2025-04-20
- Psr Version
- PSR-0005-ed2-2016 03 29
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
9 Mm Pitches4
Environmental DisclosureENVPEP2301023EN
Halogen Content PerformanceProduct contains halogen above thresholds
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2301023EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- residual current circuit breaker (RCCB)
