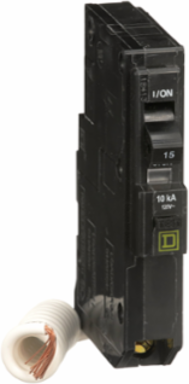

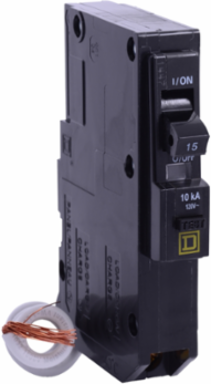

Square D QO115EPD Miniature Circuit Breaker, 15A, 1 Pole, 120V AC, 10kA, Ground Fault 30mA
- MPN: QO115EPD
- UPC: 785901763789
- PPN: SCH-QO115EPD
CAD
$302.72
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Square D™ QO™ and QOB Miniature Circuit Breakers, QO115EPD, come in plug-in mounted version and in a complete range of amperages and interrupting ranges to fit into various QO distribution panels. Are designed to provide ground fault protection of equipment. UL listed CSA certified This 1 pole QO circuit breaker is rated at 15A at 120VAC. This unit provides 10kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes a 30mA ground fault B protection. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
Features
- The Schneider Square D QO115EPD is an Equipment Protective Device (EPD) designed specifically to protect machinery, not people. While a standard GFCI trips at 5mA to prevent human electrocution, this EPD breaker features a 30mA trip threshold. This prevents "nuisance tripping" caused by the natural leakage current found in industrial heating cables, heat trace systems, and large motor loads while still providing critical fire protection.
- Rated for 15 Amps and 120V, this breaker is the industry standard for protecting 120V equipment that is susceptible to ground fault damage but operates with slight electrical "leakage." It is most commonly used for roof and gutter de-icing tapes, pipe heat tracing, and specialized commercial kitchen equipment where a standard 5mA GFCI would be too sensitive.
- Like all premium QO breakers, this unit includes the Visi-Trip™ red indicator. When the breaker trips, a highly visible red flag appears in the handle window. This allows maintenance staff to instantly distinguish a tripped breaker from one that has simply been turned off, drastically reducing the time spent diagnosing power issues in a crowded panel.
- The QO115EPD features the classic Square D QO plug-on design, allowing it to snap directly onto the bus bar of any QO load center or NQ/NQOD panelboard. It occupies a single 3/4-inch space, making it a compact solution for adding specialized equipment protection without needing to move or reconfigure existing circuits.

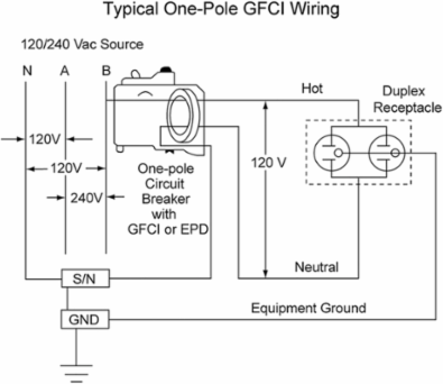

- Engineered with sophisticated electronic sensing, the EPD breaker monitors the balance between the hot and neutral conductors. If it detects a leakage to ground exceeding 30mA, it trips the circuit in milliseconds. This high-speed reaction prevents internal component arcing and localized heating that could otherwise lead to catastrophic equipment failure or electrical fires.
Documentation & Downloads
Specifications
Additional
- Voltage
- 120 V AC
- Interrupt Rating
- 10 kA 120 V AC 50/60 Hz
- Poles
- 1P
- Wire Size
- AWG 14...AWG 8 copper, AWG 12...AWG 8 aluminum

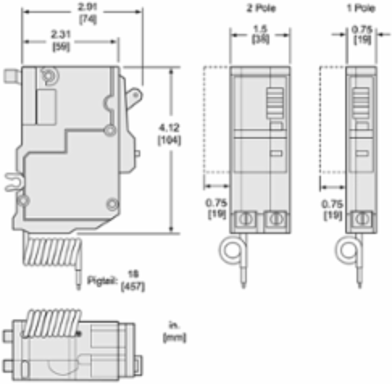

- Height
- 105 mm (4.13 in)
- Depth
- 74 mm (2.91 in)
- Material
- pressure plate
- Ambient Temperature Rating
- 40 °C (104 °F)
- Mercury Free
- Yes
Current Rating15 A
Ground Fault ProtectionClass B 30 mA
Mounting TypePlug-in
Tightening Torque4-4.6 N.m, AWG 12...AWG 4
Width19 mm (0.75 in)
Weight0.231 kg (0.51 lb)
CertificationsUL Listed, CSA Certified
ComplianceREACH, EU RoHS, China RoHS
