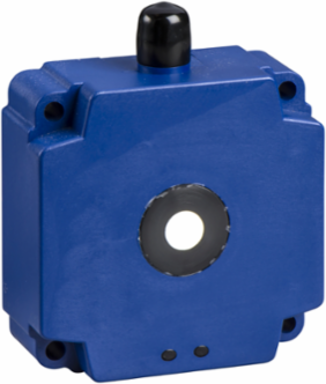

Telemecanique Sensors XX8D1A1PAM12 Ultrasonic sensors XX, ultrasonic sensor 80x80, Sn 1 m, NO, M12 connector
- MPN: XX8D1A1PAM12
- PPN: TES-XX8D1A1PAM12
- UNSPSC: 39122230
CAD
$399.33
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The XX range is an offer of sensors using the ultrasonic technology for the detection of any material, without contact. This product features a flat format, plastic case, 80mm x 80mm x 34mm, and an M12, 4-pin connector. DC supply, NO function, PNP solid-state output, diffuse system. Its sensing distance is 1m, remotely adjustable or by using teach button.
Documentation & Downloads
Specifications
Key Specifications
- [Us] Rated Supply Voltage
- 12...24 V DC reverse polarity protection
- Discrete Output Function
- 1 NO
- Range Of Product
- Telemecanique Ultrasonic sensors XX
- [Sd] Sensing Range
- 0.1-1 m
- Wiring Technique
- 4-wire
- Series Name
- general purpose
- Detection System
- diffuse
- Electrical Connection
- male connector M12 4 pins
- [Sn] Nominal Sensing Distance
- 1-1 m adjustable with remote teach push-button
Discrete Output TypePNP
Type Of Output Signaldiscrete
Sensor NameXX8
Materialplastic
Ip Degree Of ProtectionIP67 conforming to IEC 60529
Beam Angle7 °
Sensor Typeultrasonic sensor
Sensor Designflat form 80 x 80 x 34
Complementary
- Repeat Accuracy
- 0.9 %
- Maximum Switching Current
- 100 mA
- Switching Frequency
- <= 70 Hz
- Maximum Voltage Drop
- 1.5 V
- Transmission Frequency
- 180 kHz
- Marking
- CE
- Net Weight
- 0.3 kg
- Maximum Differential Travel
- 2.5 mm
- Maximum Delay Recovery
- 75 ms
- Supply Voltage Limits
- 10-28 V DC
- Width
- 83 mm
- Depth
- 34 mm
Height80 mm
Minimum Size Of Detected Objectcylinder diameter 50.8 mm 1 m
Maximum Delay Response15 ms
Status Ledsetting-up assistance 1 LED dual colour) || supply on 1 LED green) || output state 1 LED yellow)
[Sa] Assured Operating Distance0.1-1 m teach mode)
Blind Zone0-100 mm
Current Consumption60 mA
Deviation Angle From 90° Of Object To Be Detected-7-7 °
Maximum Delay First Up75 ms
Enclosure Materialvalox
Front Materialepoxy
Environment
- Product Certifications
- UL || cCSAus
- Resistance To Electromagnetic Fields
- 10 V/m level 3 IEC 61000-4-3
- Vibration Resistance
- +/-1 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-80 °C
- Resistance To Fast Transients
- 1 kV level 3 IEC 61000-4-4
Ambient Air Temperature For Operation0-70 °C
StandardsIEC 60947-5-2
Shock Resistance30 gn in all 3 axes 11 ms IEC 60068-2-27
Resistance To Electrostatic Discharge8 kV level 4 IEC 61000-4-2
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111234EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI111225EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
