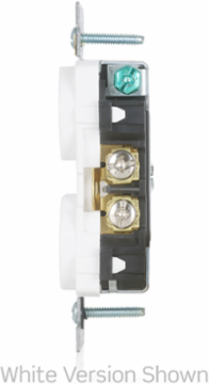

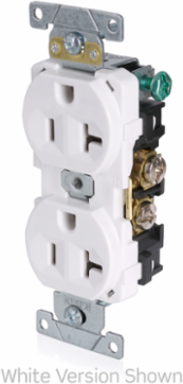

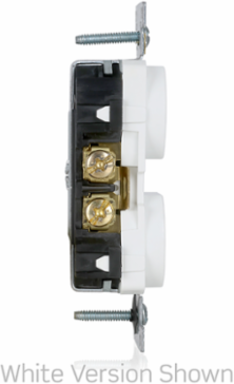

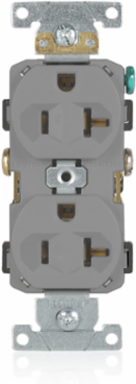

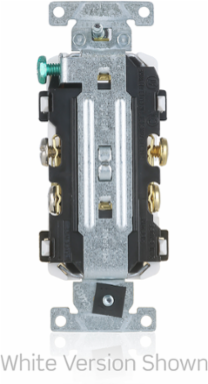

Leviton BR20-GY 20 Amp Duplex Receptacle Outlet, Commercial Grade, Self-Grounding, NEMA 5-20R
- MPN: BR20-GY
- UPC: 078477965269
- PPN: LEV-BR20-GY
CAD
$10.59
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Duplex Receptacle Outlet, Commercial Specification Grade, Indented Face, 20 Amp, 125 Volt, Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - Gray
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Standards and Certifications
- ANSI
- C-73
- Certification Listing
- NOM
- Warranty
- 10-Year Limited
Applicable StandardsUL 498| Fed Spec W-C-595G| CSA C22.2 No. 42
NEMAWD-1 & WD-6
Material Specifications
- Body Material
- Polypropylene
- Face Material
- Nylon
- Grounding Screw
- Steel 8-32
- Strap Material
- Zinc-Plated Steel
Clamp NutsBrass
Ground ClipsBrass
Line ContactsBrass Triple-Wipe .031 Thick
Terminal ScrewsPlated Steel 8-32
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
- Terminal Accom.
- 14-10 AWG
- Termination
- Back or Side Wire
Screw Terminal Torque14-18 in-lbs
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Product Features
- Color
- Gray
- Feature 4
- Indented Face
Device TypeDuplex Receptacle Outlet
GradeCommercial Specification Grade
Environmental Specifications
- Operating Temperature
- -40°C to 60°C
Electrical Specifications
- Amperage
- 20 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Voltage
- 125 VAC
Current LimitingFull Rated Current
GroundingSelf-Grounding
Temperature RiseMax 30C after 100 cycles OL at 150 percent rated current
Wire3
AC Horsepower Ratings
- At Rated Voltage
- 1 HP
