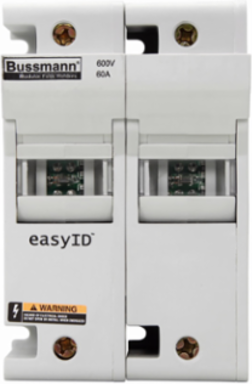

Bussmann CH60J2I Modular Fuse Holder 600 Vac, 600 Vdc, 60A, Two-Pole, Neon Lamp, 3.31 Inch Width
- MPN: CH60J2I
- UPC: 051712630924
- PPN: BUS-CH60J2I
CAD
$130.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Eaton Bussmann series CH modular fuse holder, 60 A, Two-pole, 85, Celsius, Class J, Thermoplastic housing, Tin-plated copper clip, Panel, 35 mm DIN rail, 600 Vac/dc
Features
- Engineered for high-capacity applications, this 60 Amp, 600 Vac/VDC Class J fuse holder delivers robust circuit protection for demanding electrical panels, machinery, and industrial control circuits. By providing stable performance under maximum load conditions, it prevents premature tripping and safeguards your downstream equipment from costly electrical damage.
- Featuring a built-in neon lamp open-fuse indicator, this module provides immediate visual identification of a cleared fuse without requiring a digital multimeter. This localized troubleshooting feature minimizes diagnostic timelines, allowing industrial technicians to swiftly replace fuses and restore operational uptime.
- This 2-pole modular holder is designed to safely isolate severe electrical faults before they cascade through your system. This exceptional threshold makes it ideal for high-fault current environments, guaranteeing structural integrity and compliance with rigorous UL and CSA standards.
- This space-saving modular unit supports both standard 35mm DIN rail mounting and direct panel-surface installation, accommodating diverse electrical enclosure configurations. The snap-on design drastically reduces labor overhead and installation time, fitting seamlessly into tight footprints without compromising wire management.
Documentation & Downloads
Specifications
Additional
- Voltage AC
- 600 Vac
- Current
- 60 A
- Product Width
- 3.31 in
- Product Height
- 4.88 in
- Material
- Tin-plated copper clip; Thermoplastic Housing
Voltage DC600 Vdc
PolesTwo-Pole
Product Length/Depth3.16 in
Product Weight1.133 lb
ComplianceRoHS Compliant
