Bussmann

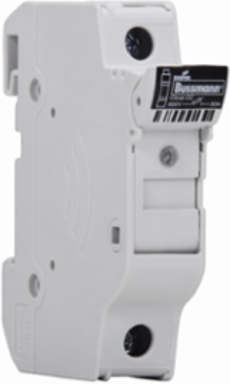

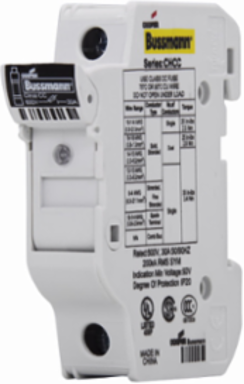

Bussmann CHCC1DI-48U Modular Fuse Holder 48 Vdc 30A Single-pole 0.69 Inch Depth 3.28 Inch Width

Modular Fuse Holder 48 Vdc 30A Single-pole 0.69 Inch Depth 3.28 Inch Width
Modular Fuse Holder 48 Vdc 30A Single-pole 0.69 Inch Depth 3.28 Inch Width
Modular Fuse Holder 48 Vdc 30A Single-pole 0.69 Inch Depth 3.28 Inch Width
  • MPN: CHCC1DI-48U
  • UPC: 051712362818
  • PPN: BUS-CHCC1DI-48U

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$29.40/ EA

Description

Modular Fuse Holder 48 Vdc 30A Single-pole 0.69 Inch Depth 3.28 Inch Width

Specifications

Voltage
48 Vdc
Number of Poles
Single-pole
Operating Temperature
-20° to 120°C
Product Depth
0.69 in
Product Height
2.91 in
Mounting
35 mm DIN-Rail
Terminal Type
Single or dual conductors, standard phil-slot or optional hex head screws
Compliances
RoHS Compliant, UL Listed, cULus, CSA, IEC 60269-2, CCC
Amperage30 A
Short-Circuit Current Rating (SCCR)200 kA RMS Symmetry (fuse interrupting rating dependent)
ClassClass CC
Product Width3.28 in
Product Weight0.22 lb
Wire Range#18 to #4 AWG (0.8 to 21.1 mm²) Cu, 75°C and 90°C
TypeModular fuse holder
