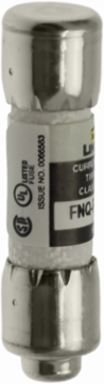

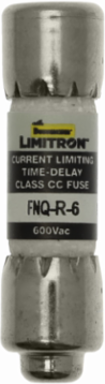

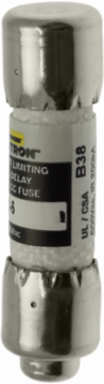

Current-limiting Time-delay Fuse 6 A, 600 V, 200 kAIC, Melamine Tube

Current-limiting Time-delay Fuse 6 A, 600 V, 200 kAIC, Melamine Tube - https://images.province-electric.com/BUS-FNQ-R-6/eaton-bussmann-series-fnq-r-medium-alt-oxnv.webp

Documentation & Downloads

Bussmann FNQ-R-6 Current-limiting Time-delay Fuse 6 A, 600 V, 200 kAIC, Melamine Tube

MPN: FNQ-R-6
UPC: 051712497008
PPN: BUS-FNQ-R-6

CAD

$20.47

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Company Stock:

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Compare

Description

Current-limiting Time-delay Fuse 6 A, 600 V, 200 kAIC, Melamine Tube

Features

Engineered specifically to handle intense inductive inrush currents, the FNQ-R-6 features a built-in 12-second time-delay at 200% load. This specialized calibration prevents frustrating, premature nuisance tripping caused by small control transformers and industrial motors, keeping your automated production lines and control panels continuously operational.
As an advanced LIMITRON™ protection device, it offers up to 10X better current limitation compared to standard supplemental fuses, rapidly choking off massive fault currents before they can devastate your downstream electronics. This high-performance protection minimizes localized arc-flash energy, shielding expensive PLC modules and control circuits from catastrophic thermal or magnetic damage.
Designed with a strict physical rejection tip, this 13/32" x 1-1/2" cartridge fuse is mechanically keyed to seat perfectly into dedicated Class CC rejection-style blocks and DIN-rail holders. This mechanical safety barrier guarantees maintenance personnel cannot mistakenly install a lesser-rated supplementary fuse, enforcing strict compliance with NEC® and UL branch-circuit hardware mandates.
Boasting an exceptional 200,000 AIC rating at 600Vac, this fuse safely clears heavy short-circuit faults on massive industrial power grids without violently rupturing. This extreme interrupting capability ensures your control panels easily fulfill strict OSHA and NEC® Section 110.9 safety guidelines for high-capacity branch circuit environments.

Documentation & Downloads

Specifications

Additional

Voltage: 600 Vac

Interrupt Rating: 200 kA

Fuse Type: Current-limiting, time-delay

Diameter: .41 in (±0.005)

Connection: Ferrule end x ferrule end

Class: Class CC

Special Features: Rejection style

Amperage6 A

Response Time12 sec at 200%

Length1.5 in (±0.031)

Weight.15 lb

MaterialMelamine tube

Fuse IndicatorNon-indicating

ComplianceUL Listed, CSA Certified, CE, RoHS compliant
