Current-Limiting Time-Delay Fuse 15 A, 200 kAIC at 600 V, Ferrule End

Documentation & Downloads

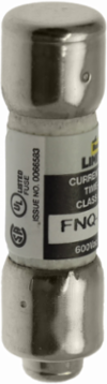

Bussmann FNQ-R-15 Current-Limiting Time-Delay Fuse 15 A, 200 kAIC at 600 V, Ferrule End

MPN: FNQ-R-15
UPC: 051712497114
PPN: BUS-FNQ-R-15

CAD

$18.57

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Compare

Description

Current-Limiting Time-Delay Fuse 15 A, 200 kAIC at 600 V, Ferrule End

Features

The Bussmann FNQ-R-15 is a Class CC Limitron™ fuse, specifically engineered for "Branch Circuit" protection. It is a current-limiting device, meaning it reacts within milliseconds to "clamp" a short circuit before the current can reach its full destructive peak. This is critical for meeting Canadian Electrical Code (CEC) requirements for protecting sensitive control transformers and industrial components.
As a Class CC fuse, the FNQ-R-15 features a specialized physical rejection tip. This prevents it from being replaced by a standard "midget" fuse (like the FNQ or BAF series) which lacks the high interrupting rating required for branch circuits. This "foolproof" design ensures your control panel maintains its safety rating even after field maintenance.
Designed with Time-Delay characteristics, this 15-Amp fuse is optimized to handle the massive momentary current surges (inrush) common with control transformers and small motors. It allows these surges to pass without "nuisance blowing," while still providing high-speed protection against sustained overloads and dangerous short circuits.
The FNQ-R-15 is fully rated for 600V AC and boasts a massive 200,000 Amp Interrupting Rating (AIR). This ultra-high fault capacity allows it to be used safely in virtually any industrial environment in Canada, ensuring the fuse won't rupture or fail violently even when connected to a high-energy service entrance.
The Class CC size (13/32" x 1-1/2") is the smallest branch-circuit rated fuse available. This allows Canadian panel builders to provide "big fuse" protection in a very small space, enabling the design of more compact and cost-effective control cabinets for HVAC, manufacturing, and automation systems.

Documentation & Downloads

Specifications

Additional

Amperage: 15 A

Voltage Rating: 600 Vac, 300 Vdc

Type: Current-limiting time-delay fuse

Connection: Ferrule end x ferrule end

Product Height: 1.5 in

Product Weight: 0.15 lb

Special Features: Rejection style

Compliance: CE Marked, RoHS Compliant

Interrupt Rating200 kAIC at 600 Vac, 20 kAIC at 300 Vdc

Response Time12 sec at 200%

ClassClass CC

Product Length/Depth0.41 in

Product Width0.41 in

MaterialMelamine tube

Fuse IndicatorNon-indicating
