Current-Limiting Time-Delay Fuse 12 A, 200 kAIC, Ferrule x Ferrule, Dual, Melamine

Documentation & Downloads

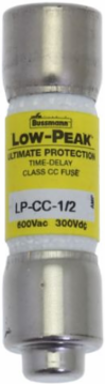

Bussmann LP-CC-12 Current-Limiting Time-Delay Fuse 12 A, 200 kAIC, Ferrule x Ferrule, Dual, Melamine

MPN: LP-CC-12
UPC: 051712180252
PPN: BUS-LP-CC-12

CAD

$17.20

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Current-Limiting Time-Delay Fuse 12 A, 200 kAIC, Ferrule x Ferrule, Dual, Melamine

Features

ngineered with an advanced dual-element, time-delay design, this 12-Amp fuse easily tolerates temporary inductive current surges and motor starting spikes without blowing. By providing a minimum 12-second time-delay at 200% of its rated current, it eliminates expensive operational downtime caused by harmless, momentary overloads while maintaining tight protection for your machinery.
Featuring a standardized physical rejection tip, this Class CC fuse ensures strict mechanical compatibility with specialized safety fuse holders like the Bussmann CH Series. This fail-safe dimension physically prevents the dangerous accidental insertion of lower-rated or standard midget fuses, guaranteeing your control panels stay fully compliant with NEC Article 240 and 430 requirements.
Boasting a maximum current interrupting rating (IR) of 200,000 Amps RMS Symmetrical at 600V AC, this current-limiting fuse provides exceptional overcurrent protection. It acts as a high-speed barrier that clears catastrophic short-circuits instantly, limiting destructive electromagnetic and thermal energy to safeguard downstream automation components and panel interiors.
This fuse utilizes highly engineered current-limiting metallurgy to clear faults within microseconds long before the short-circuit current can peak. This rapid response vastly reduces the peak let-through energy (I^2t), providing critical protection for sensitive solid-state relays, variable frequency drives (VFDs), and small control transformers that are highly vulnerable to overcurrent damage.

Documentation & Downloads

Specifications

Additional

Amperage: 12 A

Type: Current-limiting time-delay fuse

Length: 1.5 in

Depth: .41 in

Class: Class CC

Voltage Rating: 600 Vac, 150 Vdc

Connection: Ferrule end x ferrule end

Fuse Indicator: Non-indicating

Interrupting Rating200 kA at 600 Vac

Size13/32 in x 1-1/2 in (10 mm x 38 mm)

Width.41 in

MaterialMelamine tube

ElementsDual

Response Time12 sec at 200%

ComplianceCE Marked

Weight.15 lb
