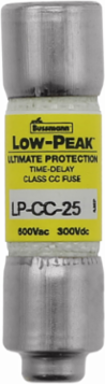

Current-limiting Time-Delay Fuse, 25 A, Ferrule End x Ferrule End, 600 Vac, 300 Vdc

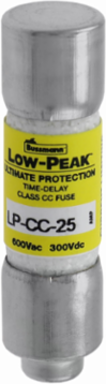

Current-limiting Time-Delay Fuse, 25 A, Ferrule End x Ferrule End, 600 Vac, 300 Vdc - https://images.province-electric.com/BUS-LP-CC-25/eaton-bussmann-series-lp-cc-medium-alt-lddw.webp

Documentation & Downloads

Bussmann LP-CC-25 Current-limiting Time-Delay Fuse, 25 A, Ferrule End x Ferrule End, 600 Vac, 300 Vdc

MPN: LP-CC-25
UPC: 051712180283
PPN: BUS-LP-CC-25

CAD

$17.20

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Company Stock:

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Compare

Description

Current-limiting Time-Delay Fuse, 25 A, Ferrule End x Ferrule End, 600 Vac, 300 Vdc

Features

Measuring a compact 13/32" x 1-1/2", this current-limiting fuse features a specialized rejection tip designed exclusively for Class CC fuse blocks and disconnect switches. This fail-safe physical design completely prevents the accidental installation of standard, under-rated midget fuses, ensuring your high-density control panels maintain strict UL compliance and protecting personnel from potential arc flash hazards.
Engineered with Low-Peak® time-delay technology, this 25-amp fuse safely holds 200% of its rated current for a minimum of 12 seconds to effortlessly absorb harmless transient power surges. This critical characteristic eliminates the expensive frustration of nuisance blowing during initial motor startups or transformer power-ups, keeping your automated manufacturing lines running smoothly without sacrificing critical overcurrent defense.
Delivering an industry-leading 200,000 Amp Short Circuit Current Rating (SCCR) at 600V AC, this highly responsive current-limiting component isolates high-magnitude electrical faults in a fraction of an AC cycle. By choking off thermal and magnetic energy before it can spread downstream, it actively prevents severe heat damage to expensive motor controllers, relays, and contactors, drastically reducing equipment replacement costs and facility downtime
Fully UL Listed (Standard 248-4) and CSA Certified, this versatile Bussmann fuse provides trusted branch-circuit protection across a wide array of both alternating and direct current power distribution systems. Relying on factory-tested, premium hardware ensures your specialized commercial HVAC equipment, industrial control boards, and lighting circuits easily meet rigorous National Electrical Code (NEC) standards and pass strict local safety inspections.

Documentation & Downloads

Specifications

Additional

Amperage Rating: 25 A

Interrupting Rating: 200 kAIC at 600 Vac, 20 kA Vdc

Type: Current-limiting time-delay fuse

Dimensions: 1.5 in x 0.41 in

Class: Class CC

Number of Elements: Dual

Compliances: UL Listed Class CC, CSA Certified, CE Marked, RoHS compliant

Voltage Rating600 Vac, 300 Vdc

Response Time12 sec at 200% rated current

ConnectionFerrule end x ferrule end

MaterialMelamine tube

Fuse IndicatorNon-indicating

Special FeaturesRejection style

Product Weight.15 lb
