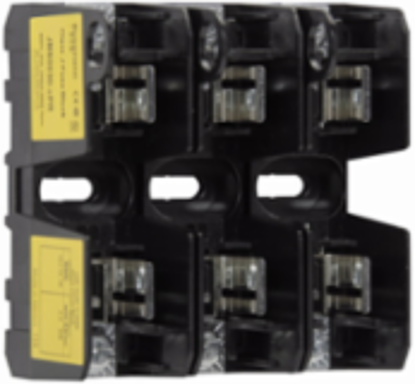

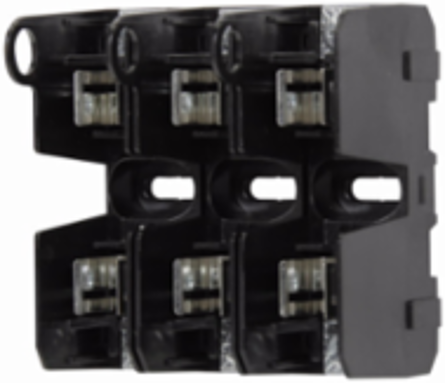

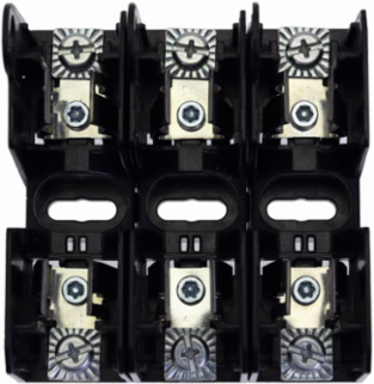

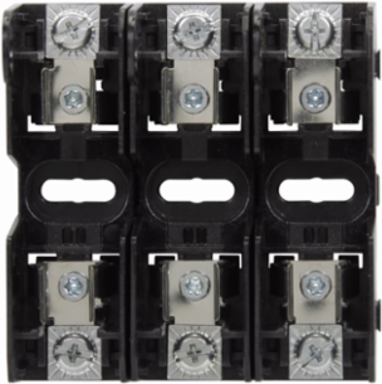

Bussmann JM60030-3PR Modular Fuse Block 600V 0-30A Three-Pole Grit 200kA
- MPN: JM60030-3PR
- UPC: 051712514620
- PPN: BUS-JM60030-3PR
CAD
$75.47
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Eaton Bussmann series JM modular fuse block, 0-30 A, Three-pole, Class J, 200 kA, Screw with pressure plate, 200 kAIC, 600 V
Features
- Engineered precisely for demanding 3-phase applications, this 3-pole modular fuse block accommodates a 0 to 30 Amp current range and is fully rated for up to 600VAC / 300VDC. This ensures robust branch circuit protection and high performance within complex electrical assemblies, machinery, and OEM control systems.
- By pairing this holder with a certified Class J fuse, your system achieves an exceptional short-circuit current rating (SCCR) of up to 200kA, delivering maximum fault current protection to downstream electronics.
- Constructed from heavy-duty, self-extinguishing thermoplastic rated at UL 94-V0, this block features factory-installed, spring-reinforced fuse clips to ensure tight, reliable mechanical contact over its entire service life. This specific design minimizes internal contact resistance and mitigates temperature rise, protecting your sensitive control cabinets from thermal degradation.
- This model is fully UL Listed (File E14853 - IZLT), CSA Certified, CE marked, and RoHS compliant, ensuring it passes strict facility inspections and satisfies NEC code mandates for branch circuit protection. Additionally, it features structural compatibility with optional IP20 finger-safe, see-through safety covers, allowing safe voltage probing and thermography testing without removing circuit protection.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600V
- Interrupting Capacity
- 200 kA
- Type
- Modular fuse block
- Product Weight
- .1 lb
- Product Length/Depth
- .001 in.
- Compliances
- RoHS Compliant
Amperage0-30A
Number of PolesThree-pole
ClassClass J
Product Height.001 in.
Product Width.001 in.
