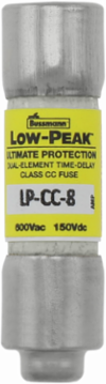

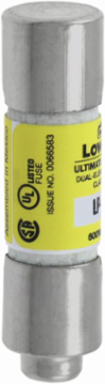

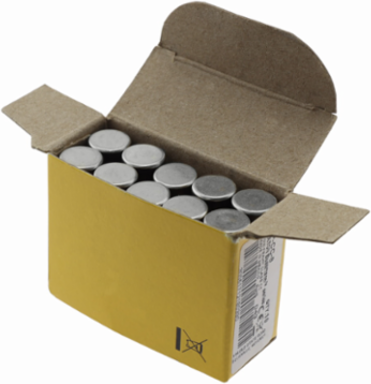

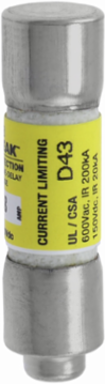

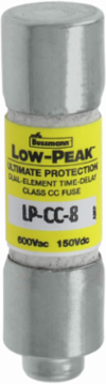

Current-Limiting Time-Delay Fuse, 8 A, Dual, Ferrule End x Ferrule End, 20 kAIC at 150 Vdc

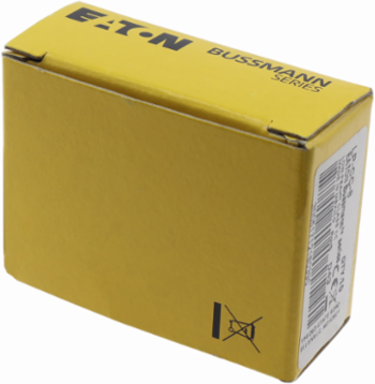

Current-Limiting Time-Delay Fuse, 8 A, Dual, Ferrule End x Ferrule End, 20 kAIC at 150 Vdc - https://images.province-electric.com/BUS-LP-CC-8/eaton-bussmann-series-lp-cc-medium-alt-qbtr.webp

Documentation & Downloads

Bussmann LP-CC-8 Current-Limiting Time-Delay Fuse, 8 A, Dual, Ferrule End x Ferrule End, 20 kAIC at 150 Vdc

MPN: LP-CC-8
UPC: 051712180399
PPN: BUS-LP-CC-8

CAD

$17.20

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Company Stock:

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Compare

Description

Current-Limiting Time-Delay Fuse, 8 A, Dual, Ferrule End x Ferrule End, 20 kAIC at 150 Vdc

Features

This Low-Peak™ fuse provides a superior branch circuit rating in a compact 13/32" x 1-1/2" footprint, making it the ideal solution for high-density control panels. Its specialized Class CC rejection tip prevents the installation of lower-rated fuses, ensuring that your critical motor controllers and industrial branch circuits always have the highest level of protection available.
Specifically engineered to handle the high inrush currents of 600V control transformers and small motors, this 8-amp fuse features a dual-element design that provides a minimum 12-second delay at 200% of its rated current. This eliminates annoying nuisance trips caused by heavy startup loads while still offering lightning-fast response to dangerous short circuits.
With a massive 200,000 Amp interrupting rating (IR), this fuse is designed to safely clear catastrophic short circuits at the source. This high SCCR (Short Circuit Current Rating) helps your facility comply with NEC® Section 110.10 requirements, protecting your expensive downstream equipment from explosive thermal and magnetic forces during a major electrical fault.
As a UL Listed Class CC current-limiting fuse, the LP-CC-8 reacts significantly faster than standard circuit breakers, "cutting off" the fault current before it reaches its full peak. This rapid energy limitation prevents heat damage to contactors, relays, and solid-state components, drastically extending the lifespan of your automated machinery and reducing overall maintenance costs.

Documentation & Downloads

Specifications

Additional

Amperage: 8 A

Interrupting Rating: 20 kAIC at 150 Vdc

Response Time: 12 sec at 200%

Product Length: 1.5 in

Product Height: .41 in

Number of Elements: Dual

Class: Class CC

Special Features: Rejection style

Product Weight: .15 lb

Voltage Rating600 Vac, 150 Vdc

Fuse TypeCurrent-limiting, Time-delay

ConnectionFerrule end x ferrule end

Product Width.41 in

MaterialMelamine tube

Fuse IndicatorNon-indicating

TypeCurrent-limiting time-delay fuse

ComplianceCE, UL Listed, CSA Certified, RoHS Compliant
