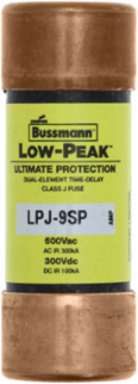

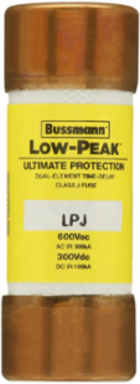

Bussmann LPJ-9SP Current-limiting Fuses 9A, 600 Vac, 300 Vdc, 0.81 Inch Diameter
- MPN: LPJ-9SP
- UPC: 051712523486
- PPN: BUS-LPJ-9SP
CAD
$24.05
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Bussmann s current-limiting fuses are engineered for specialized circuits and industrial control applications, offering reliable performance with an amperage rating of 9A. Designed with a response time of just 10 seconds at 500%, these time-delay fuses ensure that overcurrent situations are managed efficiently, reducing the risk of equipment damage. Operating at a voltage rating of 600 Vac and 300 Vdc, the fuses feature a dual element design encased in a compact 0.81-inch diameter, making them suitable for tight installations while delivering exceptional interrupt ratings of 300 kAIC at 600 Vac and 100 kAIC at Vdc. This combination of robust specifications and thoughtful design makes them an indispensable component for power distribution systems.
Features
- Engineered with a 9-Amp capacity and a robust 600 Vac/300 Vdc dual-rating, this Class J fuse provides ultimate circuit protection for specialized machinery. It ensures your low-amperage control circuits and motors remain operational without premature blowing, saving you from costly unexpected downtime.
- Featuring an advanced dual-element design with a minimum 10-second time-delay at 500% overload, it safely tolerates harmless temporary inrush currents. This eliminates the headache of nuisance tripping while still delivering rapid, razor-sharp response times when an actual destructive short-circuit occurs.
- Boasting a massive 300,000-Amp interrupting rating (AIR) at 600 Vac, this fuse provides industry-leading current limitation by rapidly clearing faults before they reach downstream components. It significantly reduces destructive thermal and magnetic forces, protecting your expensive automated systems from catastrophic failure.
- Built strictly to standardized UL Class J physical dimensions, this compact cartridge fuse features a space-saving design that easily drops into any standard 0-30A Class J fuse holder. Its distinct physical sizing prevents the accidental installation of a lower-rated or non-current-limiting fuse, ensuring strict code compliance and foolproof safety.
- This product is fully UL Listed (Class J, Guide JDDZ, File E4273) and CSA Certified, meeting all stringent North American electrical safety mandates. Investing in these certified Low-Peak fuses guarantees your panels pass inspections seamlessly while ensuring a higher level of workplace safety for your maintenance crew.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 Vac, 300 Vdc
- Interrupting Rating
- 300 kAIC at 600 Vac, 100 kAIC at 300 Vdc
- Type
- Current-limiting, Time-delay
- Fuse Indicator
- Non Indicating
- Class
- Class J
- Diameter
- 0.81 in
- Current Limitation
- Yes
Amperage9A
Response Time10 seconds at 500% rated current
Number of ElementsDual
ConnectionFerrule end X ferrule end
Length2.25 in
ApplicationSpecialized circuits and industrial control
