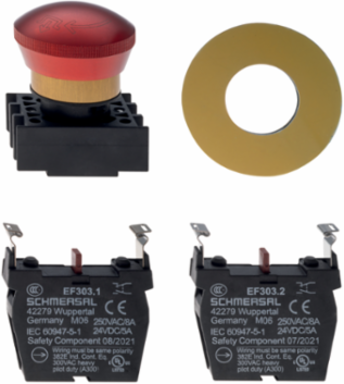

Schmersal 103008214 Emergency Stop Pushbutton, IP65, 2 NC/2 NO Contacts, 46 mm Length
- MPN: 103008214
- PPN: SCM-103008214
CAD
$179.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Emergency Stop Pushbutton, IP65, 2 NC/2 NO Contacts, 46 mm Length
Specifications
Key Specifications
| Length | 46 mm |
|---|---|
| Depth | 65 mm |
| Height | 29 mm |
|---|
Electrical data
| Thermal test current | 10 A |
|---|---|
| Utilisation category AC-15 | 8 A |
| Utilisation category DC-13 | 5 A |
| Switching principle | Slow action |
| Switching frequency | 600 /h |
| Utilisation category AC-15 | 230 VAC |
|---|---|
| Utilisation category DC-13 | 24 VDC |
| Switching element | NC contact, NO contact |
| Bounce duration, maximum | 5 ms |
Mechanical data - Dimensions
| Height | 29 mm |
|---|---|
| Diameter of cap | 38.5 mm |
| Thickness, of the front panel, minimum | 1.5 mm |
| Depth | 65 mm |
|---|---|
| Mounting diameter | 22.3 mm |
| Thickness of the front panel, maximum | 6 mm |
Ambient conditions - Insulation values
| Rated insulation voltage U | 400 V |
|---|
General data - Features
| Safety functions | Yes |
|---|---|
| Fully insulated | Yes |
| Number of normally open (NO) | 2 |
| Latching | Yes |
|---|---|
| Number of normally closed (NC) | 2 |
General data
| Standards | EN ISO 13850 | EN IEC 60947-5-1 | EN IEC 60947-1 |
|---|---|
| Design | Round |
| Contact labelling | 11-12 | 23-24 |
| Gross weight | 80 g |
| Versions | Pushbutton |
|---|---|
| Material of the operators | Aluminium |
| Colour of the operating element | Red |
Ambient conditions
| Degree of protection | IP65 |
|---|---|
| Degree of protection of clips or terminals | IP20 |
| Restistance to shock | 70 g / 4 ms |
| Degree of protection of the switch rooms | IP40 |
|---|---|
| Ambient temperature | -25 ... +80 °C |
| Resistant to vibration | Resistance to vibration: 20 g / 10…200 Hz |
Mechanical data - Connection technique
| Termination | Screw terminals M20 x 1.5 |
|---|---|
| Cable section, maximum | 2.5 mm², rigid | 1.5 mm², flexible |
| Cable section, minimum | 0.5 mm², rigid | 0.5 mm², flexible |
|---|---|
| Note (Cable section) | All indications including the conductor ferrules. |
Mechanical data
| Unlocking | roatation draw unlocking |
|---|---|
| Actuating stroke | 5 mm |
| Contact opening | 3 mm NO | 3 mm NC |
| Tightening torque of the screw | 0.6 Nm |
| Mechanical life, minimum | 100,000 Operations |
|---|---|
| Positive break travel | 2 mm |
| Mounting | Mounting flange ELM |
| Mounting flange position | 1 + 3 |
Approvals - Standards
| Certificates | cULus | CCC |
|---|
