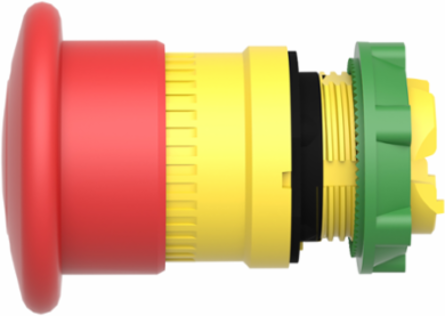

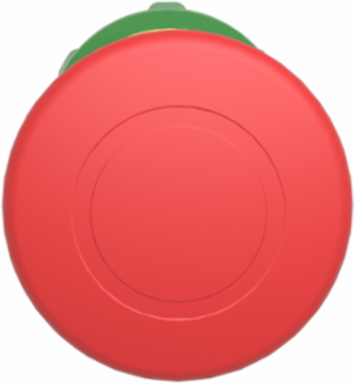

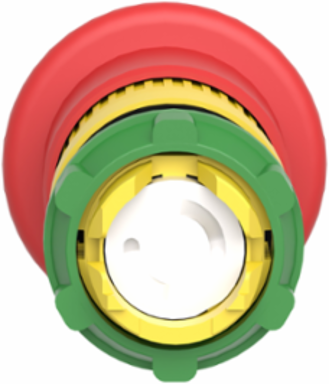

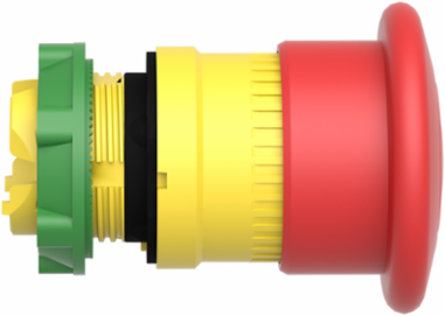

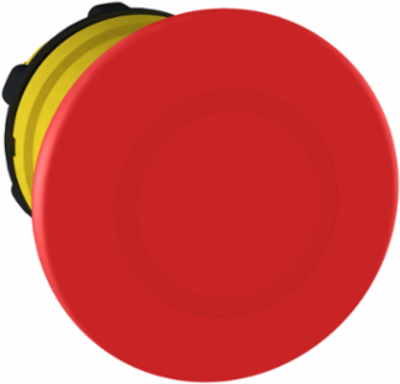

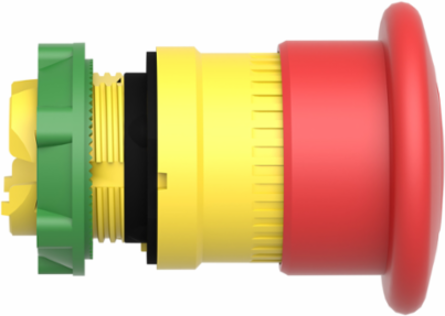

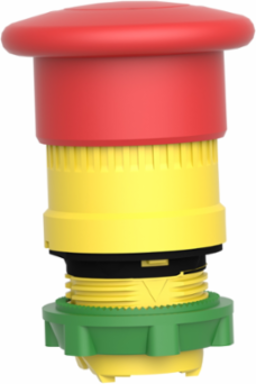

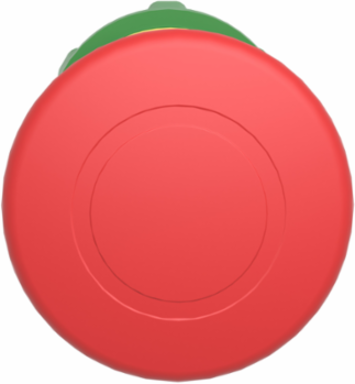

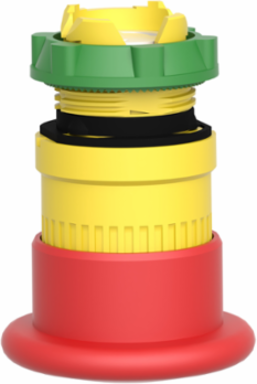

Schneider Electric ZB5AT84 Harmony XB5 Emergency Stop Push-Button Head, 40mm Red Mushroom, IP66/IP67/IP69K
- MPN: ZB5AT84
- PPN: SCH-ZB5AT84
CAD
$43.05
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony XB5, Emergency stop 40mm mushroom red button head operates with a push-pull mechanism. This emergency stop / shutdown button head, is easily combined with contact blocks and installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Features
- Featuring a prominent 40mm red mushroom cap, this operator provides a large, unmistakable target that complies with strict OSHA and international emergency machinery guidelines. The oversized design allows industrial operators to actuate the shutdown instantly using a palm, fist, or glove, minimizing reaction times during critical safety interventions.
- Built on Schneider s versatile 22mm plastic bezel platform, this modular head drops seamlessly into standard industrial pilot holes and pairs with any Harmony XB5 contact block body. The high-grade, corrosion-resistant plastic construction delivers excellent resistance to chemical washdowns, oil, and impact, making it a cost-effective, long-lasting choice for food processing and manufacturing floors.
- Boasting IP66, IP67, IP69, and NEMA 4X environmental ratings, this E-stop head is fully dust-tight and sealed against high-pressure water jets and heavy seas. This heavy-duty protection prevents water ingress from destroying underlying contact blocks, making it highly dependable for outdoor conveyor systems, marine equipment, and sterile washdown zones.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, Germany, France, United States
Physical Attributes
- Cad Overall Depth
- 56 mm
- Cad Overall Width
- 40 mm
Cad Overall Height40 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- 0, no
- Operator Profile
- red mushroom Ø 40 mm, unmarked, mushroom Ø 40 mm
- Operator Profile 1 Operator Profile
- mushroom Ø 40 mm
- Carbon Footprint Of The Distribution Phase [A4]
- 0.004446062717770035, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.011859613557174532, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- N
- Weee Scope
- Out
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Percentage Of Recycled Plastic Content
- 7 %
- Compatibility Code
- ZB5
- Group Of Product
- emergency stop pull to release
- Main Group
- E-stop
- Mechanical Durability
- 300000 cycles
- Overvoltage Category
- class II conforming to IEC 60536
- Product Destination
- emergency stop push-button
- Protective Treatment
- TH
- Reset
- push-pull
- Returnability
- Yes
- Shape Of Signaling Unit Head
- round
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 0.4 kg CO2 eq.
- Vibration Resistance
- 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- XB5 emergency stop mushroom head modular pushbutton operates with a latched-turn-to-release mechanism. It has a plastic bezel and it is supplied with a red mushroom diameter 40 mm unmarked. It is easily installed into a standard 22mm diameter panel cut-out. Product meets the international standards such as IEC 60947-1 and IEC 60204 -1.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; APAC
- Recyclability Potential In %
- 21
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8538908180
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electrical Composition CodeC7 4 single front mountingC8 4 single and double front mountingC11 3 single front mountingC15 1 single front mounting, SF1 3 single front mountingSR1 3 single rear mounting, C10 4 single and double front mounting
Station NameXALD 1 cut-out, XALK 1 cut-out
Certificate AgencyCSA, DNV, BV, LROS (Lloyds register of shipping), UL Listed
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.06003579347481787
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.3 kg CO2 eq., 0.2742562559391828
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2308012EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Percentage Of Recycled Metal Content60 %
Bezel Materialdark grey plastic
Device Short NameZB5
Head Typestandard
Markingunmarked

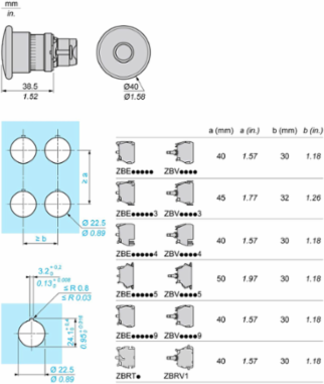

Mounting Diameter22.5 mm
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typehead for emergency stop push-button
Range Of ProductHarmony XB5
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity1
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Sustainable PackagingYes
Type Of Operatortrigger action and mechanical latching
Pep CodeENVPEP2308012EN
Pep Verification Date2023-10-30
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; APAC
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; APAC
Cap/Operator Or Lens Colourred
Package Weight(Lbs)47.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP67, IP69, IP69K
- Take Back
- No
- Recycled Metal Content At Cr Level
- 60 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.3505977256889452
- Environmental Disclosure
- ENVPEP2308012EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2308012EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionUL type 4X/13, NEMA 13, NEMA 4X
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2308012EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-10-30
Psr VersionPSR-0005-ed2-2016 03 29
