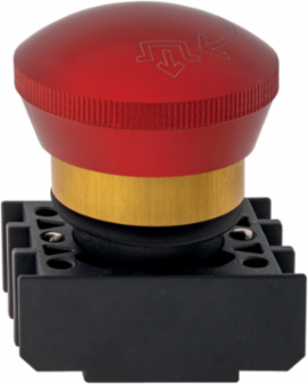

Schmersal 101021009 Emergency-Stop Pushbutton, Round, 22.3 mm, IP65, Aluminium
- MPN: 101021009
- PPN: SCM-101021009
CAD
$70.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Emergency-Stop Pushbutton, Round, 22.3 mm, IP65, Aluminium
Specifications
Key Specifications
| Height | 29 mm |
|---|
Electrical data
| Switching frequency | 600 /h |
|---|
Mechanical data - Dimensions
| Height | 29 mm |
|---|---|
| Mounting diameter | 22.3 mm |
| Thickness of the front panel, maximum | 6 mm |
| Diameter of cap | 38.5 mm |
|---|---|
| Thickness, of the front panel, minimum | 1.5 mm |
General data - Features
| Safety functions | Yes |
|---|---|
| External snap mechanism | Yes |
| Fully insulated | Yes |
| Snap-action mechanism integrated | No |
|---|---|
| Latching | Yes |
General data
| Standards | EN ISO 13850 |
|---|---|
| Design | Round |
| Colour of the operating element | Red |
| Versions | Pushbutton |
|---|---|
| Material of the operators | Aluminium |
| Gross weight | 72 g |
Ambient conditions
| Degree of protection | IP65 |
|---|---|
| Restistance to shock | 30 g / 18 ms |
| Ambient temperature | -25 ... +80 °C |
|---|
Mechanical data
| Unlocking | roatation draw unlocking |
|---|---|
| Actuating stroke | 5 mm |
| Tightening torque of the screw | 0.6 Nm |
| Mechanical life, minimum | 100,000 Operations |
|---|---|
| Mounting | mounting flange |
Approvals - Standards
| Certificates | cULus | CCC |
|---|
