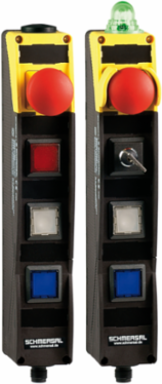

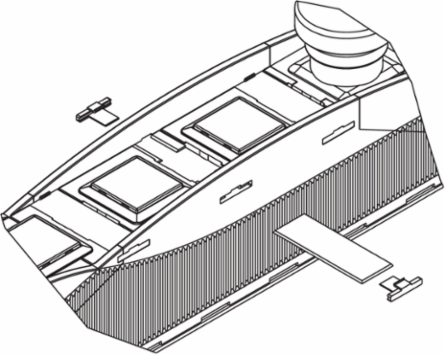

Schmersal 103015447 BDF200-FB-NH-LT Emergency Stop Pushbutton, 24 VDC, Height 69 mm, Width 40 mm
- MPN: 103015447
- PPN: SCM-103015447
CAD
$1057.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
BDF200-FB-NH-LT Emergency Stop Pushbutton, 24 VDC, Height 69 mm, Width 40 mm
Features
- integrated FB interface for connection to the Safety-Field-Box SFB
- Pos 1: E-STOP
- Pos 2: illuminated pushbutton 2875 with changeable colors
- Pos 3: illuminated pushbutton 2875 with changeable colors
- Pos 4: illuminated pushbutton 2875 with changeable colors
- slender shock-proof thermoplastic enclosure
- to be installed at an ergonomic favourable position
- to be fitted to commercial-off-the-shelf aluminium profiles
- E-STOP with electronic OSSDs
Documentation & Downloads
Specifications
Key Specifications
- Width
- 40 mm
Height69 mm
Electrical data
- Current consumption at 24V
- 5 mA
- Rated operating voltage
- 24 VDC
- Required rated short-circuit current
- 100 A
- Utilisation category DC-12
- 0.25 A
- Utilisation category DC-13
- 0.25 A
No-load supply current I35 mA
Operating current150 mA | 600 mA
Utilisation category DC-1224 VDC
Utilisation category DC-1324 VDC
Inputs, Switching thresholds−3 V … 5 V (Low) | 15 V … 30 V (High)

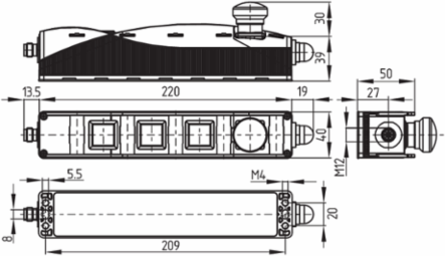

Mechanical data - Dimensions
- Width
- 40 mm
- Length x Width x Height
- Depth: 233.5 - 252.5 mm (without and with indicator lamp)
Height69 mm
Ambient conditions - Insulation values
- Rated insulation voltage U
- 32 VDC
- Overvoltage category
- III
Rated impulse withstand voltage U0.8 kV
Degree of pollution3
General data - Features
- Serial diagnostics
- No
- Indicator lamp
- No
Field box interfaceJa
Safety functionsYes
General data
- Standards
- EN ISO 13849-1 | EN ISO 13850 | EN IEC 60947-5-1 | EN IEC 60947-5-5 | EN IEC 61508
- Terminal (mechanical)

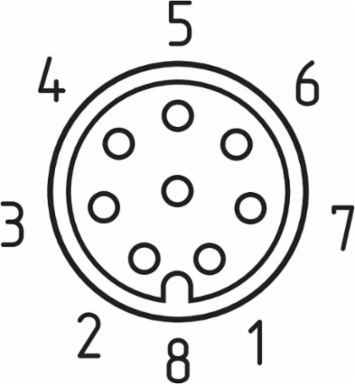

- Connector plug M12, 8-pole, A-coded
- Gross weight
- 280 g
- Duration of risk, maximum
- 100 ms
- Positions used, position 2
- Illuminated pushbutton, color exchangeable
- Positions used, position 4
- Illuminated pushbutton, color exchangeable
Climatic stressIEC 60947-5-5
Enclosure materialPlastic, glass-fibre reinforced thermoplastic, self-extinguishing
Reaction time, maximum50 ms
Positions used, position 1Emergency stop pushbutton
Positions used, position 3Illuminated pushbutton; color exchangeable
Safety classification
- Standards
- EN ISO 13849-1 | EN IEC 61508
- Category
- 4
- Note (PFH-value)
- up to max. 5,000 switching cycles/year
- Mission time
- 20 Year(s)
Performance Level, up toe
PFH value2.89 x 10⁻¹⁰ /h
Safety Integrity Level (SIL), suitable for applications in3
Electrical data - Safety digital outputs
- Rated operating current (safety outputs)
- 250 mA
- Voltage drop U
- 1 V
Design of control elementsshort-circuit proof, p-type
Leakage current I0.5 mA
Ambient conditions
- Degree of protection
- IP64
- Storage and transport temperature, minimum
- -25 °C
- Resistance to vibrations
- 10 … 150 Hz, amplitude 0.35 mm / 5 g
- Protection class
- III
Ambient temperature-25 ... +65 °C
Storage and transport temperature, maximum+85 °C
Restistance to shock30 g / 11 ms
Mechanical data
- Mechanical life, Emergency-Stop button
- 100,000 Operations
Mechanical life, Command devices1,000,000 Operations
Approvals - Standards
- Certificates
- TÜV | cULus
