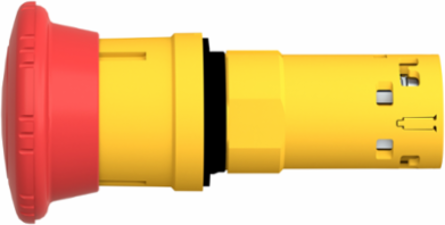

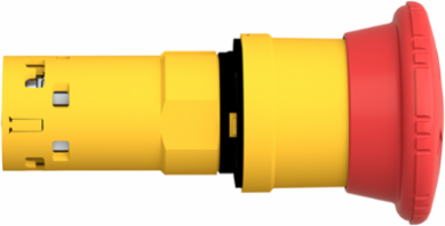

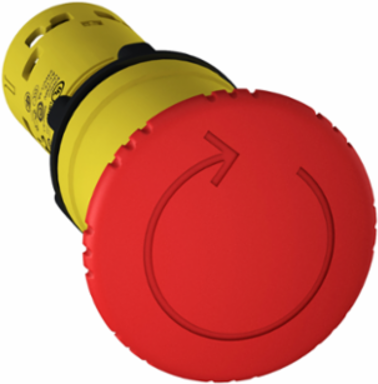

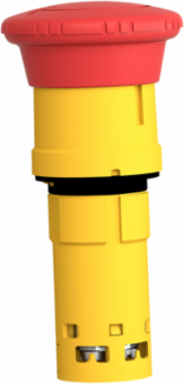

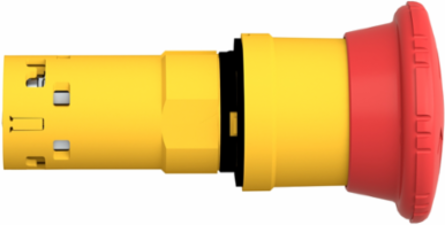

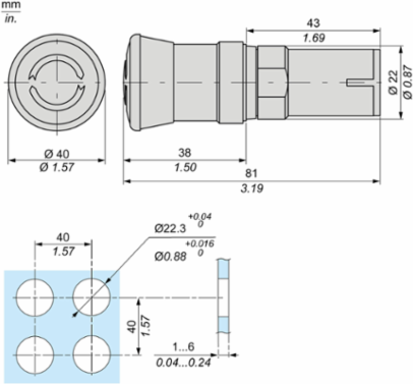

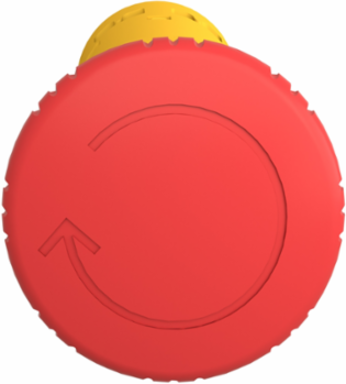

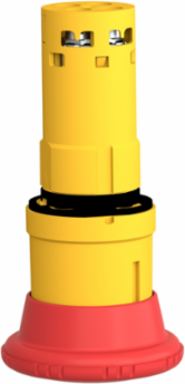

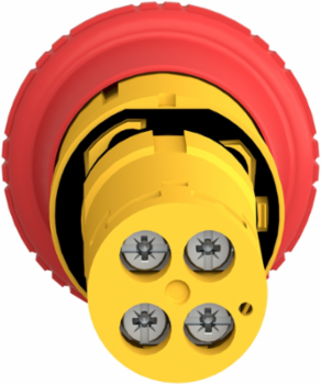

Schneider Electric XB7NS8444 Harmony Emergency Stop Pushbutton, 40mm Red Mushroom, IP65, 2NC
- MPN: XB7NS8444
- PPN: SCH-XB7NS8444
CAD
$102.51
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony XB7, emergency stop / shutdown 40mm mushroom head monolithic red push button operates with a latched turn to release mechanism and uses screw-clamp terminals. This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off) is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Features
- Engineered as a complete, single-piece component, this Harmony XB7 emergency stop eliminates the frustrating hassle of assembling separate contact blocks and push-button heads. It mounts directly into any standard 22mm panel cutout with a simple rear locking nut, dramatically reducing installation time for panel builders and ensuring a tight, vibration-resistant fit on heavy machinery.
- Featuring a positive mechanical latching mechanism, the prominent 40mm red mushroom head instantly locks upon actuation to halt dangerous equipment operations safely. The intuitive "turn-to-release" reset function prevents accidental machine restarts, ensuring your automated manufacturing lines fully comply with strict ISO 13850 and IEC 60947-5-5 machine safety protocols.
- Outfitted with two Normally Closed (2 NC) slow-break contacts, this E-stop button is designed to seamlessly integrate into dual-channel safety monitoring systems. This vital electrical redundancy guarantees that even if one circuit path fails, the backup contact will reliably break the control loop, protecting factory operators from hazards and satisfying high-risk machine safety categories.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Indonesia, United States
Physical Attributes
- Cad Overall Depth
- 72 mm
- Cad Overall Width
- 40 mm
Cad Overall Height40 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Durability
- 1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 IEC 60947-5-1 appendix C
- Shape Of Screw Head
- cross JIS No 1, cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
- Terminals Description Iso N°1
- (11-12)NC, (21-22)NC, (11-12)NC, (21-22)NC
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.1320233163
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.4 kg CO2 eq., 0.4058568995
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Contact Operation
- snap action
- Contacts Usage
- standard
- Electrical Reliability
- λ < 5 x 10exp(-7) 17 V 5 mA IEC 60947-5-4
- Fixing Mode
- fixing nut beneath head 2-2.4 N.m
- Mounting Diameter
- 22 mm
- Positive Opening
- with IEC 60947-5-1 appendix K
- Product Or Component Type
- emergency stop push-button
- Range Of Product
- Harmony XB7
- Returnability
- Yes
- Shape Of Signaling Unit Head
- round
- Software Version
- v5.9.4
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
- Type Of Operator
- latching
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Harmony XB7, mushroom head monolithic red emergency stop push button operates with a latched turn to release mechanism and uses screw-clamp terminals. This emergency stop easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections.It has a double insulated plastic bezel
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; ID
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
- Recyclability Potential In %
- 19
- [Ui] Rated Insulation Voltage
- 250 V 3)IEC 60947-1
- Cap/Operator Or Lens Colour
- red
- Short-circuit Protection
- 4 A cartridge fuse gG IEC 60947-5-1
- Package Weight(Lbs)
- 48.5 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Fixing Center>= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm>= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm
Certificate AgencyGOST, CCC
Carbon Footprint Of The Distribution Phase [A4]0.0063421555, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0000711284, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]0.1 kg CO2 eq., 0.074912
Local Publishable Date2026-03-26
Stocking FlagY
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2312043EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Compatibility CodeXB7
Contacts Type And Composition2 NC
Device Short NameXB7
Electrical Shock Protection Classclass II conforming to IEC 60536
Mechanical Durability100000 cycles

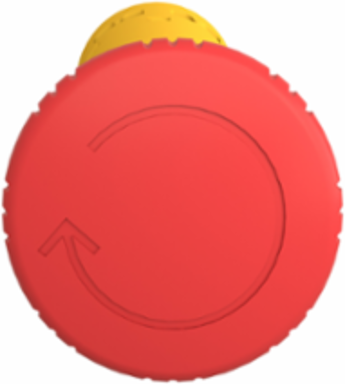

Operator Profilered mushroom Ø 40 mm, unmarked
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTH
Resetturn to release
Sale Per Indivisible Quantity10
Shock Resistance15 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Sustainable PackagingNo
Total Lifecycle Carbon Footprint0.6 kg CO2 eq.
Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Pep CodeENVPEP2312043EN
Pep Verification Date2023-12-20
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
[Ie] Rated Operational Current0.1 A 250 V, DC-13, R300 IEC 60947-5-10.22 A 125 V, DC-13, R300 IEC 60947-5-10.75 A 240 V, AC-15, C300 IEC 60947-5-11.5 A 120 V, AC-15, C300 IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage4 kV IEC 60947-1

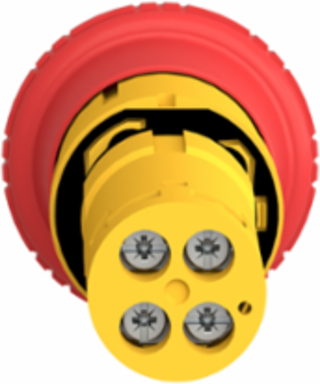

Connections - Terminalsscrew clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end IEC 60947-1
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536509033
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Nema Degree Of Protection
- UL type 3/12NEMA 12 UL 50, NEMA 3 UL 50
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2312043EN
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2312043EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint0.6192054997
Environmental DisclosureENVPEP2312043EN
Ip Degree Of ProtectionIP20 IEC 60529 rear face)IP65 IEC 60529 front face)
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-12-20
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- emergency stop push-button
Range Of ProductHarmony XB7
ETIM
- ETIM 8
- EC002034
ETIM 9EC002034
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- monolithic product
