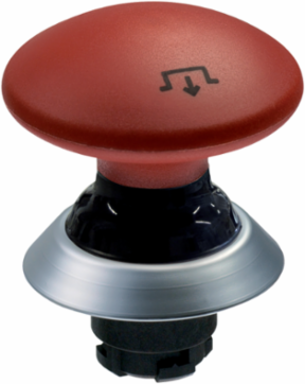

Schmersal 101177170 Emergency Stop Latching Pushbutton 22.3 mm Mounting Diameter, IP67|IP69K
Schmersal 101177170 Emergency Stop Latching Pushbutton 22.3 mm Mounting Diameter, IP67|IP69K
- MPN: 101177170
- PPN: SCM-101177170
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$77.54/ EA
Description
Emergency Stop Latching Pushbutton 22.3 mm Mounting Diameter, IP67|IP69K
Features
- Emergency stop latching pushbutton
- with latching
Specifications
Electrical data
- Number of contact elements, maximum
- 2

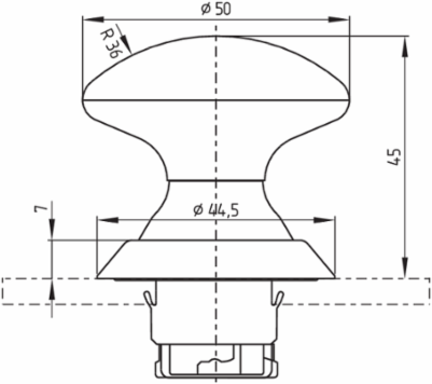

Mechanical data - Dimensions
- Height
- 45 mm
- Mounting diameter
- 22.3 mm
- Thickness of the front panel, maximum
- 6 mm
diameters for the actuating heads50 mm
Thickness, of the front panel, minimum1.5 mm
Spacing50 x 50 mm
General data - Features
- Emergency-Stop button
- Yes
- Safety functions
- Yes
- Latching
- Yes
Mounting flangeYes
Snap-action mechanism integratedYes
Fully insulatedYes
General data
- Standards
- EN IEC 60947-5-1 | EN IEC 60947-1
- Design
- Integrated jump mechanism
- Sealing type
- Membrane | Lip gaskets
- Material of the front ring
- ABS, chrome-plated
- Colour of the operating element
- Red
- Colour of the bellows
- Black
VersionsEmergency stop pushbutton
Installation conditions (mechanical)arbitrarily
Material of the operatorsABS
Material of the bellowsSilicone
Colour of the front ringSilver
Gross weight50 g
Ambient conditions
- Degree of protection
- IP67 | IP69K
- Resistance to vibrations
- 10 - 150 Hz (0.5 mm / 5 g)
Ambient temperature-25 ... +80 °C
Restistance to shock50 g
Mechanical data
- Unlocking
- Draw unlocking
- Actuating force, approx.
- 2 N
- Tightening torque of the screw
- 0.6 Nm
Mechanical life, minimum100,000 Operations
MountingMounting flange EFM
Specifications
- Height
- 45 mm
Approvals - Standards
- Certificates
- BG | cULus | IPA
Downloads
