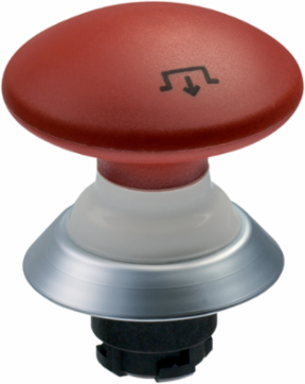

Schmersal 101163587 Emergency Stop Latching Pushbutton, 50x50 mm, IP67/IP69K, ABS Material
Schmersal 101163587 Emergency Stop Latching Pushbutton, 50x50 mm, IP67/IP69K, ABS Material
- MPN: 101163587
- PPN: SCM-101163587
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$74.63/ EA
Features
- Emergency stop latching pushbutton
- with latching
Specifications
Electrical data
- Number of contact elements, maximum
- 2

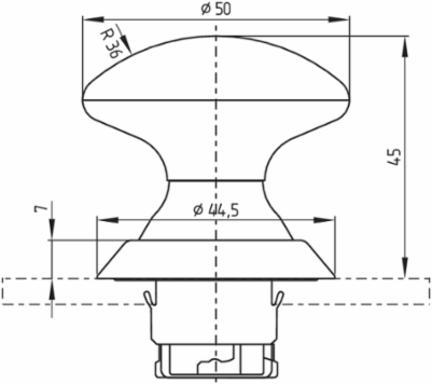

Mechanical data - Dimensions
- Height
- 45 mm
- Mounting diameter
- 22.3 mm
- Thickness of the front panel, maximum
- 6 mm
diameters for the actuating heads50 mm
Thickness, of the front panel, minimum1.5 mm
Spacing50 x 50 mm
General data - Features
- Emergency-Stop button
- Yes
- Safety functions
- Yes
- Latching
- Yes
Mounting flangeYes
External snap mechanismYes
Fully insulatedYes
General data
- Standards
- EN IEC 60947-5-1 | EN IEC 60947-1
- Design
- External jump mechanism
- Sealing type
- Membrane | Lip gaskets
- Material of the front ring
- ABS, chrome-plated
- Colour of the operating element
- Red
- Colour of the bellows
- White
VersionsEmergency stop pushbutton
Installation conditions (mechanical)arbitrarily
Material of the operatorsABS
Material of the bellowsSilicone
Colour of the front ringSilver
Gross weight50 g
Ambient conditions
- Degree of protection
- IP67 | IP69K
- Resistance to vibrations
- 10 - 150 Hz (0.5 mm / 5 g)
Ambient temperature-25 ... +80 °C
Restistance to shock50 g
Mechanical data
- Unlocking
- Draw unlocking
- Actuating force, approx.
- 2 N
- Tightening torque of the screw
- 0.6 Nm
Mechanical life, minimum100,000 Operations
MountingMounting flange ELM
Specifications
- Height
- 45 mm
Approvals - Standards
- Certificates
- BG | cULus | CCC | IPA
