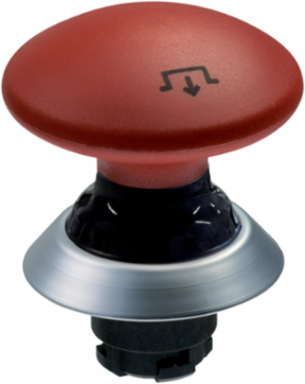

Schmersal 101163594 NDR Emergency Stop Latching Pushbutton 22.3 mm Mounting, IP67, Red

MPN: 101163594
PPN: SCM-101163594

$77.54

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

NDR Emergency Stop Latching Pushbutton 22.3 mm Mounting, IP67, Red

Features

Emergency stop latching pushbutton
with latching

Documentation & Downloads

Specifications

Key Specifications

Height	45 mm

Electrical data

Number of contact elements, maximum	2

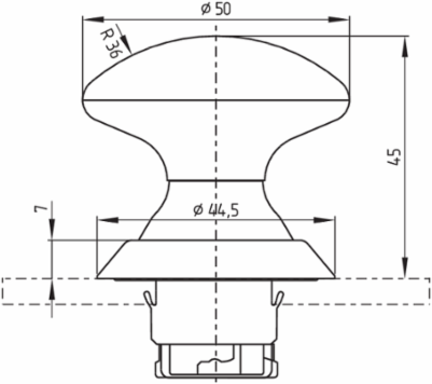

Mechanical data - Dimensions

Height	45 mm
Mounting diameter	22.3 mm
Thickness of the front panel, maximum	6 mm

diameters for the actuating heads	50 mm
Thickness, of the front panel, minimum	1.5 mm
Spacing	50 x 50 mm

General data - Features

Emergency-Stop button	Yes
Safety functions	Yes
Latching	Yes

Mounting flange	Yes
External snap mechanism	Yes
Fully insulated	Yes

General data

Standards	EN IEC 60947-5-1 \| EN IEC 60947-1
Design	External jump mechanism
Sealing type	Membrane \| Lip gaskets
Material of the front ring	ABS, chrome-plated
Colour of the operating element	Red
Colour of the bellows	Black

Versions	Emergency stop pushbutton
Installation conditions (mechanical)	arbitrarily
Material of the operators	ABS
Material of the bellows	Silicone
Colour of the front ring	Silver
Gross weight	50 g
