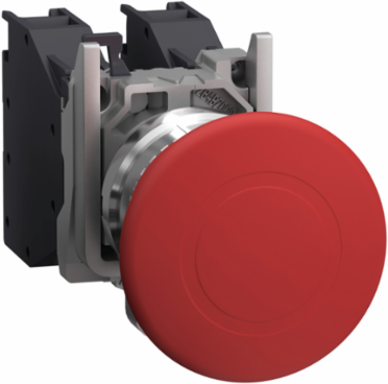

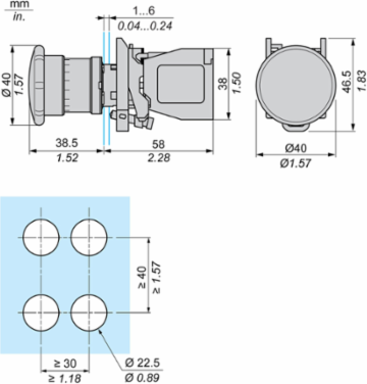

Schneider Electric XB4BT845GEX Emergency Stop Pushbutton, 22mm Metal, Push-Pull, IP65, 1NO + 1NC
- MPN: XB4BT845GEX
- PPN: SCH-XB4BT845GEX
CAD
$190.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This product is part of the Harmony XB4 - ATEX D range, an offer of Ø 22mm metal pushbuttons, switches and pilot lights for explosive atmosphere. This emergency switching off pusbutton comes with a mushroom head. This offer is specially designed for explosive atmosphere. It is designed for used in dust zone 21-22 and gas zone 1-2. It comes with trigger action and mechanical latching and push-pull operation. It has 1 NO and 1 NC contact with slow-break operation. This is a metal emergency stop pushbutton with a 40mm diameter mushroom head. This offer is specially designed for applications in Oil and Gas industry as well as Food and beverage, car gas stations etc. It is an IP65 rated product and comes with INERIS 04ATEX9004U certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB4 range offers innovative features for simple and efficient use. The Harmony XB4 - ATEX is the most comprehensive explosive Atmospheres range covering most applications.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, United States
Depth96.5 mm
Physical Attributes
- Embedding Depth
- 58 mm
Important Information Attributes
- Fixing Center
- >= 30 x 40 mm support panel) 1-6 mm, >= 30 x 40 mm support panel) 1-6 mm, >= 30 x 40 mm support panel) 1-6 mm>= 30 x 40 mm support panel) 1-6 mm, >= 30 x 40 mm support panel) 1-6 mm, >= 30 x 40 mm support panel) 1-6 mm
- [Ie] Rated Operational Current
- 1.9 A 380 V, AC, A600 IEC 60947-5-1, 3 A 240 V, AC, A600 IEC 60947-5-1, 6 A 120 V, AC, A600 IEC 60947-5-1, 0.27 A 250 V, DC, Q300 IEC 60947-5-1, 0.55 A 125 V, DC, Q300 IEC 60947-5-1, 2.87 A 24 V, DC, Q300 IEC 60947-5-1
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0558719368, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0152014229, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 0.2 kg CO2 eq., 0.2171747412
- Local Publishable Date
- 2026-03-26
- Future Imap
- 113.6
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2201004EN
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Average Percentage Of Recycled Plastic Content
- 16 %
- Compatibility Code
- XB4
- Contacts Type And Composition
- 1 NO + 1 NC
- Device Short Name
- XB4
- Fixing Collar Material
- zamak
- Mechanical Durability
- 5000000 cycles
- Operator Profile
- red mushroom Ø 40 mm
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Repair Index
- A
- Range Of Product
- Harmony XB4
- Returnability
- Yes
- Shape Of Signaling Unit Head
- round
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 3 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Illuminated push button provides an ergonomic and visual interface for controlling your machines by switch ON/OFF electrical contact and provide visual signaling for 10 years with 0.69W power consumption at 70% use rate and product is adhering with standard EN/IEC 60947-5-1.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; CN
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; CN
- Recyclability Potential, In %
- 65
- Width Nominal
- 46.2 mm
- [Ith] Conventional Free Air Thermal Current
- 10 A IEC 60947-5-1
- Nbr. Of Units In Pkg.
- 1
- Product Repair Index - Dam Document Id
- XB4BS8442-ENVREPAIR-A-EN
- Warranty (In Months)
- 18
- Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 0.256
MarkingII 2 GD, Ex tb IIIC Db, Ex db eb IIC Gb
Connections - Terminalsscrew clamp terminals, 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, 1 x 2.5 mm² without cable end IEC 60947-1
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.4 kg CO2 eq., 0.3744347826
Carbon Footprint Of The Manufacturing Phase [A1 To A3]2 kg CO2 eq., 1.8951778656
Local Data StatusPublishable
Return IndicatorY
Future Msrp147.07
Stock Policy1
Weee Product Category5
Eoli Availability DisplayYes
Product Repair Index Dam DocXB4BS8442-ENVREPAIR-A-EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Average Percentage Of Recycled Metal Content20 %
Bezel Materialchromium plated metal
Contact Operationslow-break
Contacts Usagestandard
Dust Zonezone 21 - 22
Gas Zonezone 1 - 2
Mounting Diameter22 mm
Positive Openingwith IEC 60947-5-1 appendix K
Product Or Component Typecomplete emergency stop push-button
Protective TreatmentTH
Resetpush-pull
Sale Per Indivisible Quantity1
Software Versionv5.9.4
Tightening Torque0.8-1.2 N.m IEC 60947-1
Type Of Operatortrigger action and mechanical latching
Pep Code"ENVPEP2201004EN"
Pep Verification Date2023-01-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; CN
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; CN
Height Nominal30 mm
Certificate AgencyINERIS 04ATEX9004U
[Ui] Rated Insulation Voltage415 V
Package Weight(Lbs)140.000 g
Take-backNo
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle0.256
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-65 °C, -20-65 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 20 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 2.5578607491
- Environmental Disclosure
- "ENVPEP2201004EN"
- Ip Degree Of Protection
- IP65 IEC 60529
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-01-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2201004EN
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep Code"ENVPEP2201004EN"
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- complete emergency stop push-button
Range Of ProductHarmony XB4
