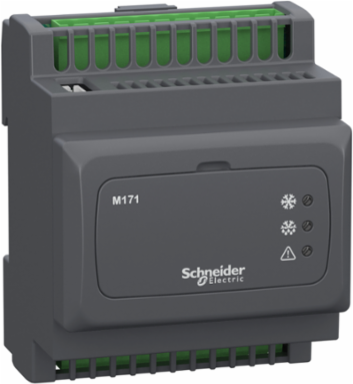

Schneider Electric TM171VEVM4 Modicon M171 EEV Controller with 2 Analogue Inputs, IP20
- MPN: TM171VEVM4
- PPN: SCH-TM171VEVM4
CAD
$226.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Modicon M171 EEV Controller from Schneider Electric is engineered for advanced automation and control applications, making it a valuable asset for various industrial environments. This controller features two analogue inputs, allowing for precise data acquisition and monitoring, which enhances operational efficiency and process integration. Designed with an IP20 rating, it ensures reliable performance in manageable environmental conditions, fitting seamlessly into existing setups. Ideal for professionals seeking to optimize their control systems, the M171 provides the flexibility and functionality necessary for modern automation tasks.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Italy, United States
Depth61.6 mm
Important Information Attributes
- Sensor Power Supply
- 5-5 V DC, 12-12 V DC
- Carbon Footprint Of The Distribution Phase [A4]
- 0.1115051918043258, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.004696289541949586, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 1 036 kg CO2 eq., 1036.2299940284656
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Service Catalog Item
- Finished good
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1710004EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1929
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Contacts Usage
- volt-free contacts
- Marking
- CE
- Number Of Port
- 1 Modbus serial link - RS485
- Product Or Component Type
- controller
- Returnability
- Yes
- Sustainable Packaging
- No
- Updatability
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2024-01
- Pcr Version
- PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To control simple and compact machines for HVAC applications (e.g. fans and water pumps) for a 100% of the time for 10 years.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 2190
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Width Nominal
- 70.2 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8537109170
Input/Output Number8 total)4 analog input2 digital input, 2 digital output
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.5 kg CO2 eq., 0.5216254315182522
Carbon Footprint Of The Manufacturing Phase [A1 To A3]10 kg CO2 eq., 10.41812723959728
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Product Kit IdentifierN
Display TypeWithout Display
Mounting SupportDIN rail
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductModicon M171
Software Versionv6.2.5-6
Total Lifecycle Carbon Footprint1 047 kg CO2 eq.
UpgradeabilityYes
Pep CodeENVPEP1710004EN
Pep Verification Date2025-11-25
Psr VersionNo PSR
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Italy, IT
Energy Model - Use [B6]Electricity origin
Height Nominal87 mm
[Us] Rated Supply Voltage24 V +/- 10 % AC/DC
Package Weight(Lbs)310.000 g
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 1047.2859481809273
- Circularity Profile
- ENVEOLI1710004EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-11-25
- Psr Version
- No PSR
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation-5-50 °C-5-50 °C
Environmental DisclosureENVPEP1710004EN
Ip Degree Of ProtectionIP20
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1710004EN
Pcr VersionPCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- controller
- Upgradeability
- Yes
Range Of ProductModicon M171
ETIM
- ETIM 8
- EC001422
ETIM 9EC001422
Output Attributes
- Discrete Output Number
- 1 open collector, 1 SPST
Input Attributes
- Analogue Input Number
- 2 analog input NTC2 analog input Pt 1000 4...20 mA or 0...5 V or 0...10 V
- Discrete Input Number
- 2
Discrete Input Logicsink or source (positive/negative)
